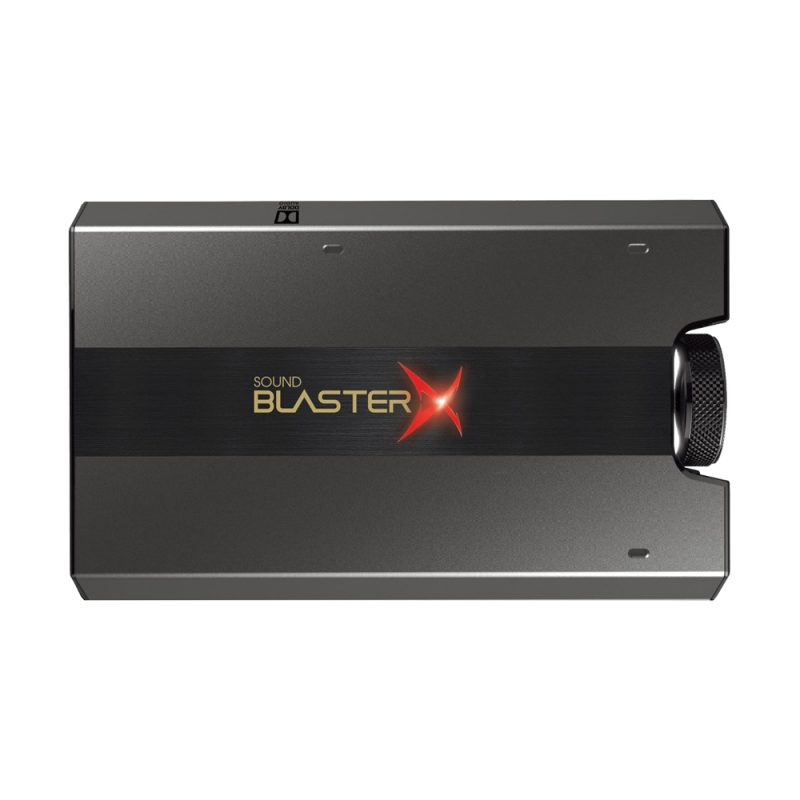

SOUND CARD CREATIVE USB BLASTER X5

BLASTER X5

Headphone Output Power (Unbalanced)
0.98 Vrms (60 mW) @ 16Ω, 1.47 Vrms (65 mW) @ 33Ω, 4.11 Vrms (112 mW) @ 150Ω, 4.14 Vrms (52 mW) @ 330Ω, 4.15 Vrms (29 mW) @ 600Ω
Headphone Output Power (Balanced)
1.18 Vrms (86 mW) @ 16Ω, 1.90 Vrms (109 mW) @ 33Ω, 5.86 Vrms (313 mW) @ 150Ω, 8.25 Vrms (206 mW) @ 330Ω, 8.28 Vrms (114 mW) @ 600Ω
Remote Control (BLE)
Android devices, iOS devices
Headphone Amp
16–600Ω
Dynamic Range (DNR)
130 dB
Audio Technology
Sound Blaster Acoustic Engine
Headphone Amp
16–600Ω
Max Channel Output
Stereo
Audio Technologies
CrystalVoice
Scout Mode
DAC
2 x Cirrus Logic CS43198 high-resolution DAC, PCM 32-bit / 384 kHz playback, DoP 64, 128 support, DSD 64, 128, 256 support, THD: -115 dB, DNR: 130 dB
ADC
DNR: 114 dB, THD+N: -105 dB

Mac OS X v10.5 and above, Windows 10 Ver 1703, Windows 11

Connectivity Options (Main)
1 x TOSLINK Optical In
1 x TOSLINK Optical Out
1 x RCA Line-in
1 x RCA Line-out
1 x 3.5 mm Headphones-out (Unbalanced)
1 x 4.4 mm Headphones-out (Balanced)
1 x 3.5 mm Mic-in
1 x USB-C port of PC/Mac/PS4/PS5
1 x USB-A Host Audio-out port
 • Bluetooth

• 1 x Sound Blaster X5
• 1 x USB-C to USB-A Cable (1.5m / 4.9 ft)
• 1 x Optical Cable (1.5m / 4.9 ft)
• 1 x 3.5 mm to RCA Stereo Cable (2m / 6.6 ft)
