คำอธิบาย
| Brand | SEGOTEP |

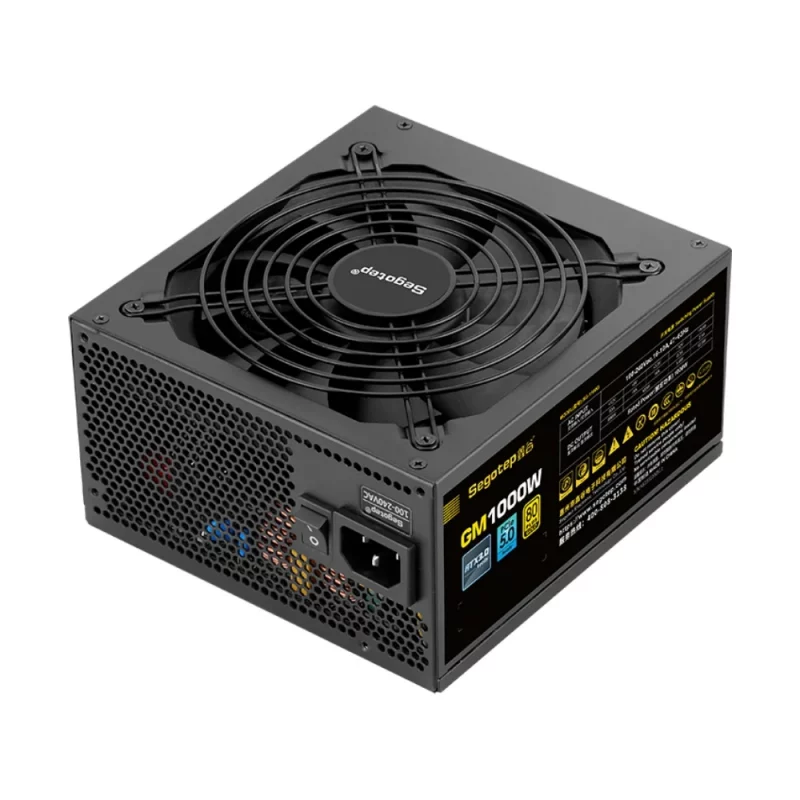

| Model | GM1000W |
| Type | ATX 3.0 |
| Power Capacity | 1000W |
| Input Voltage | N/A |
| Input Current | N/A |
| Input Frequency Range | N/A |
| Operating Temperature | N/A |
| Fan Size | 135mm |
| Efficiency | 92.85% ( 50%Load 230V ) |
| MTBF | N/A |
| Safety Regulation | CCC certification CE certification |
| Protection | OVP/OPP/SPD/UVP/SCP/OCP/OTP |
| Certification | 80 PLUS GOLD |
| Modular | Full Modular |
| ATX Main Connector | (20+4 Pin) x 1 Connector |
| CPU Power Connector | (4+4 Pin) x 2 Connector |
| PCIe Power Connector | (6+2 Pin) x 6 Connector ( PCIe5.0 16 pin ) x 1 Connector (12VHPWR) |
| SATA Power Connector | 12 Connector |
| Peripheral Power Connector | 6 Connector |
| Floppy Power Connector | None |
| RGB Power Connector | None |
| PSU Length | 160mm |
| Dimension | (W x D x H) : 15.00 x 16.00 x 8.50 cm |
| Net Weight | 3.20 KG |
| Package Dimension | (W x D x H) : 22.00 x 32.00 x 11.50 cm |
| Gross Weight | 3.22 KG |
| Volume | 8,096.00 cm3 |
