คำอธิบาย

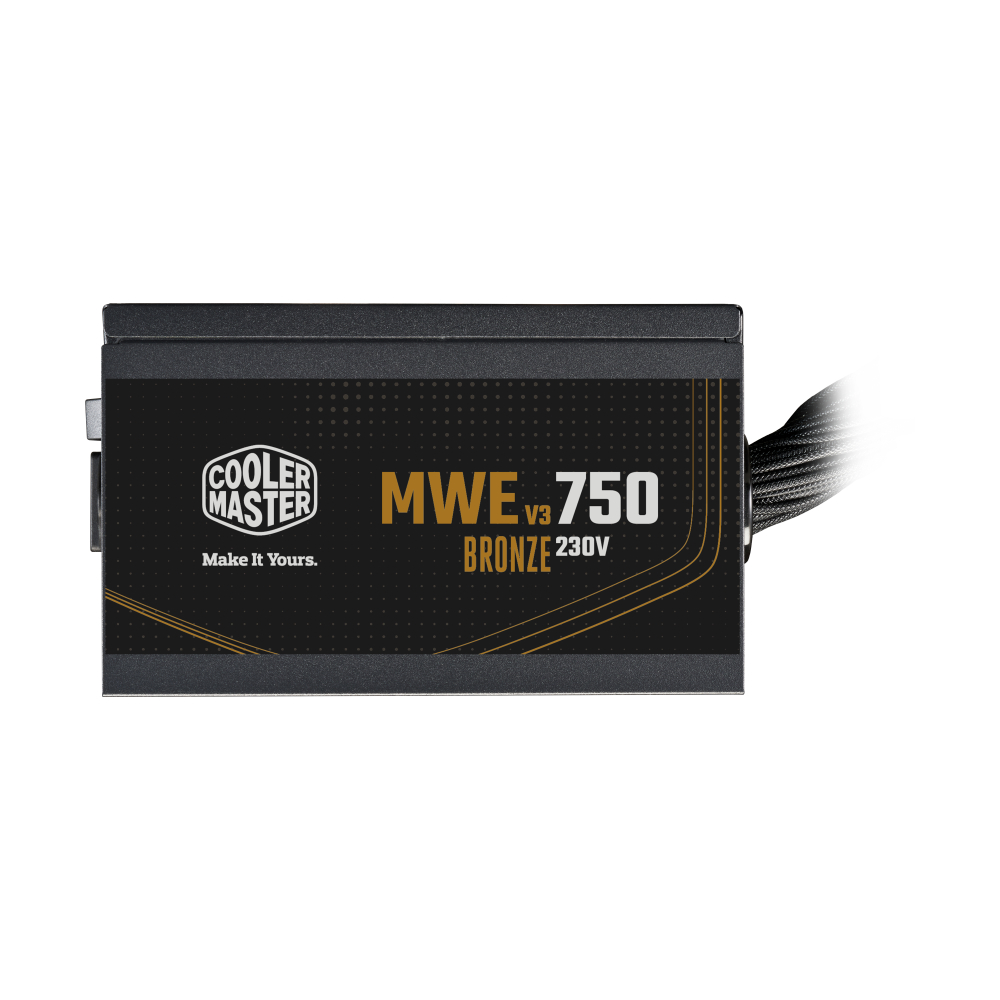

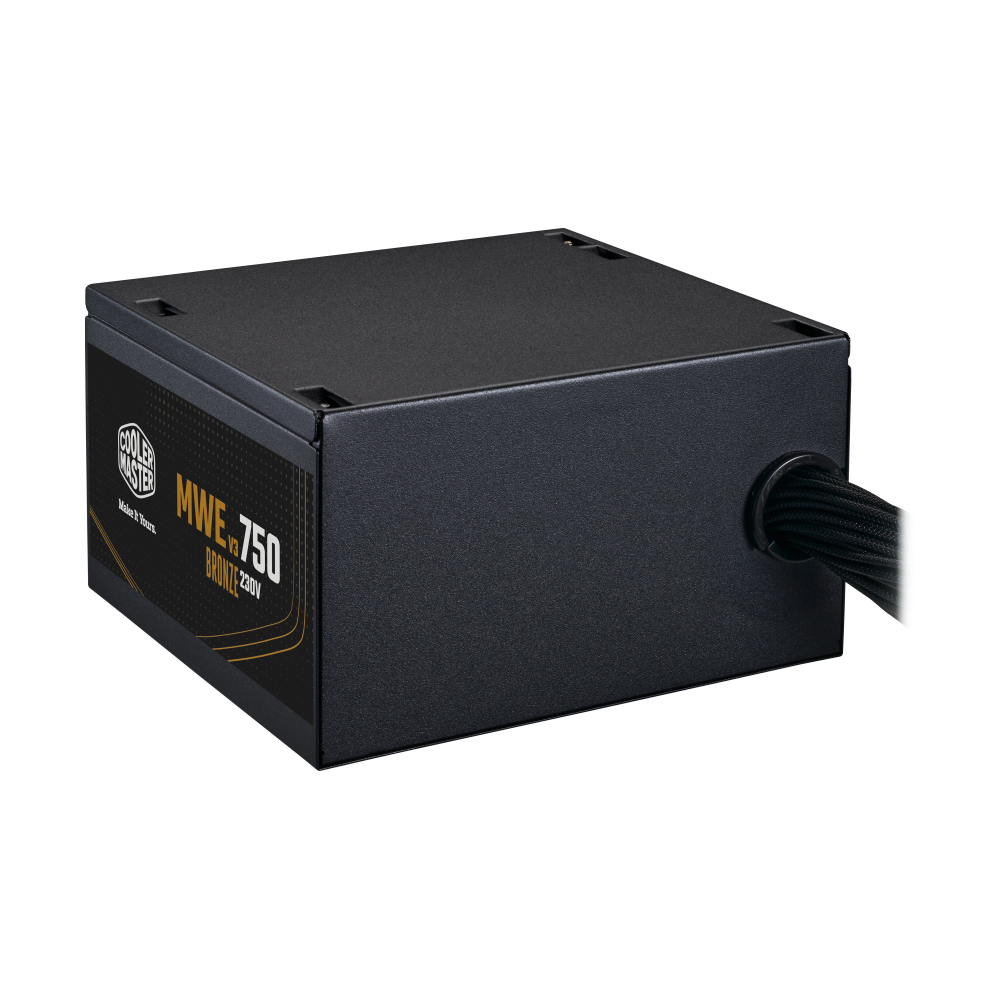

คุณสมบัติ POWER SUPPLY (80+ BRONZE) 750W COOLER MASTER MWE V3 (MPE-7501-ACABW-3BTH)
| แบรนด์ / โมเดล | |
|---|---|
| Brand | COOLER MASTER |
| Model |
MWE V3 (MPE-7501-ACABW-3BTH) |
| ข้อมูลจำเพาะ | |
| Type |
ATX 12V Ver. 3.1 |
| Certification |
80 PLUS Bronze |
| Modular |
Non Modular |
| Efficiency |
≥ 88% @ Typical Load |
| MTBF |
>100,000 hours @ 25°C ambient |
| Operating Temperature |
0 ~ 40°C |
| Safety Regulation |
TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.) |
| Protection |
UVP / OVP / OPP / OTP / SCP |
| การเชื่อมต่อ | |
| ATX Main Connector |
(20+4 Pin) x 1 Connector (500mm) |
| CPU Power Connector |
(4+4 Pin) x 2 Connectors (550+120mm) |
| PCIe Power Connector |
(6+2 Pin) x 4 Connectors (2×500+120mm) |
| SATA Power Connector |
6 Connectors (2×400+150+150mm) |
| Peripheral Power Connector |
3 Connectors (400+150+150mm |
| Floppy Power Connector |
None |
| RGB Power Connector |
None |
| กำลังไฟ | |

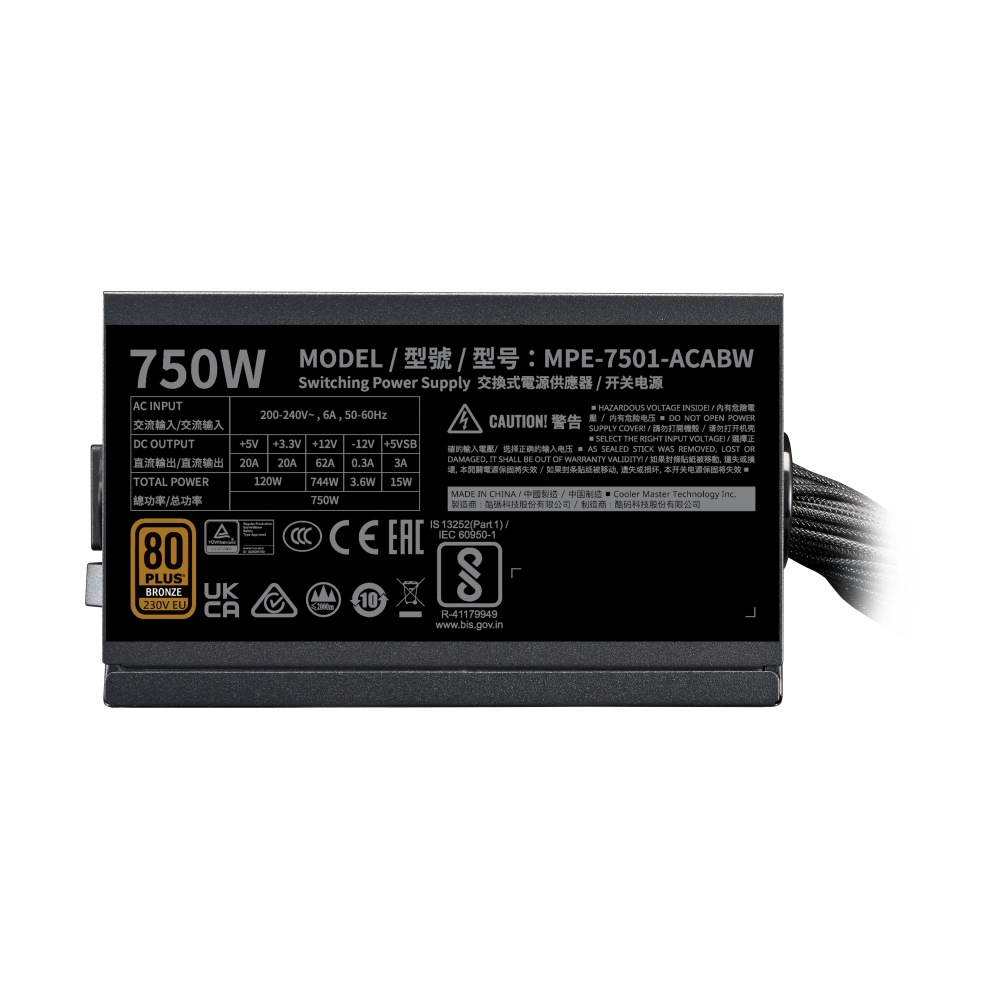

| Power Capacity |
750W |
| Input Voltage |
200 – 240V |
| Input Current |
6A |
| Input Frequency Range |
50 – 60Hz |

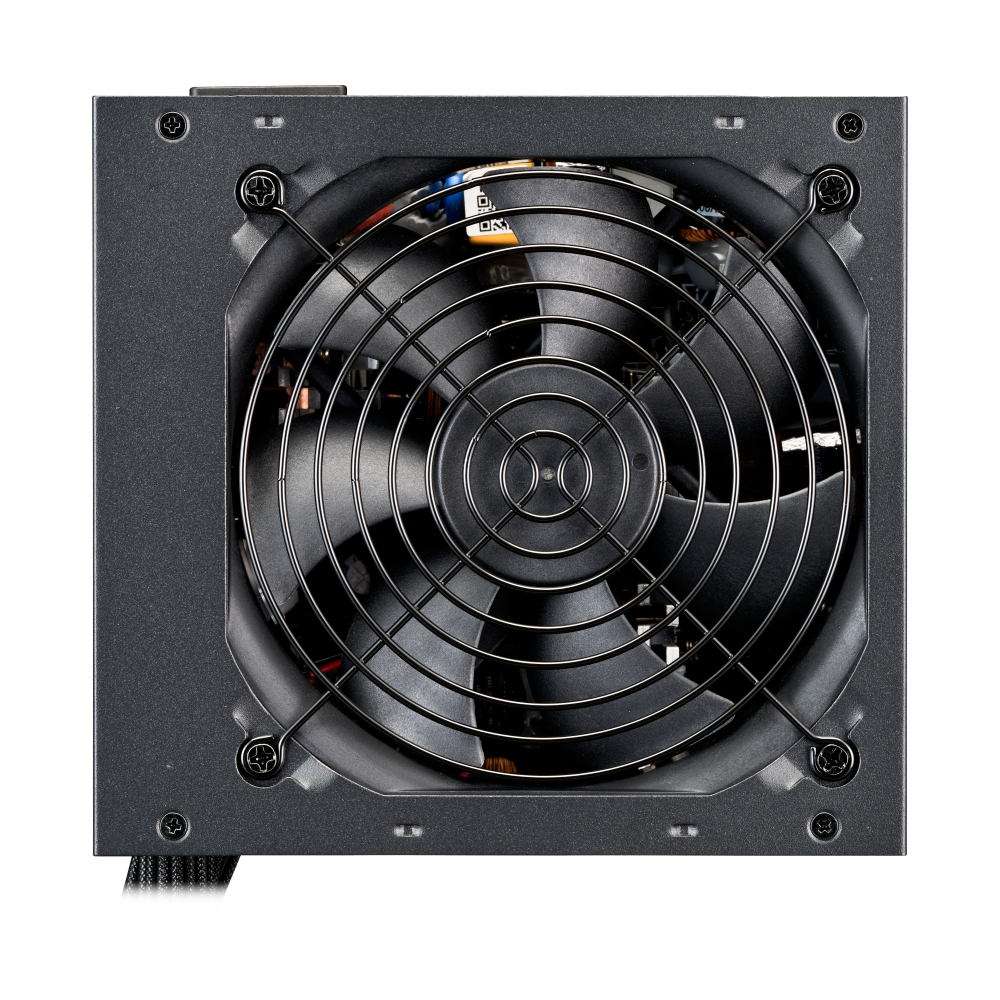

| Fan Size |
120 mm (Bearing : HDB) |
| ข้อมูลทั่วไป | |
| PSU Length |
140 mm |
| Dimension (cm) | (W x L x H) : 15.00 x 14.00 x 8.60 cm |
| Net Weight (kg) | 1.75 kg |
| Package Dimension (cm) | (W x L x H) : 24.50 x 19.00 x 11.00 cm |
| Gross Weight (kg) | 2.15 kg |
| Volume (cm³) | 5,120.50 cm³ |
| Package Contents |
N/A |
| การรับประกัน | |
| warranty | 5Y |
