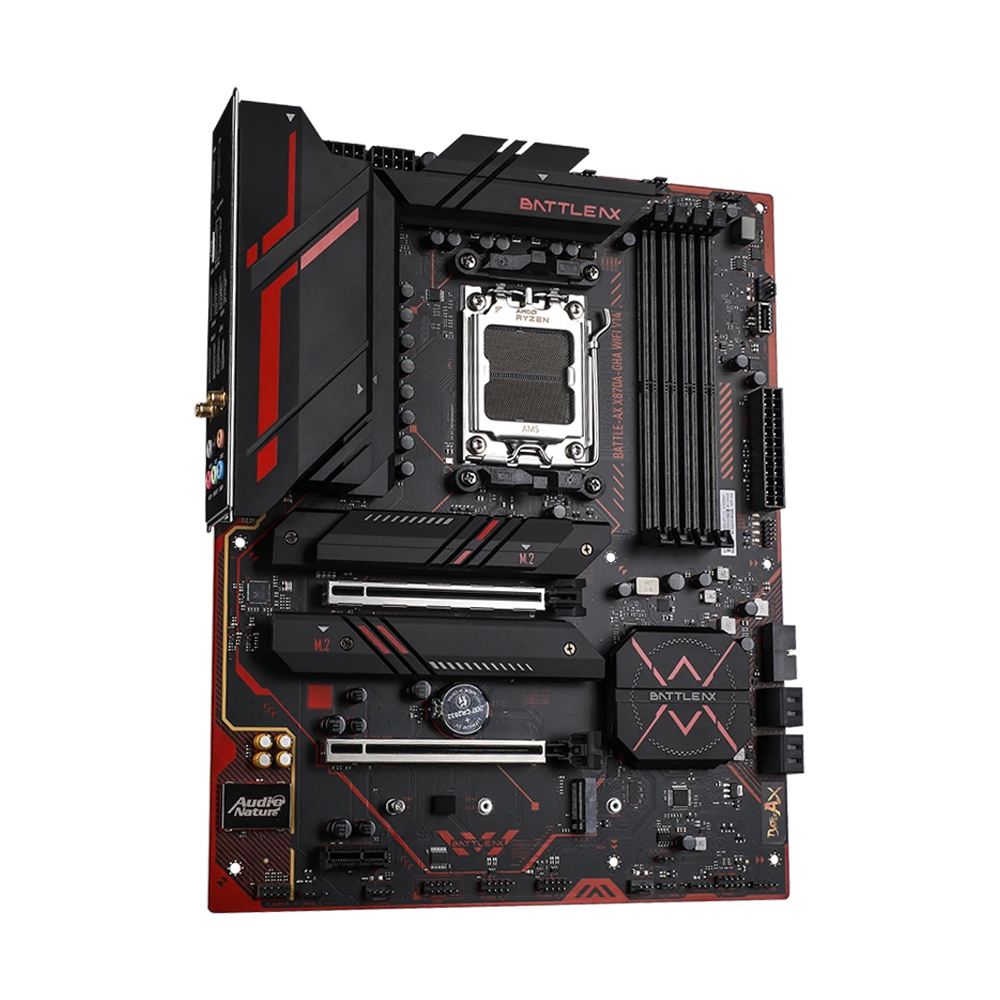

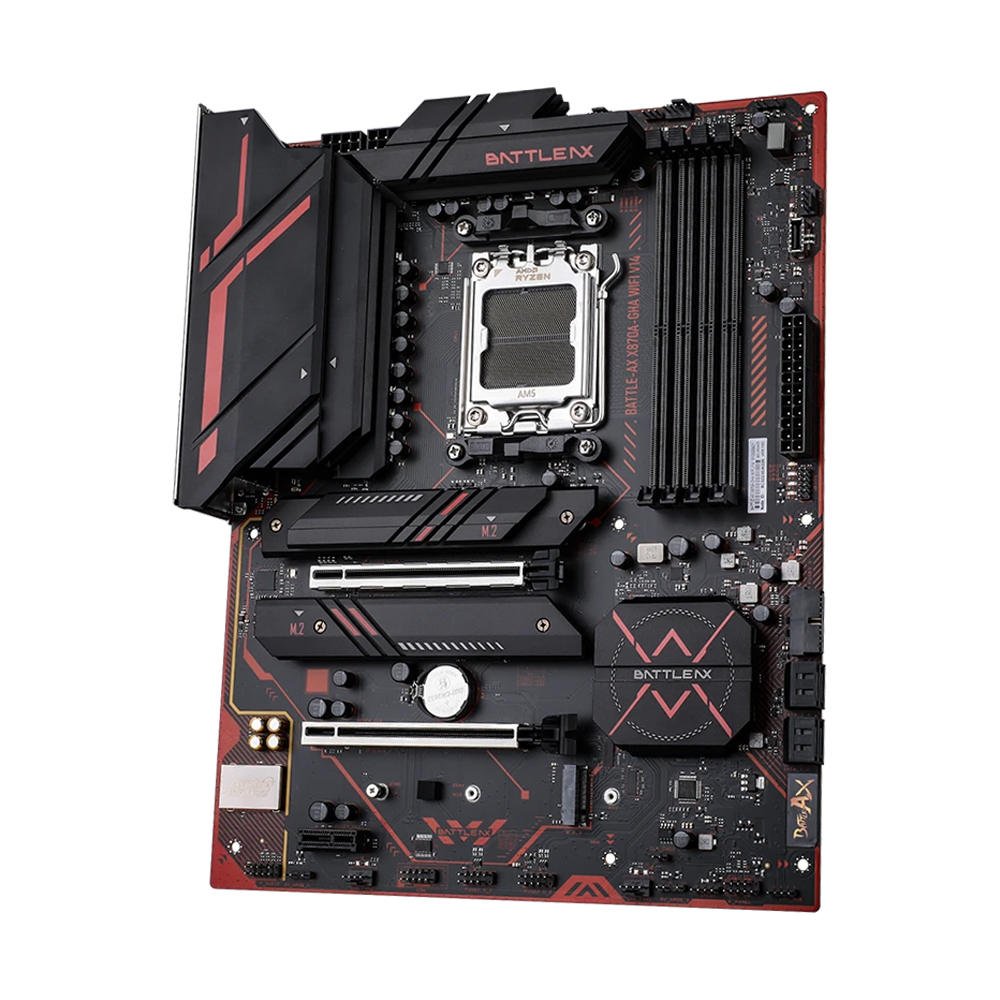

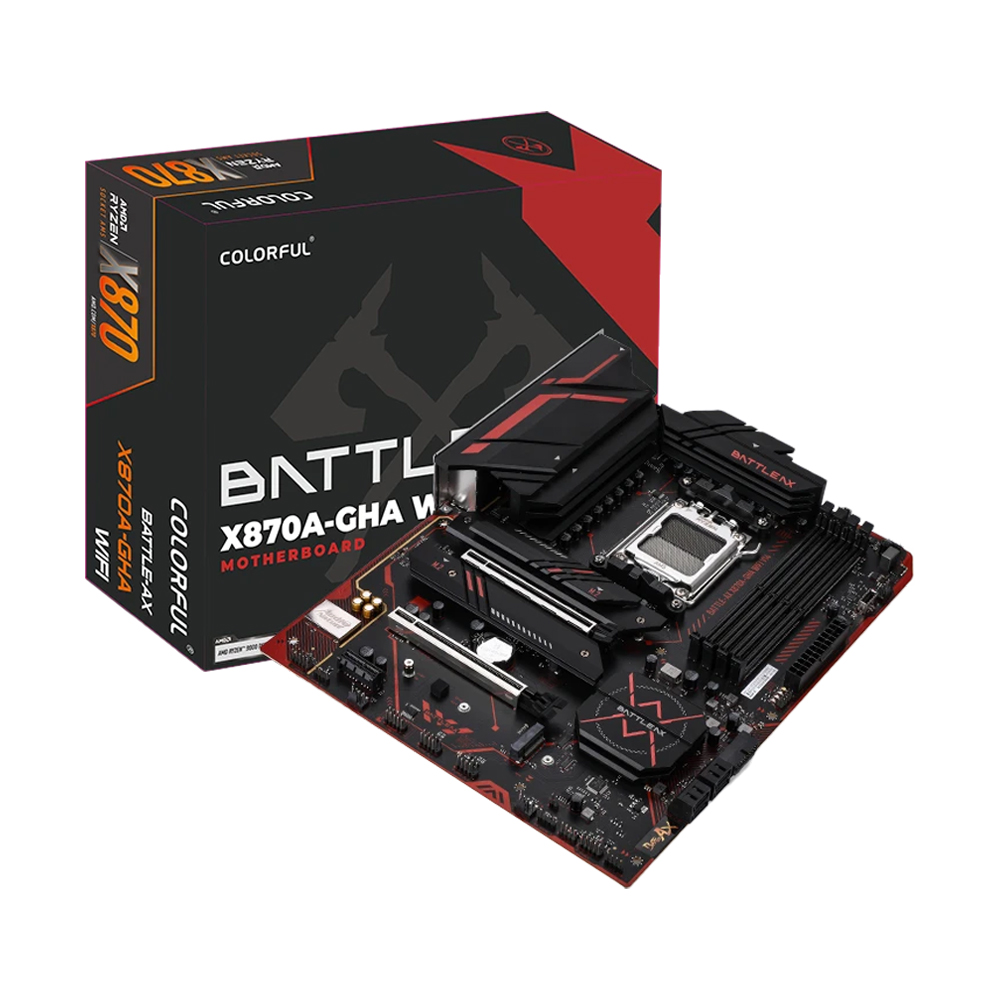

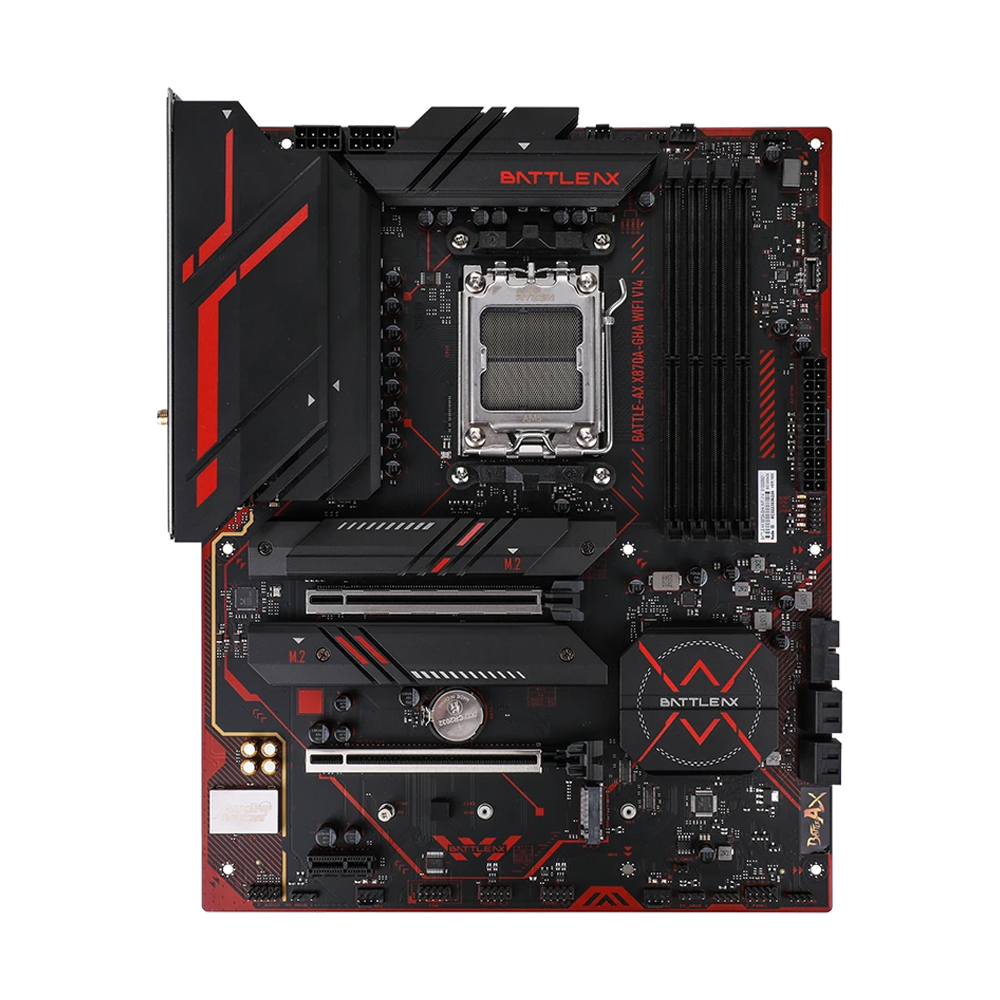

MAINBOARD (AM5) COLORFUL BATTLE-AX X870A-GHA V14 WIFI

BATTLE-AX X870A-GHA V14 WIFI

Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard

(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

AMD

AM5

AMD X870

4 x DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)

– Support DDR5-7600 (OC)7400 (OC)7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
– Support Extreme Memory Profile (XMP) memory technology
– Support EXtended Profiles for Overclocking (EXPO) memory technology
– Supports dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

7600

1 x USB4 Type-C interface (*Supports video output, up to 4K 60Hz resolution)
1 x DP 1.2 interface, up to 4K 60Hz resolution
1 x HDMI 2.0 interface, up to 4K 60Hz resolution

None

Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels

1 x PCIe 5.0 x16 slot
1 x PCIe x16 slot (supports PCIe 4.0 x4 specification)
1 x PCIe 3.0 x1 slot

*When the M.2_3 slot uses an M.2 hard drive, the PCIe 4.0 x4 slot will be blocked

PCIe 5.0

3 x M.2 slots interfaces in total
– M.2_1 slot: supports 2242/2280/22110 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
– M.2_2 slot: supports 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
– M.2_3 slot: supports 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

4 x SATA 6Gb/s hard drive

Supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with M.2 NVMe hard drive devices
Ryzen 9000 series: RAID 0/1/5/10
Ryzen 8000 series: RAID 0/1
Ryzen 7000 series: RAID 0/1/10

*The supported RAID specifications are related to the CPU of the motherboard
*Whether PCIe 5.0 is supported is related to the CPU of the motherboard
*When the M.2_3 slot uses an M.2 hard drive, the PCIe 4.0 x4 slot will be blocked

NVMe

3

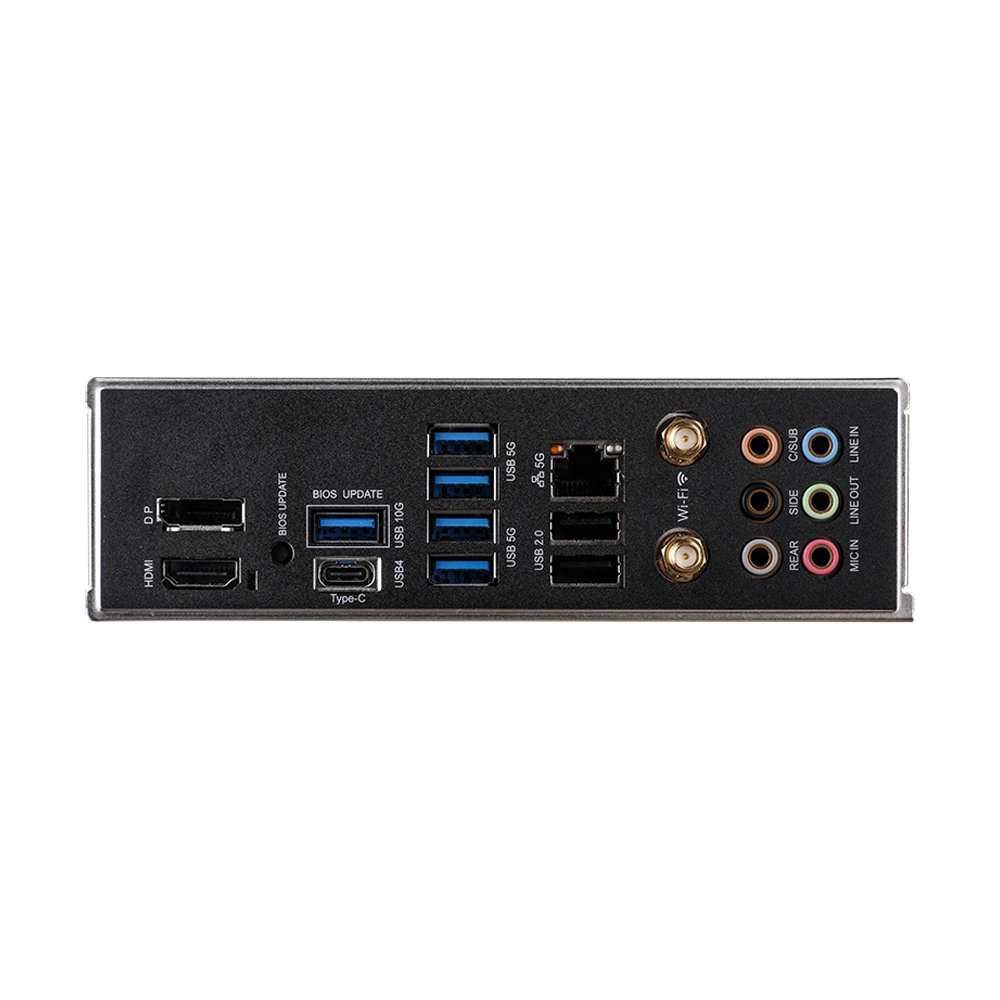

Rear I/O :
2 x USB 2.0 interfaces
4 x USB 3.2 Gen 1 Type-A interfaces
1 x USB 3.2 Gen 2 Type-A interface
1 x USB4 Type-C interface (*Supports video output, up to 4K 60Hz resolution)

Onboard device :
2 x USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A port
1 x USB 3.2 Gen 2 Type-C slot can be expanded 1 USB 3.2 Gen 2 Type-C port

1 x CPU fan pin
3 x System fan pins
1 x Water cooling pump pin
2 x USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A port
1 x USB 3.2 Gen 2 Type-C slot can be expanded 1 USB 3.2 Gen 2 Type-C port
3 x 5V 3-pin ARGB pins
1 x 12V 4-pin RGB pin
1 x Front audio pin
1 x Front panel pin
1 x Speaker pin
1 x Serial port pin
1 x Clear CMOS jumper
1 x BIOS burner pin

2 x USB 2.0 interfaces
4 x USB 3.2 Gen 1 Type-A interfaces
1 x USB 3.2 Gen 2 Type-A interface
1 x USB4 Type-C interface (*Supports video output, up to 4K 60Hz resolution)
1 x DP 1.2 interface, up to 4K 60Hz resolution
1 x HDMI 2.0 interface, up to 4K 60Hz resolution
1 x 5G network interface
2 x Wi-Fi 6 antenna interfaces
6 x Audio interfaces (audio input/audio output/microphone)
1 x BIOS update button

RTL8126-CG 5Gbit network card

AX200 WiFi 6 wireless network card, Bluetooth 5.2

ATX

CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring

256M UEFI, Supports multiple languages

Support S3, S4, network S5 wake-up, support scheduled startup, call startup

N/A

Windows 11

N/A
