| แบรนด์ / โมเดล |
|
| Brand |
ASUS |
| Model |

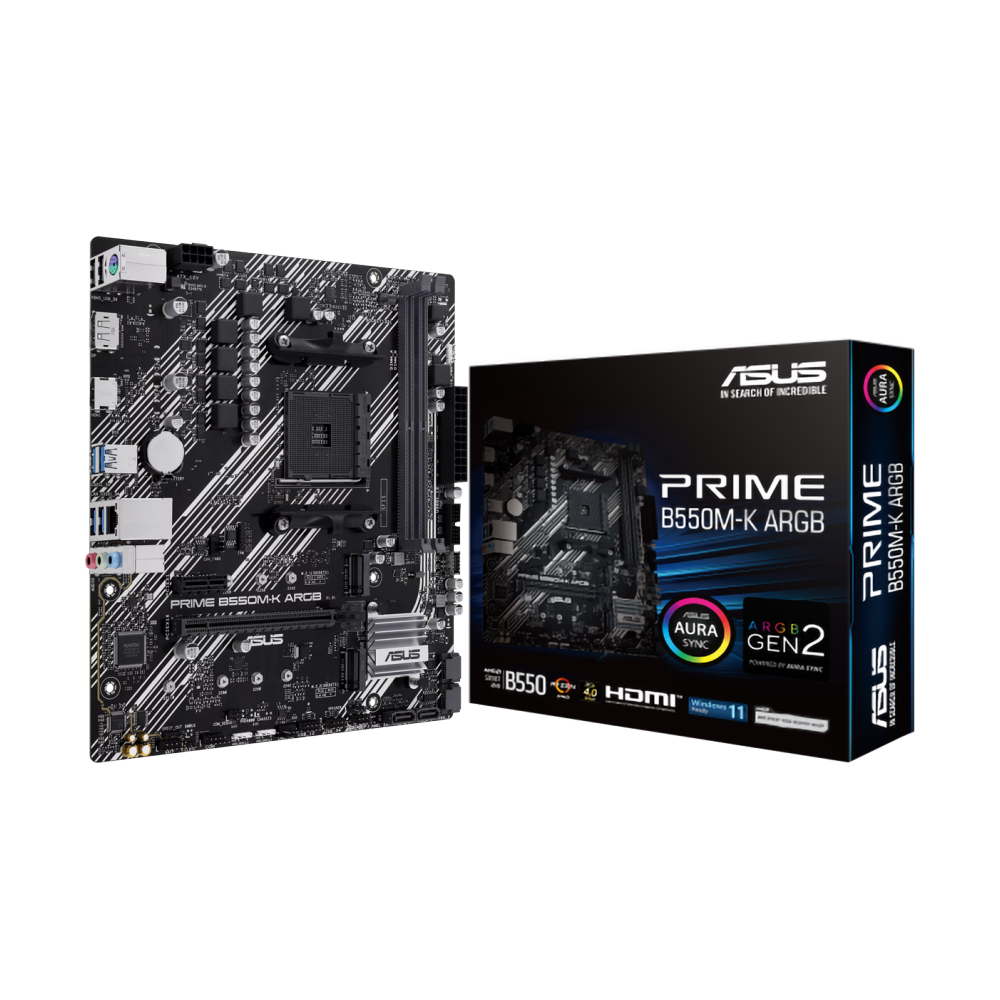

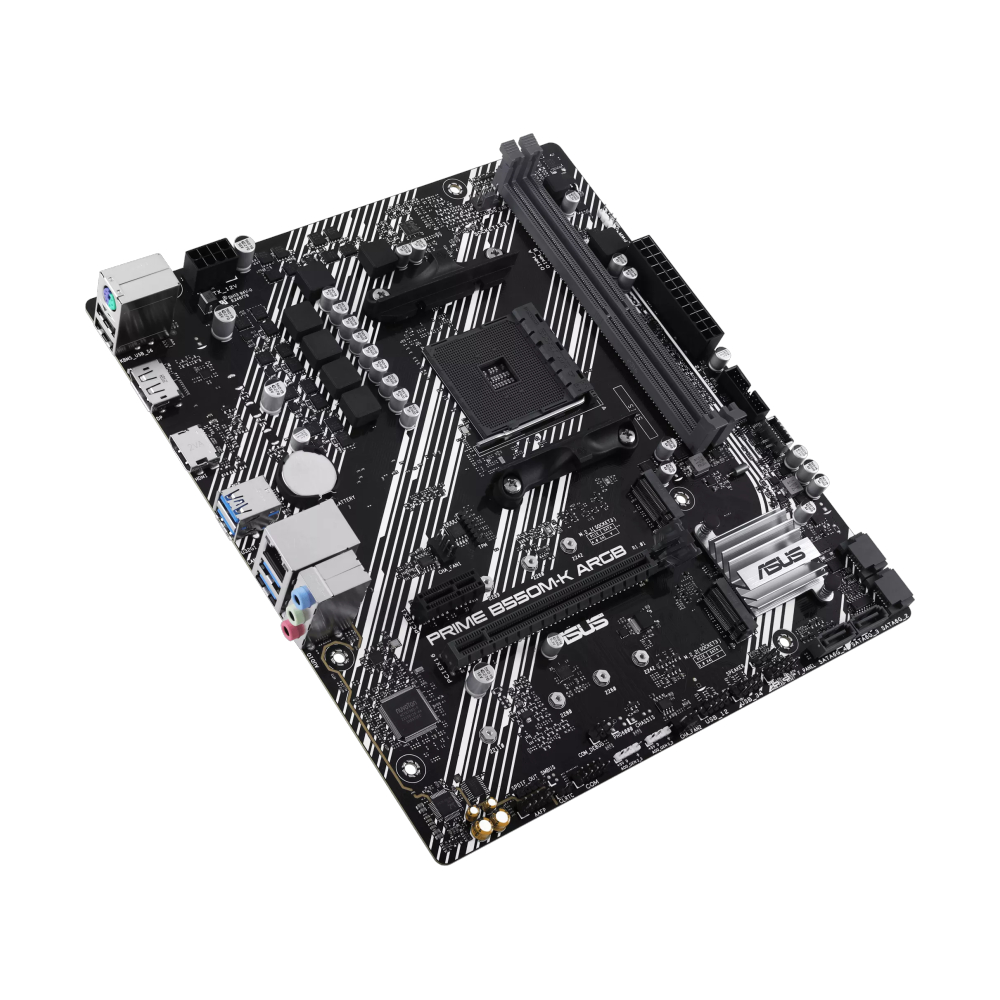

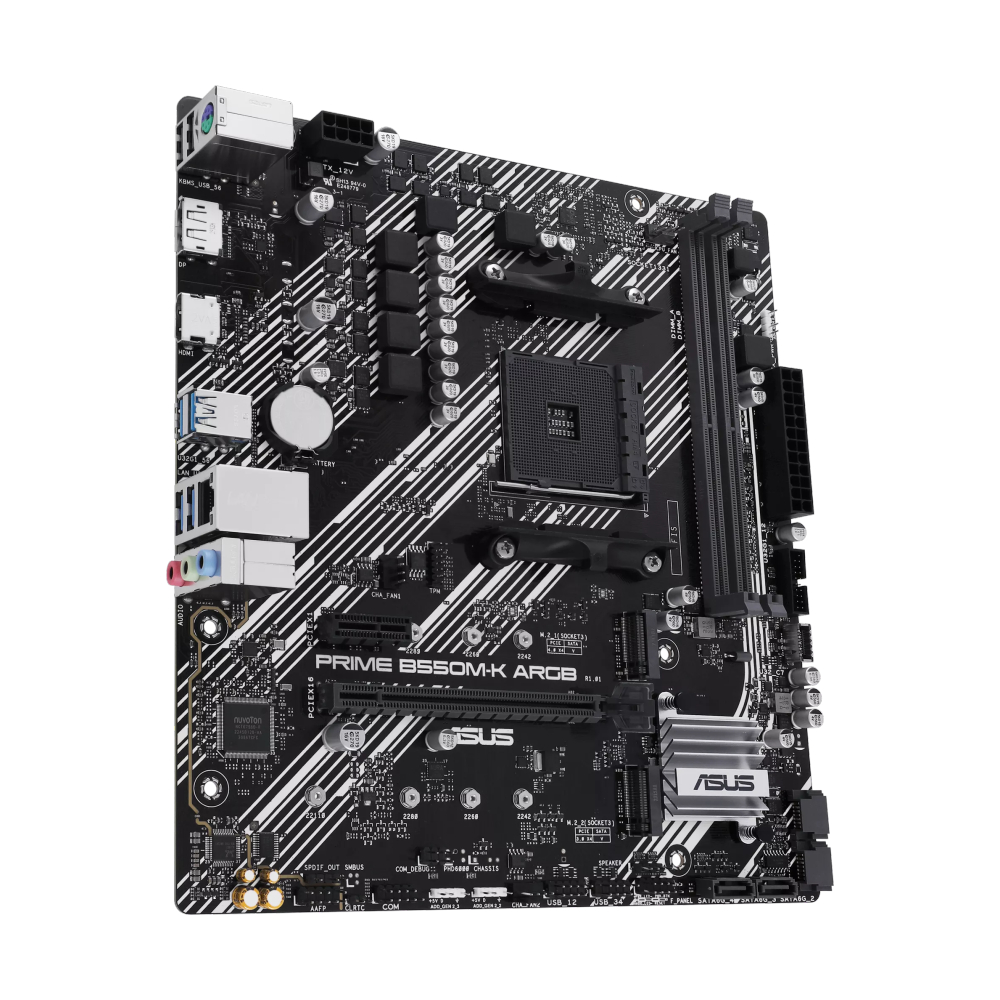

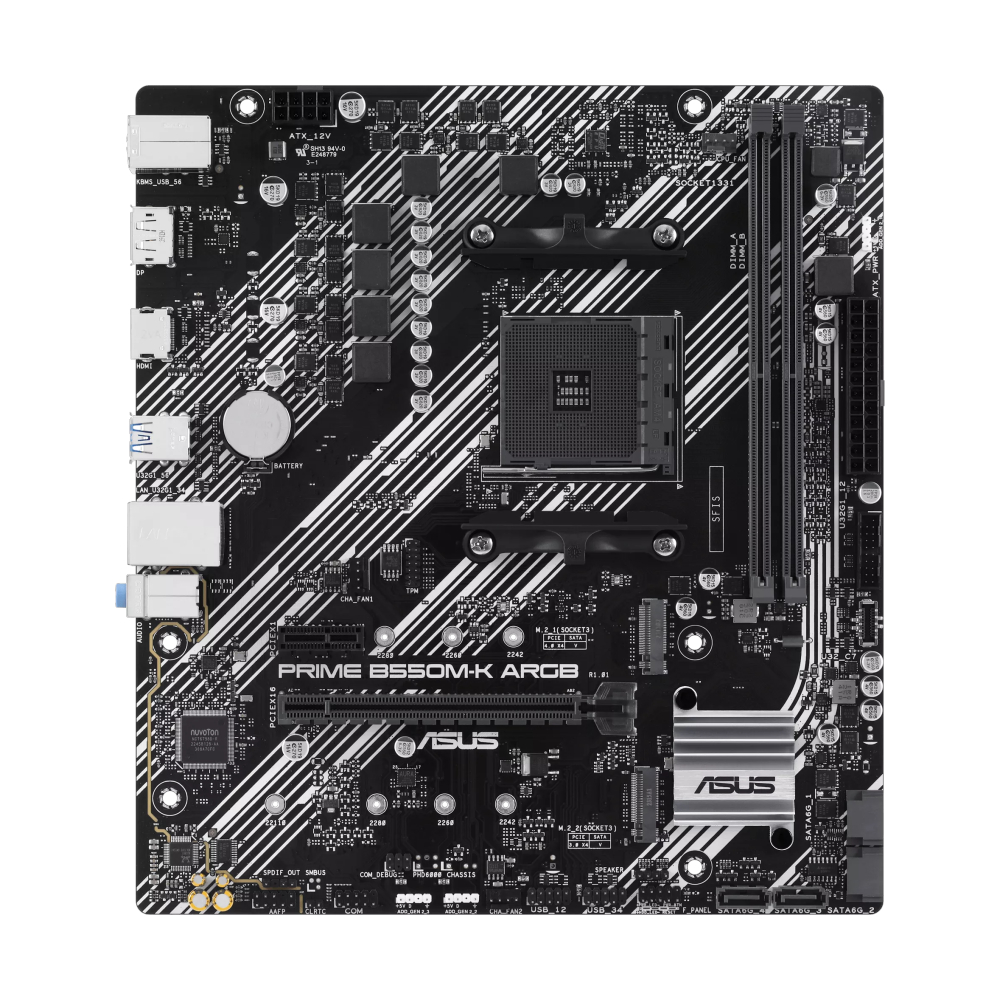

PRIME B550M-K ARGB DDR4
|
|
| ข้อมูลจำเพาะ |
|
| CPU Support |
AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
|
| CPU Brand |
AMD
|
| Socket |
AM4
|
| Chipset |
AMD B550
|
| Memory Support |
2 x DIMM slots, Max. 64GB, DDR4
5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
Dual Channel Memory Architecture
* ECC memory (ECC mode) support varies by CPU.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
|
| Maximum Memory Bus |
5100
|
| Graphics |
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
|
| Multi Graphic Support |
None
|
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|
| Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
|
| Maximum PCIe Version |
PCIe 4.0
|
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
|
| M.2 Storage Type Support |
NVMe, SATA
|
| M.2 Slot |
2
|
| USB |
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
| Internal I/O Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
|

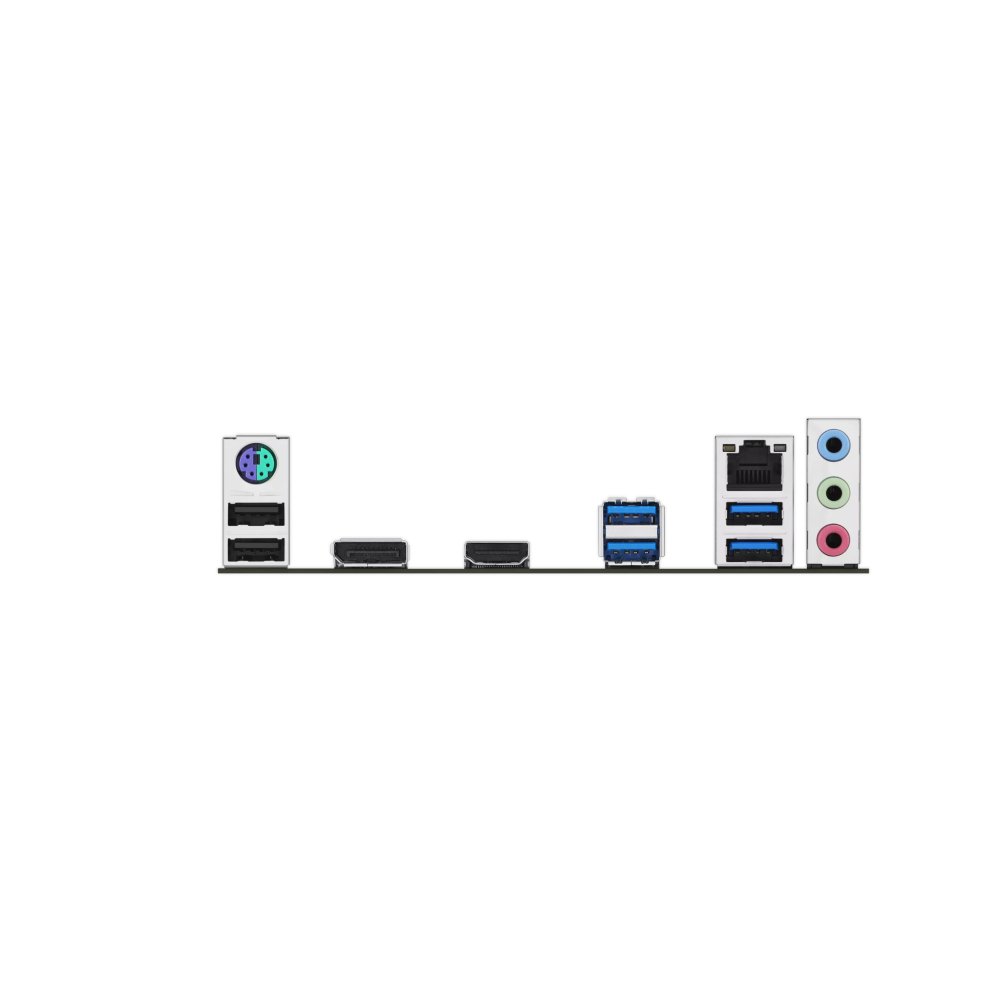

| Back Panel Connectors |
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
|
| LAN |
1 x Realtek 1Gb Ethernet
|
| Wireless Data Network |
None
|
| Special Features |
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
Aura Sync
– Addressable Gen 2 headers
|
| Software Features |
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
– EZ update
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|
| Operating System Support |
Windows® 11, Windows® 10 64-bit
|
|
| การเชื่อมต่อ |
|
| USB |
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
| Back Panel Connectors |
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
|
| LAN |
1 x Realtek 1Gb Ethernet
|
| Wireless Data Network |
None
|
|
| กำลังไฟ |
|
| Internal I/O Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
|
|
| ข้อมูลทั่วไป |
|
| Dimension (cm) |
(W x L x H) : 24.40 x 22.10 x 0.00 cm |
| Package Dimension (cm) |
(W x L x H) : 0.00 x 0.00 x 0.00 cm |
| Net Weight (kg) |
0.00 kg |
| Gross Weight (kg) |
0.00 kg |
| Form Factor |
Micro ATX
|
| H/W Monitoring |
N/A
|
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS
|
| Package Contents |
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x User guide
|
| Volume (cm³) |
0.00 cm³ |
|
| การรับประกัน |
|
| warranty |
3Y |
