| แบรนด์ / โมเดล |
|
| Brand |
COOLER MASTER |
| Model |

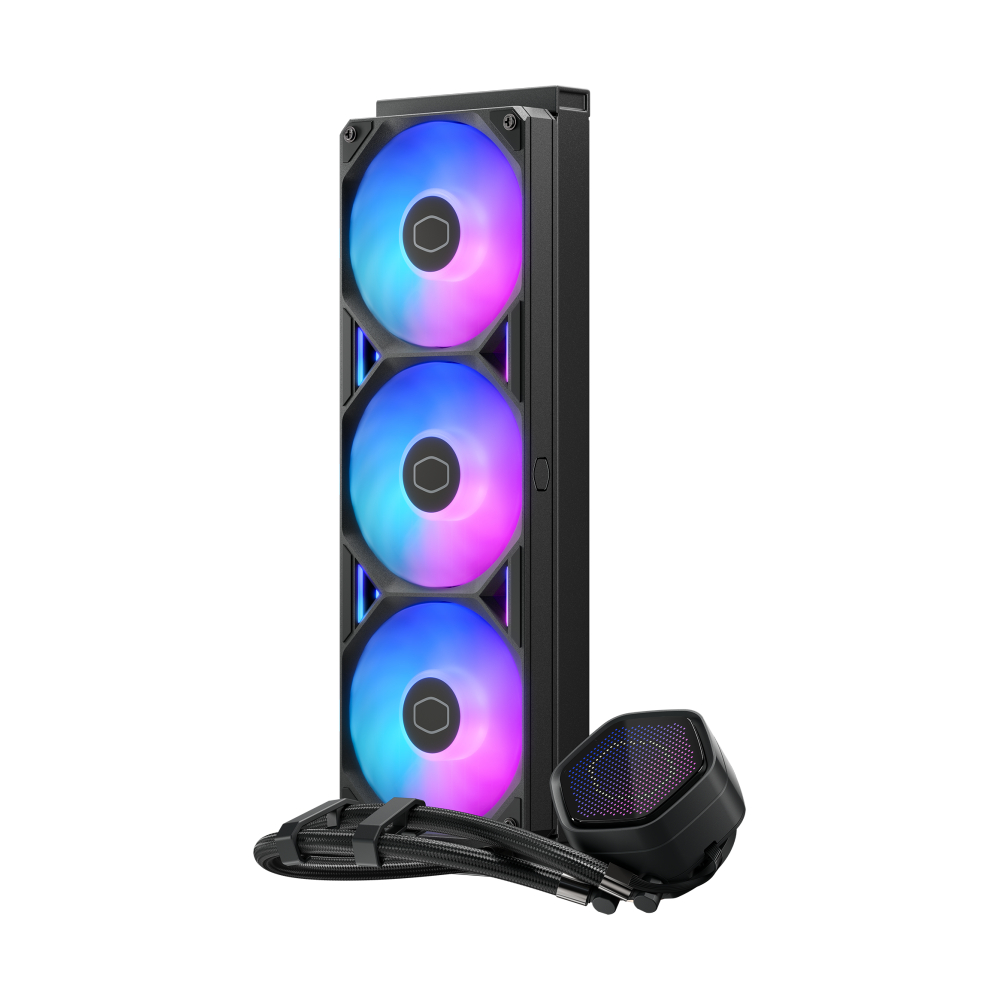

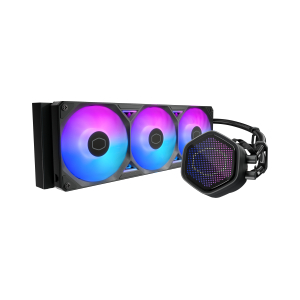

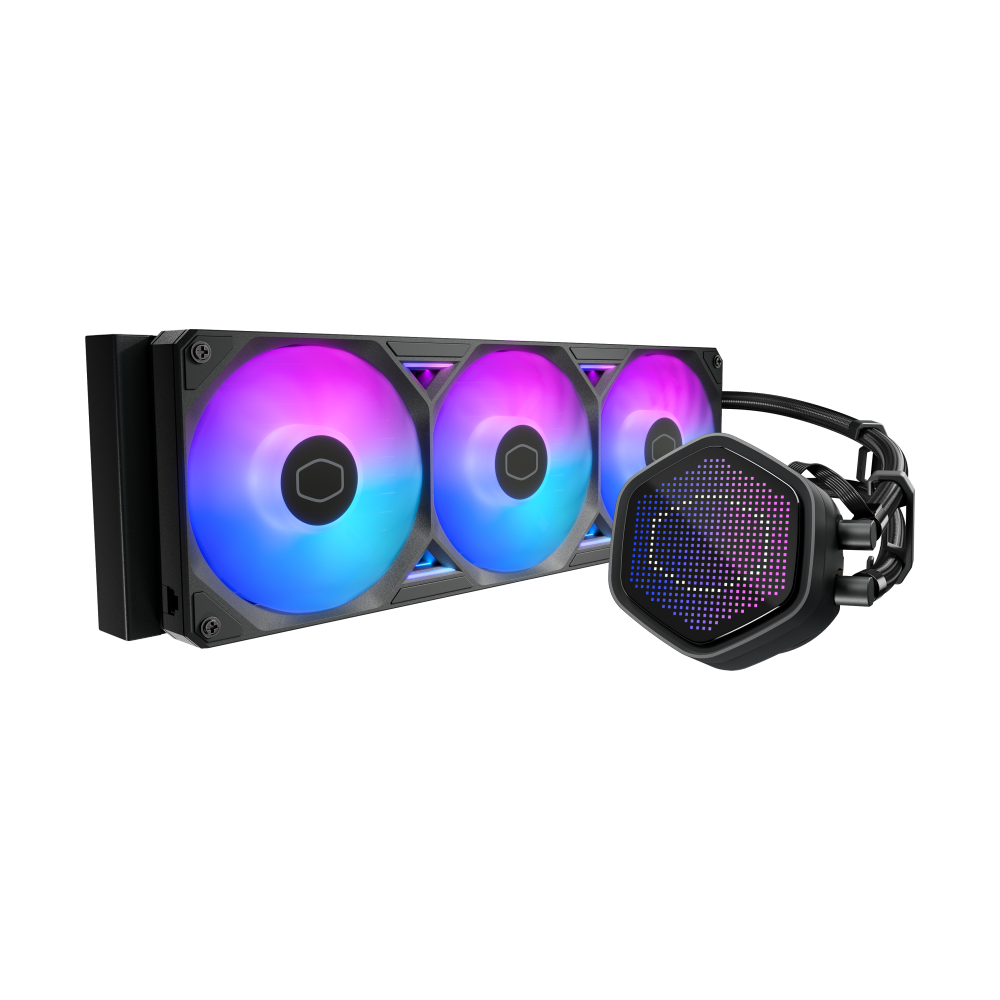

MASTERLIQUID 360 ATMOS II PIXEL LED (MLX-D36M-A25SZ-P1)
|
|
| ข้อมูลจำเพาะ |
|
| CPU Socket Support |
Intel : 1851, 1700, 1200, 1150, 1151, 1155, 1156
AMD : AM5, AM4
|
| Radiator Dimensions |
360 mm
|
| Pump |
Pump
Pump Profiles : Addressable Gen2 RGB
Pump Speed : 3400 ± 300 RPM
Pump MTTF : >210,000 Hours
Pump Noise Level : 25 dBA (Max)
Pump Rated Voltage : 12 VDC
Pump Power Consumption : 3.84 W
Pump Connector : 3-Pin ARGB + 4-Pin PWM
|
| Fan |
Fan
Profile : Addressable Gen 2 RGB
Fan Quantity : 1 PC
Fan Speed : 690 ~ 2500 RPM ± 15%
Fan Airflow : 322.8 m³/h (190 CFM)
Fan Air Pressure : 3.61 mmH2O
Fan MTTF : >160,000 Hours
Fan Noise Level : 38.5 dB(A)
Fan Bearing Type : Loop Dynamic Bearing
Fan Connector : 7-Pin PWM + ARGB
Fan Rated Voltage : 12 VDC
Fan Rated Current : 0.5 A
Fan Safety Current : 0.8 A
Fan Power Consumption : 6 W
|
| Pixel LED |
Pixel LED
Pixel LED Connector : USB Type-C to Motherboard 9 pin
Pixel LED Screen Resolution : 28 x 26 px (556 px)
Pixel LED Screen Orientation : Software-MasterCTRL adjustable
Pixel LED Rated Voltage: 5 VDC
Pixel LED Rated Current : 0.5 A
Pixel LED Safety Current : 5.0 A
Pixel LED Power Consumption : 2 W
|
|
| ข้อมูลทั่วไป |
|
| Overall Dimensions |
Radiator Dimensions : 394 x 119.2 x 27 mm
Pump Dimensions : 92.5 x 87 x 38.5 mm
Fan Dimensions (L x W x H) : 361 x 122 x 26.5 mm
Tube Length : 400 mm
Pixel LED Dimensions : 85 x 79.2 x 16 mm
|
| Dimension (cm) |
(W x L x H) : 0.00 x 0.00 x 0.00 cm |
| Package Dimension (cm) |
(W x L x H) : 21.00 x 41.00 x 14.00 cm |
| Net Weight (kg) |
0.00 kg |
| Gross Weight (kg) |
2.64 kg |
| Volume (cm³) |
12,054.00 cm³ |
|
| การรับประกัน |
|
| warranty |
6Y |
