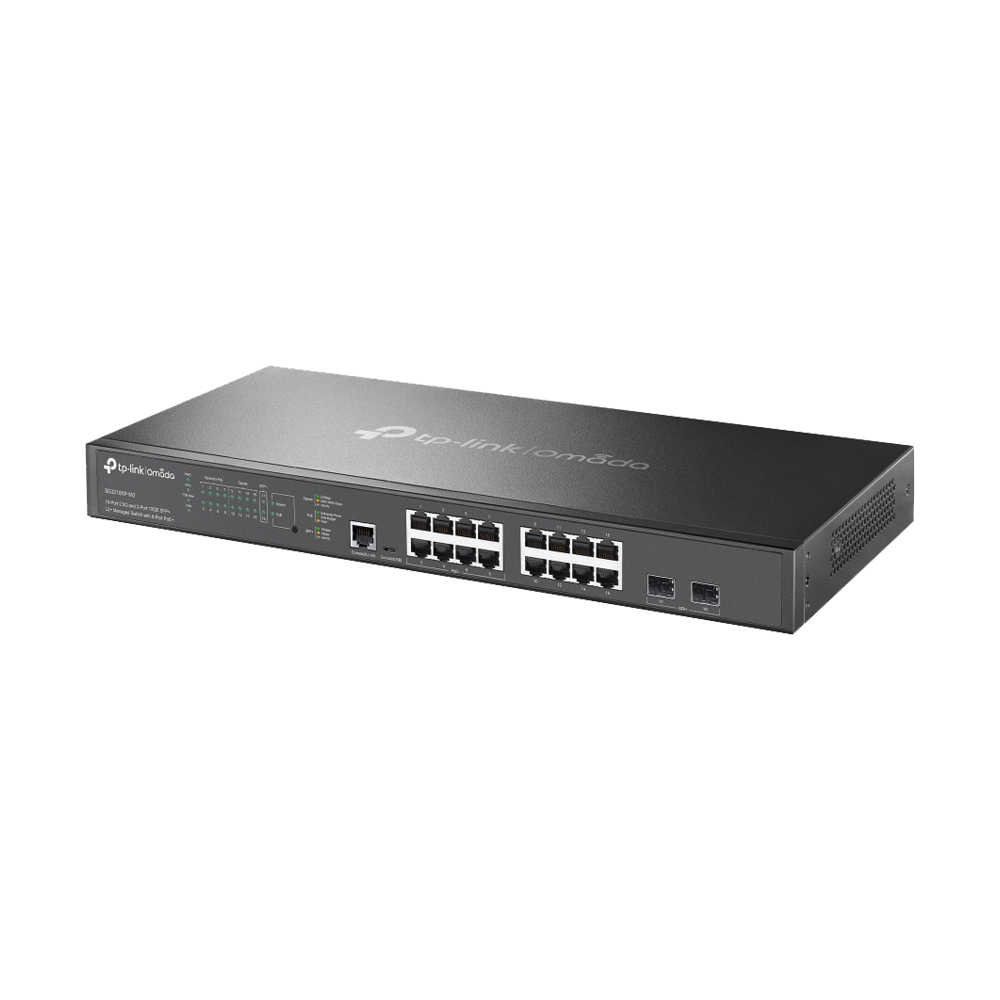

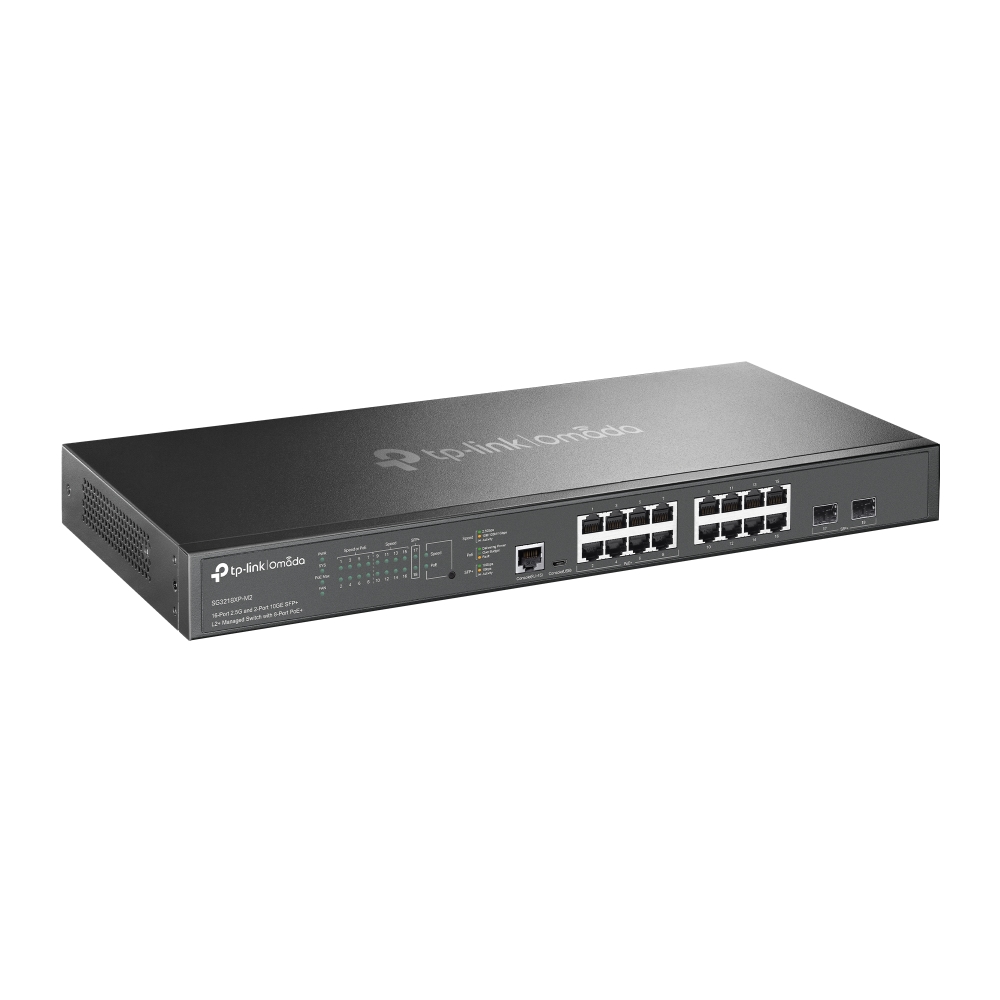

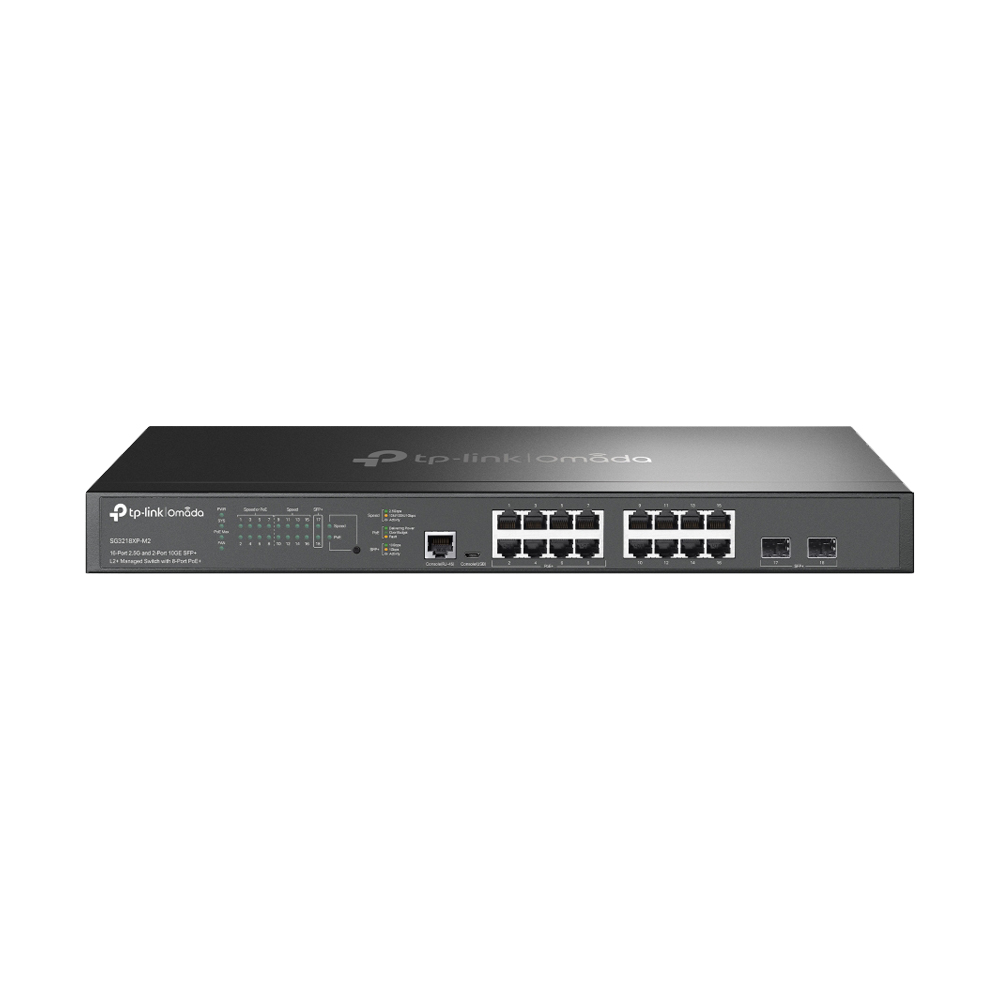

Gigabit Switching Hub TP-LINK TL-SG3218XP-M2 (19″,16-Port 2.5G,2-Port 10GE SFP+,8

TL-SG3218XP-M2

• 16× 2.5 Gbps RJ45 Ports (8 PoE Port Power Budget 240 W)
• 2× 10G SFP+ Slots
• 1× RJ45 Console Port

• 1× Micro-USB Console Port

• IEEE 802.3/3u/3ab/3bz/3ae (2.5G/10G), 802.3af/at (PoE+), 802.1Q/1p/1D/1w/1s/3ad/1X

• 120 Gbps

• 16 K

• 89.28 Mpps

• 9 KB

• 12 Mbit

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
– Trap/Inform
– RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

• VLAN Group
– Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 256 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ)
– Port-Based QinQ
– Selective QinQ
• Voice VLAN

• IP-MAC-Port Binding
– 512 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
– 512 Entries
– DHCPv6 Snooping
– ND Detection
– IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio control mode
• 802.1X
– Port base authentication
– Mac base authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Support Radius authentication andaccountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

L3 Features
• 32 IPv4/IPv6 Interfaces
• Static Routing
– 48 static routes
• Static ARP
– 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
• DHCP L2 Relay
L2 and L2+ Features
• Link Aggregation
– static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol
– 802.1d STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter, Root Protect
• Loopback Detection
– Port based
– VLAN based
• Flow Control
– 802.3x Flow Control
– HOL Blocking Prevention
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Tx/Rx/Both
L2 Multicast

• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
• IGMP Authentication
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
– Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

• 1× Micro-USB Console Port

• 16× 2.5 Gbps RJ45 Ports (8 PoE Port Power Budget 240 W)
• 2× 10G SFP+ Slots
• 1× RJ45 Console Port

• 100-240 V AC~50/60 Hz

• Max. Power Consumption : 299.4 W (110V/60Hz)(with 240 W PD connected)
• Max. Heat Dissipation : 1021.64 BTU/h (110 V/60 Hz)(with 240 W PD connected)

• Standard: 802.3at/af compliant
• PoE+ Ports(802.3at PoE): 8 Ports, up to 30 W per port
• Power Budget: 240 W

• Metal

• Operating Temperature: 0–50 °C (32–122°F)
• Storage Temperature: -40–70 °C (-40–158°F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• CE, FCC, RoHS

• SG3218XP-M2 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
