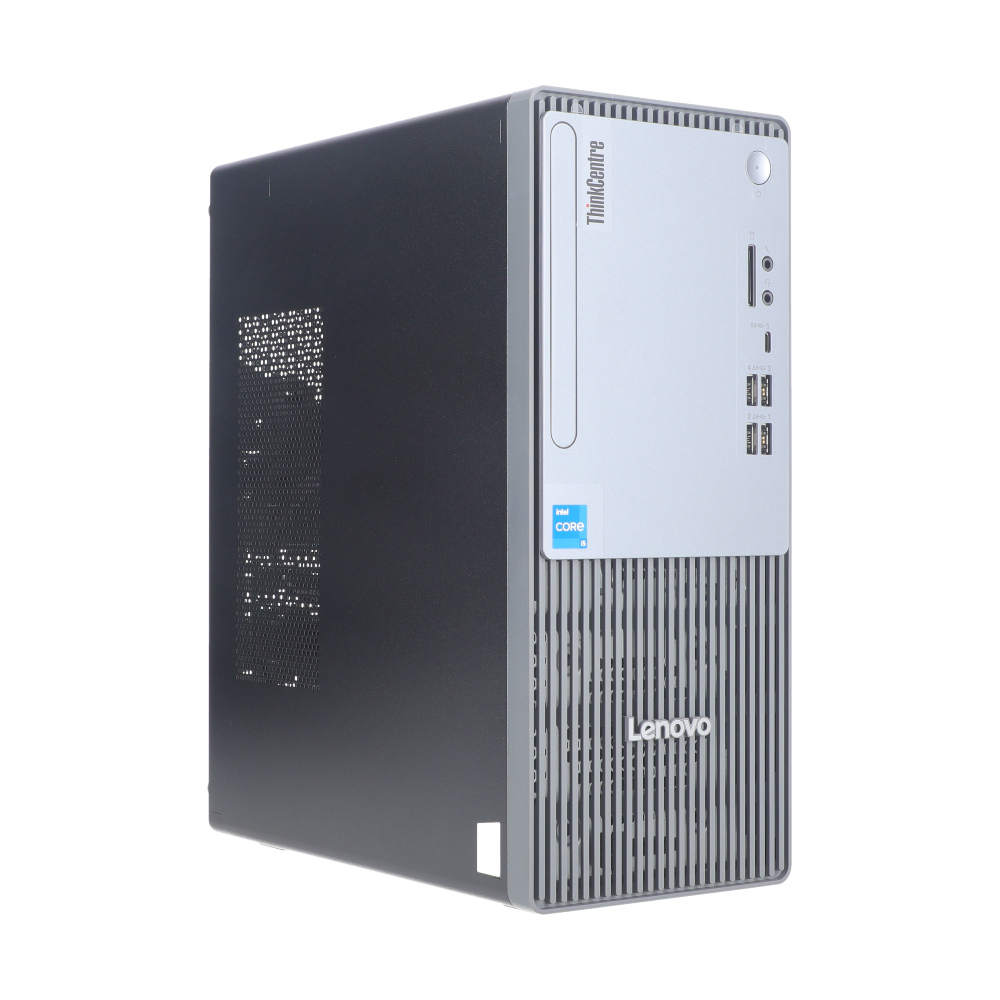

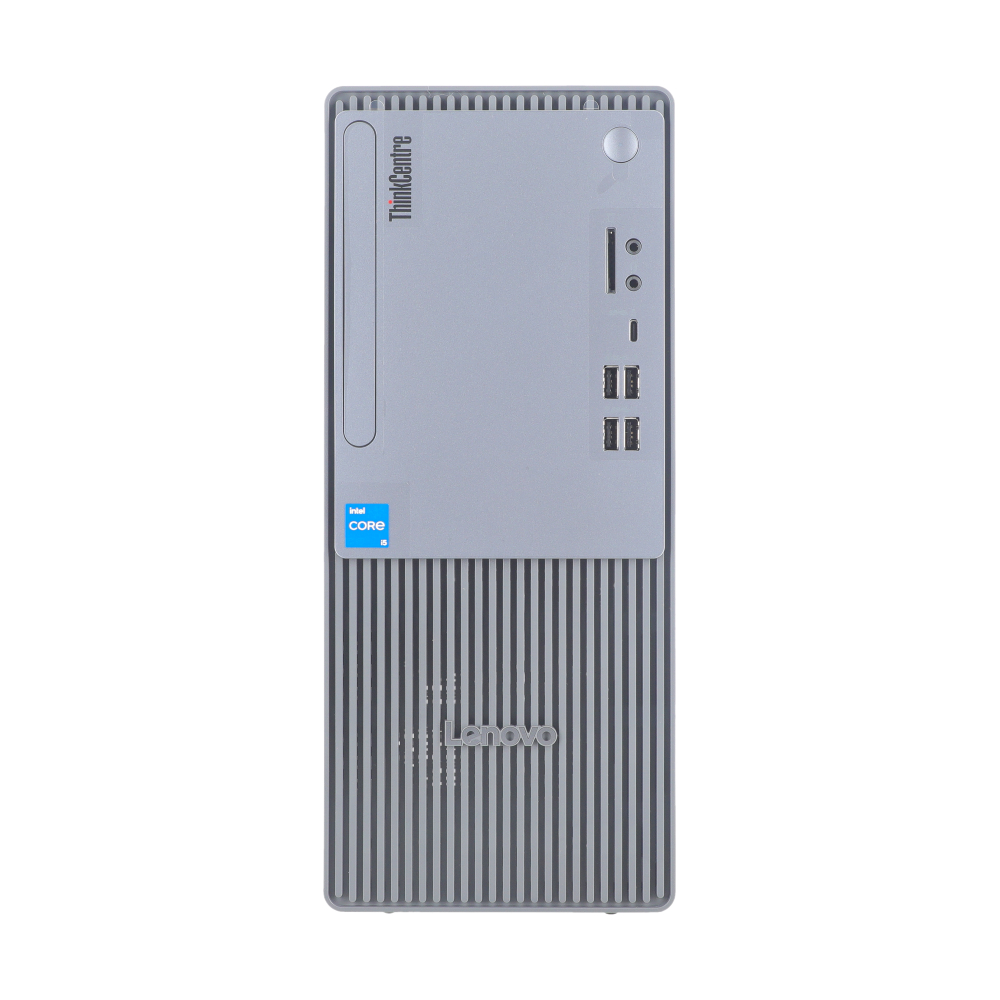

Desktop Lenovo ThinkCentre Neo 50t G5 (12UB0066TA)

ThinkCentre Neo 50t G5 (12UB0066TA)

Intel Core i5-14500 (2.6GHz up to 5.0GHz, 24MB Intel Smart Cache)

None

Intel B760 Chipset

Integrate Graphics : Intel UHD Graphics 770

16GB (1x 16GB) DDR5-4800 UDIMM

2x DDR5 UDIMM slots, dual-channel capable

Up to 64GB DDR5-5600

512GB SSD M.2 2280 PCIe 4.0×4 NVMe

Up to three drives, 1x 3.5″HDD + 1x 2.5″HDD + 1x M.2 SSD
• 3.5″ HDD up to 2TB
• M.2 SSD up to 1TB
• 2.5″ HDD bay is only for customer self upgrade^*

_{*2.5” HDD bay is optional part, only for customer self upgrade purpose and the hard drive is sold separately. Two onboard SATA ports support up to two drives of 2.5″ HDD, 3.5″ HDD and ODD.}

• One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm
• One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
• One M.2 slots (for WLAN)

None

High Definition (HD) Audio, Realtek® ALC623-CG codec

1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
1x line-out (3.5mm)

DOS

N/A

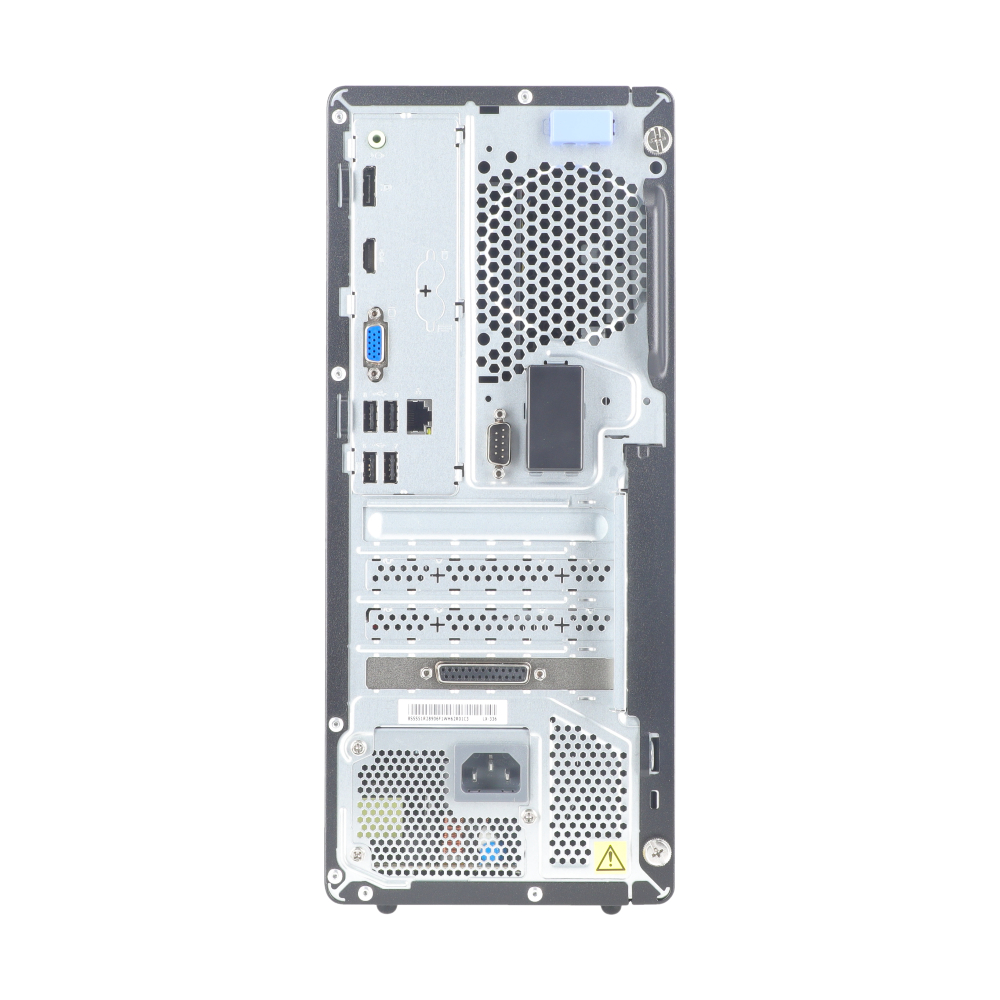

1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2)
1x VGA
1x Parallel
1x Serial

10/100/1000 LAN

Wi-Fi 6 (802.11ax, Intel AX201)

Bluetooth 5.2

3-in-1 Card Reader

260W 90%

Yes

Yes
