คำอธิบาย

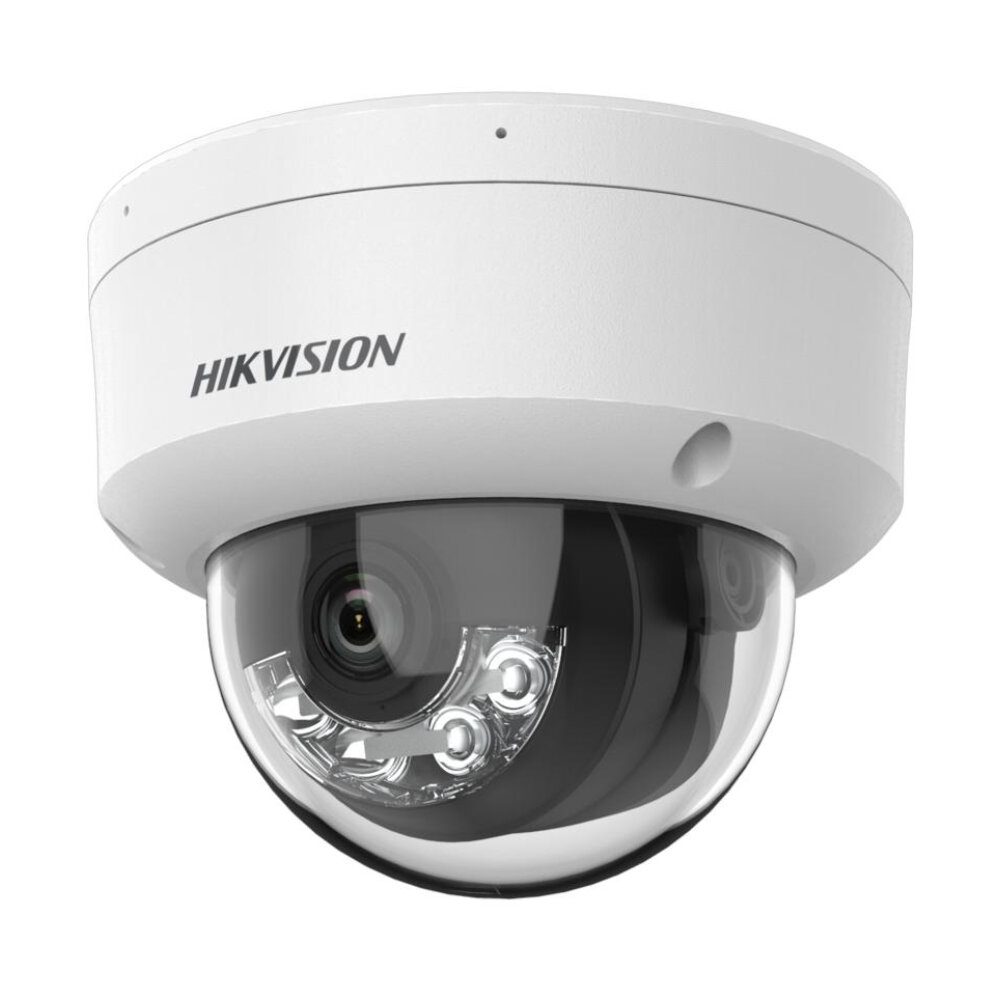

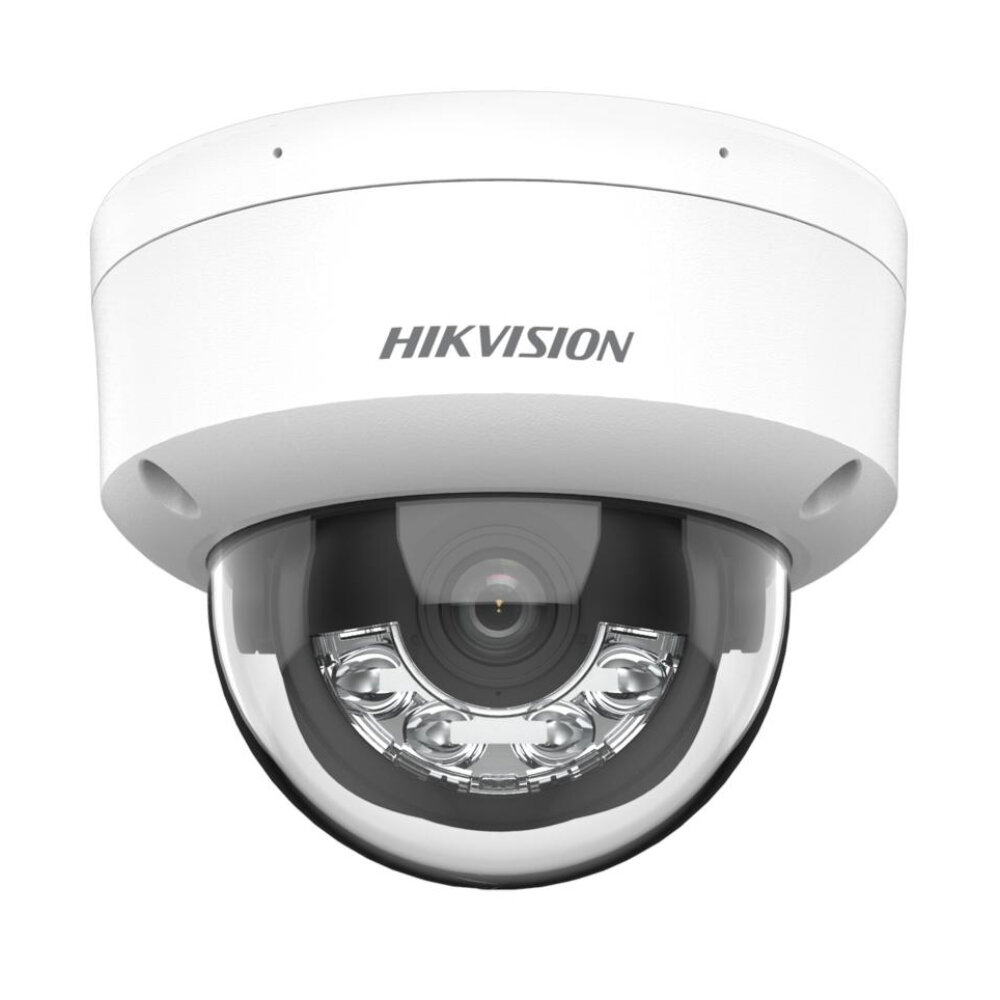

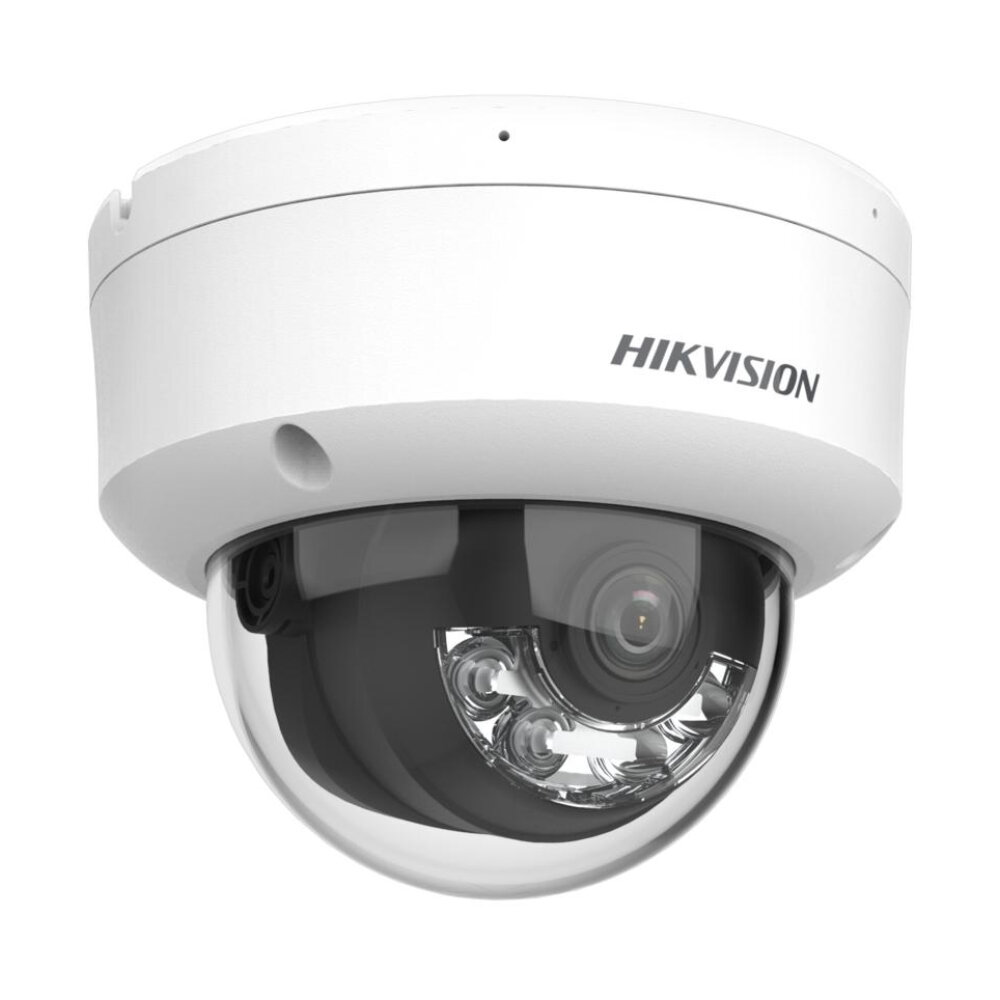

คุณสมบัติ กล้องวงจรปิด 4mm IP Camera HIKVISION DS-2CD1123G2-LIU
| แบรนด์ / โมเดล | |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD1123G2-LIU |
| ข้อมูลจำเพาะ | |
| Image Sensor | 2MP , 1/2.9″ Progressive Scan CMOS |
| Lens | Focal Length : 4mm Aperture : F1.6 |
| Lens Mount | M12 |
| Angle of View | horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° |
| Adjustment Angle | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Shutter | 1/3 s to 1/100,000 s |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| IR | 30m |
| Video Resolution | 1920 × 1080 |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Frame Rate | Main Stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream : 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Audio | Mono sound |
| Functions | Heartbeat,anti-banding,mirror,password protection,password reset via email |
| การเชื่อมต่อ | |
| Interface | 1x RJ45 10 M/100 M self-adaptive Ethernet port |
| กำลังไฟ | |
| Power Supply | 12 VDC ± 25%, 0.5 A, max. PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Power Consumption | Max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection |
| ข้อมูลทั่วไป | |
| Dimension (cm) | (W x L x H) : 12.14 x 9.70 x 9.70 cm |
| Package Dimension (cm) | (W x L x H) : 14.50 x 14.50 x 14.00 cm |
| Material | Metal & Plastic |
| Working Environment | Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Ingress Protection | IP67 |
| Net Weight (kg) | 0.55 kg |
| Gross Weight (kg) | 0.64 kg |
| Volume (cm³) | 2,943.50 cm³ |
| Package Contents | N/A |
| การรับประกัน | |
| warranty | 3Y |
