คำอธิบาย

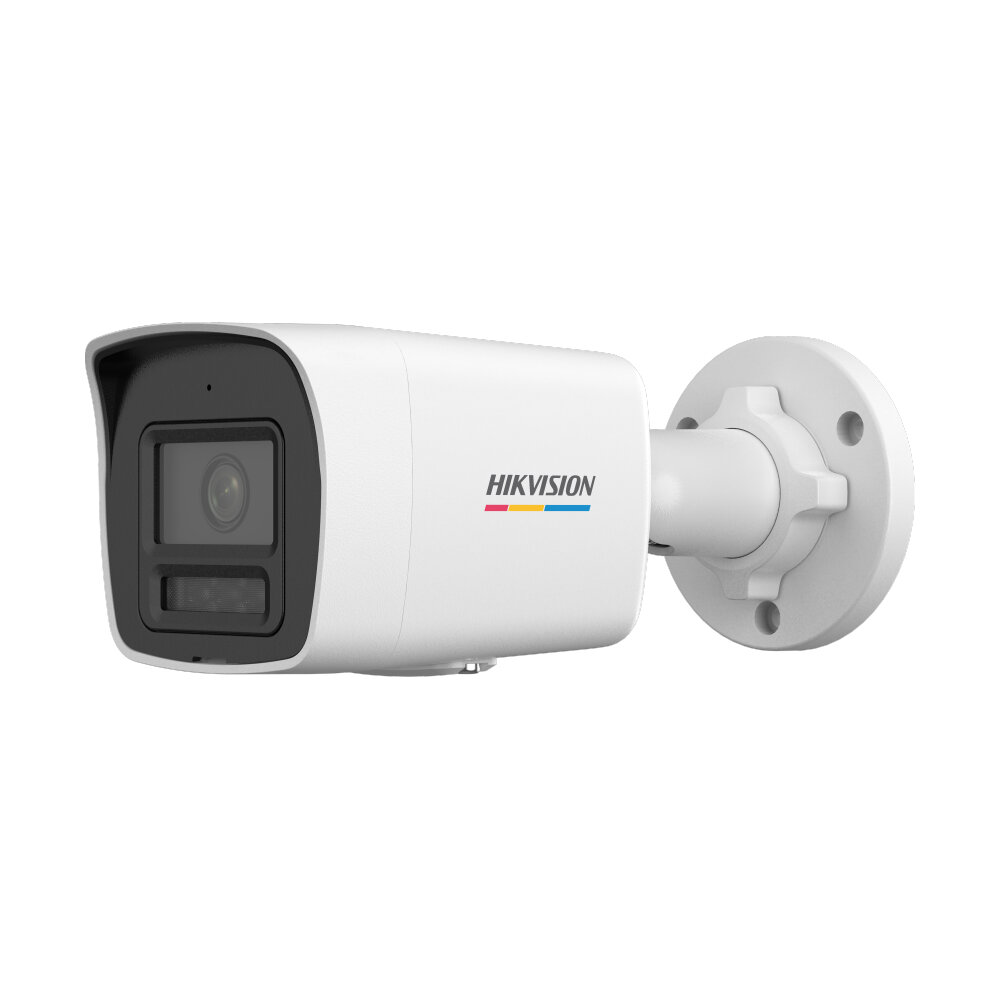

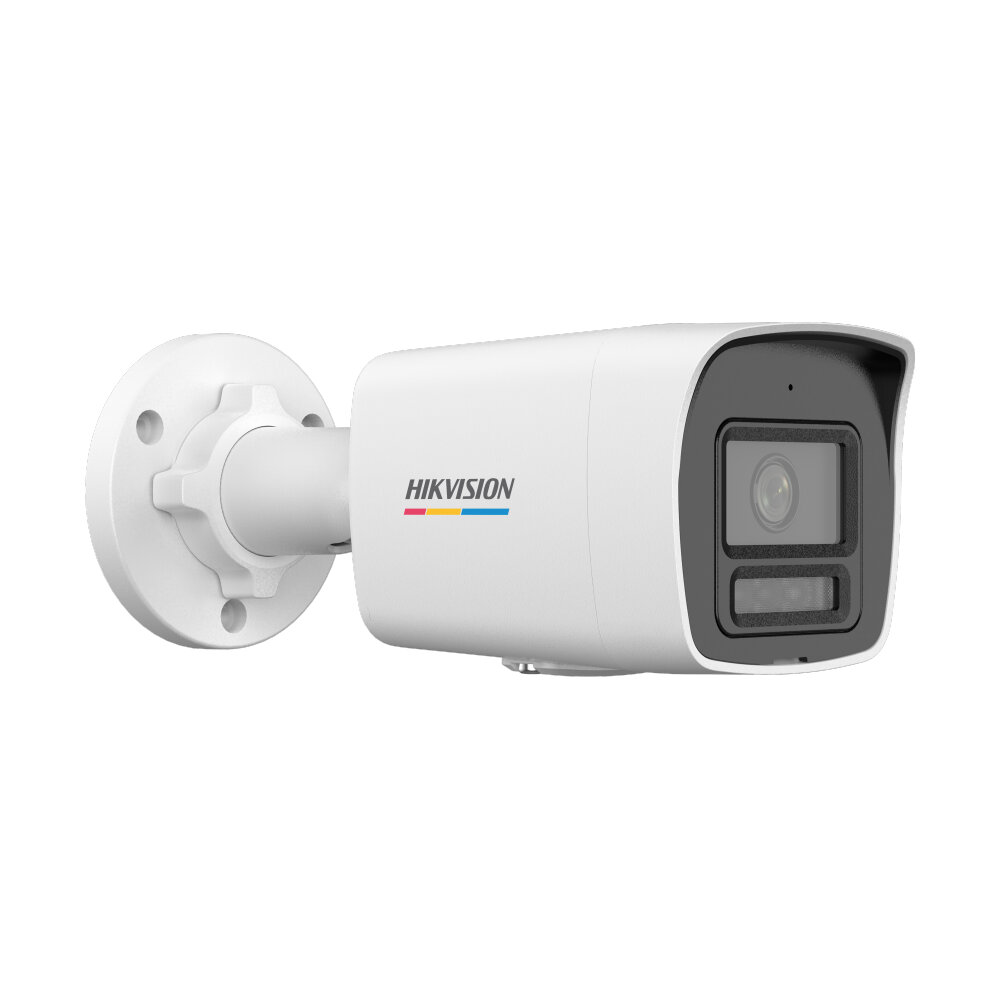

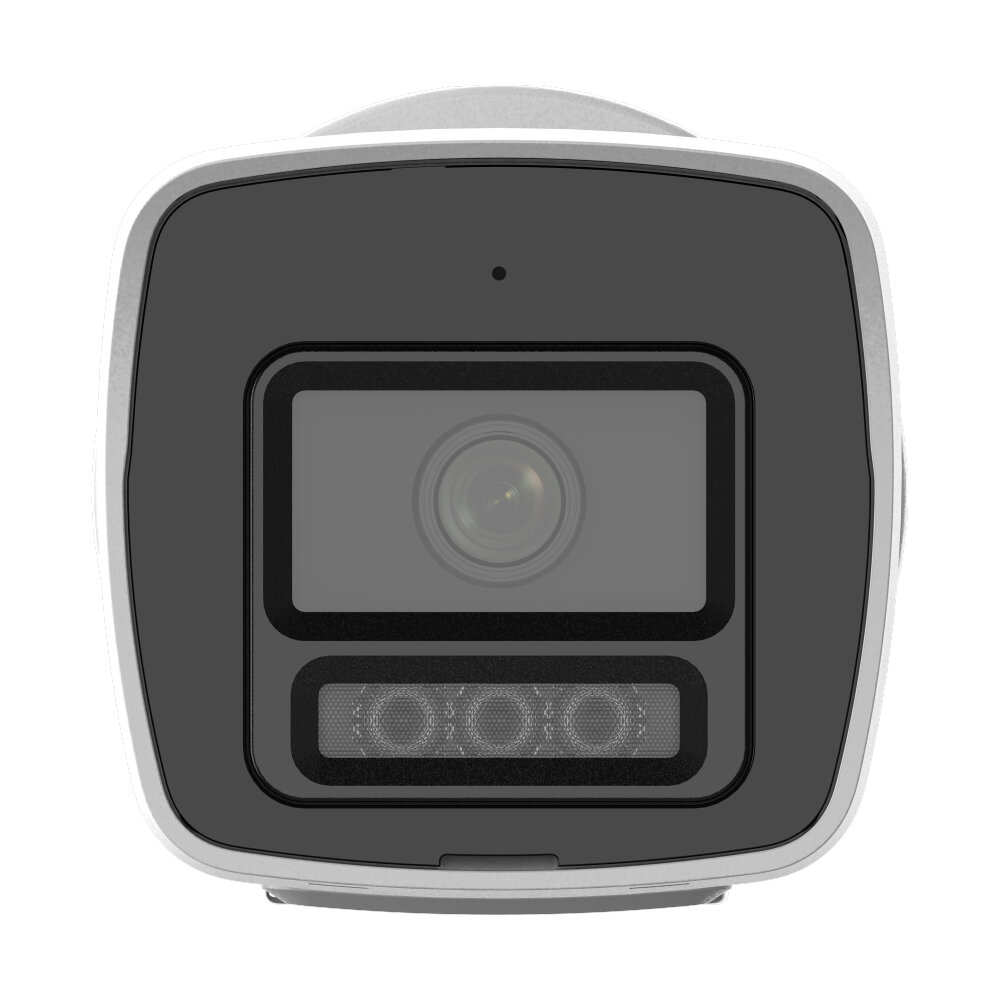

คุณสมบัติ กล้องวงจรปิด 4mm IP Camera HIKVISION DS-2CD1047G3H-LIU
| แบรนด์ / โมเดล | |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD1047G3-LIU |
| ข้อมูลจำเพาะ | |
| Image Sensor | • 4MP |
| Lens | • Lens Type : 4mm • Iris Type : Fixed • Aperture : F1.0 |
| Lens Mount | • M16 |
| Focus | N/A |
| Zoom | N/A |
| Angle of View | • horizontal FOV 89.3°, vertical FOV 48.2°, diagonal FOV 106.5° |
| Adjustment Angle | • Pan: 0° to 360° • tilt: 0° to 90° • rotate: 0° to 360 |
| Shutter | • 1 s to 1/100,000 s |
| Minimum Illumination | • Color: 0.0001 Lux @ (F1.0, AGC ON) |
| Noise Reduction | N/A |
| IR | • 30m |
| Day/Night | • ColorVu |
| S/N | N/A |
| WDR | • 120 dB |
| Video Resolution | • 2560 × 1440 |
| Video Compression | • Main stream: H.265+/H.265/H.264+/H.264, • Sub-stream: H.265/H.264/MJPEG |
| Frame Rate | • Main Stream – 50 Hz : 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) – 60 Hz : 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720) • Sub-Stream – 50 Hz: 25 fps (768 × 432, 640 × 360) – 60 Hz: 24 fps (768 × 432, 640 × 360) |
| User/Host | • Up to 32 users • 3 user levels: administrator, operator, and user |
| Storage | NONE |
| ONVIF | • ONVIF (Profile S, Profile G),ISAPI,SDK |
| Protocols | • TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Function | • Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding |
| การเชื่อมต่อ | |
| Interface | • 1x RJ45 10 M/100 M self-adaptive Ethernet port |
| กำลังไฟ | |
| Power | • 12 VDC ± 25%, 0.58 A • PoE: IEEE 802.3af, Class 3, max. 9 W
|
| Power Consumption | • Max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection |
| ข้อมูลทั่วไป | |
| Dimension (cm) | (W x L x H) : 6.91 x 17.29 x 6.69 cm |
| Package Dimension (cm) | (W x L x H) : 49.00 x 31.00 x 9.00 cm |
| Net Weight (kg) | 0.31 kg |
| Gross Weight (kg) | 0.00 kg |
| Volume (cm³) | 13,671.00 cm³ |
| Working Environment | • Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Ingress Protection | • IP67 |
| การรับประกัน | |
| warranty | 3Y |
