คำอธิบาย

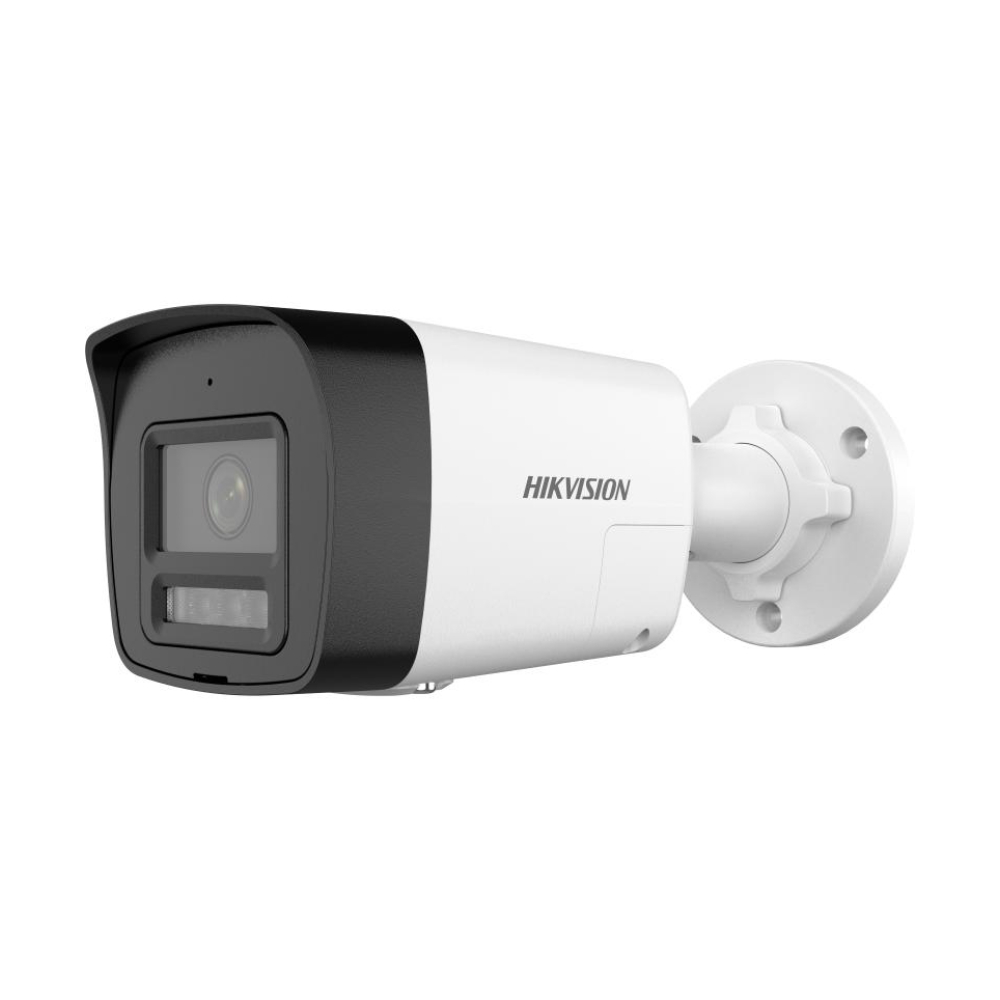

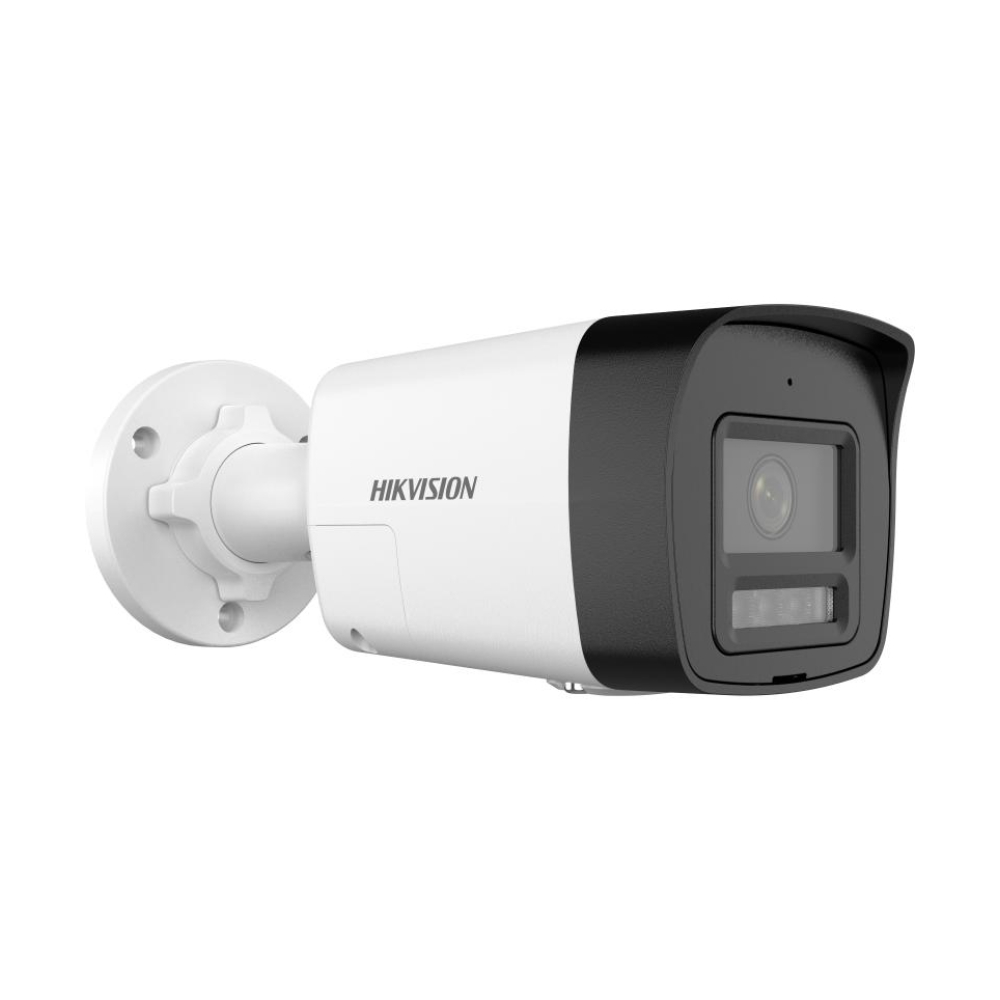

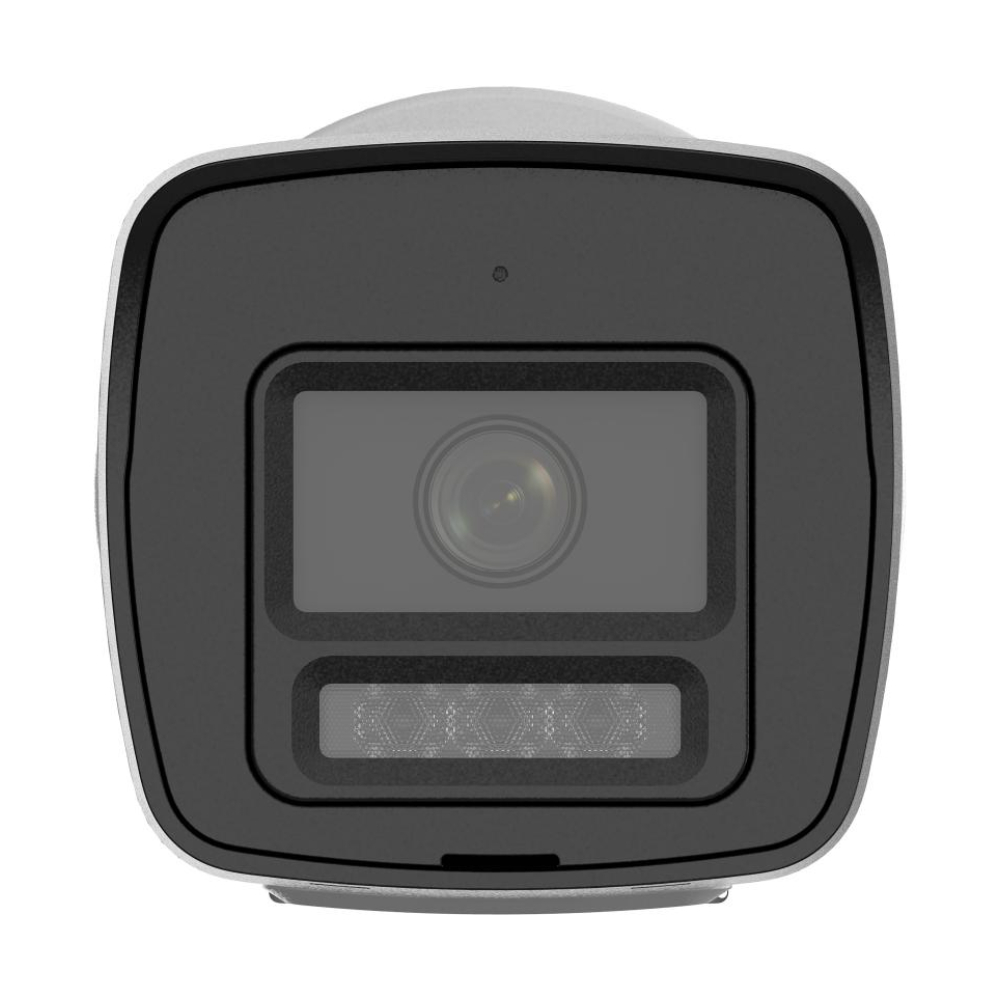

คุณสมบัติ กล้องวงจรปิด 4mm IP Camera HIKVISION DS-2CD1043G2-LIUF/SL
| แบรนด์ / โมเดล | |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD1043G2-LIUF/SL |
| ข้อมูลจำเพาะ | |
| Image Sensor | 4MP , 1/3″ Progressive Scan CMOS |
| Lens | Lens Type : 4mm Iris Type : Fixed Aperture : F1.6 |
| Lens Mount | M12 |
| Focus | NONE |
| Zoom | NONE |
| Angle of View | horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
| Adjustment Angle | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Shutter | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Noise Reduction | Yes |
| IR | 30m |
| Day/Night | Day,Night,Auto,Schedule IR cut filter |
| S/N | N/A |
| WDR | 120 dB |
| Video Resolution | 2560 × 1440 |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Frame Rate | 50 Hz : 20 fps (2560 × 1440) , 25 fps (1920 × 1080, 1280 × 720) 60 Hz : 20 fps (2560 × 1440) , 24 fps (1920 × 1080, 1280 × 720) |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Storage | Support on-board storage up to 512 GB (SD card slot) |
| Alarm | Motion detection (support alarm triggering by specified target types (human and vehicle) video tampering alarm,exception |
| ONVIF | NONE
|
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Function | Heartbeat,anti-banding,mirror,password protection,password reset via email |
| การเชื่อมต่อ | |
| Interface | 1x RJ45 10 M/100 M self-adaptive Ethernet port 1x built-in microphone |
| กำลังไฟ | |
| Power | 12 VDC ± 25% |
| Power Consumption | 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 9 W |
| ข้อมูลทั่วไป | |
| Dimension (cm) | (W x L x H) : 17.90 x 6.74 x 6.91 cm |
| Package Dimension (cm) | (W x L x H) : 21.50 x 11.50 x 12.00 cm |
| Net Weight (kg) | 0.31 kg |
| Gross Weight (kg) | 0.46 kg |
| Ingress Protection | IP67: IEC 60529-2013 |
| Working Environment | Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Package Content | N/A |
| Volume (cm³) | 2,967.00 cm³ |
| การรับประกัน | |
| warranty | 3Y |
