คำอธิบาย

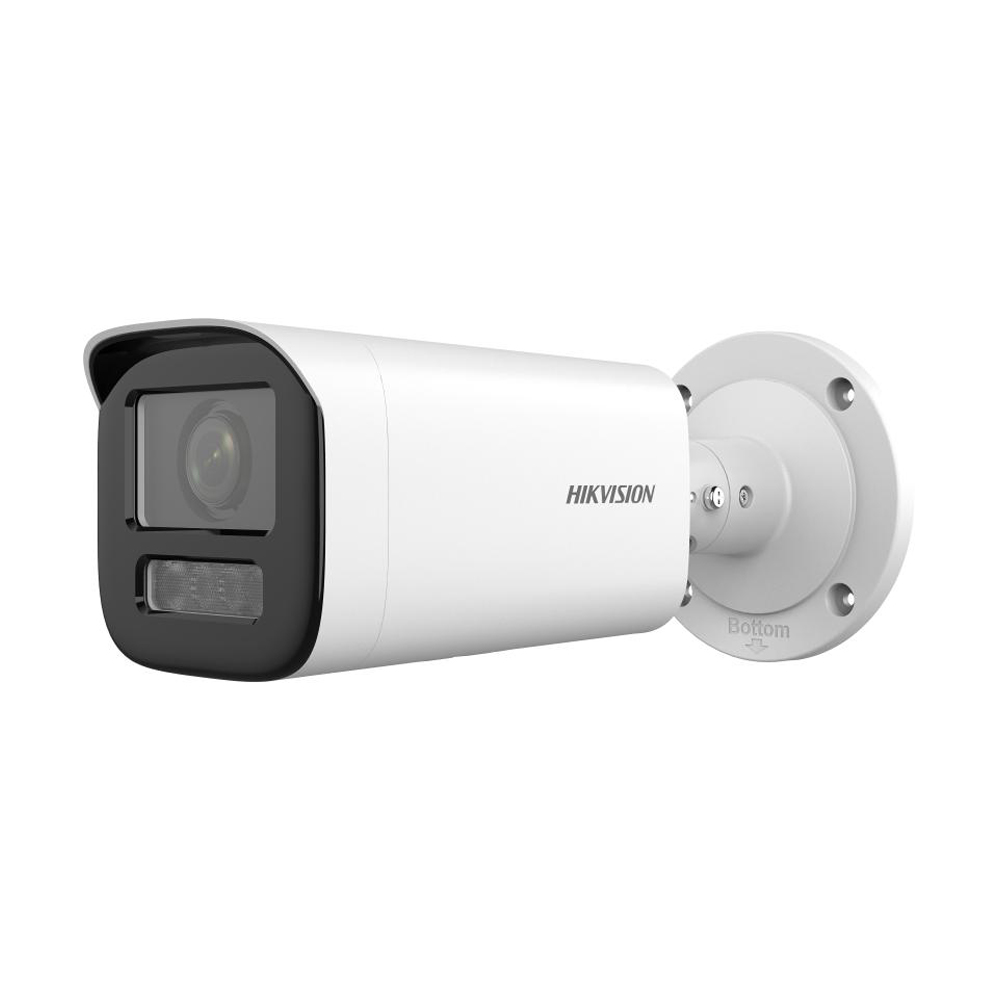

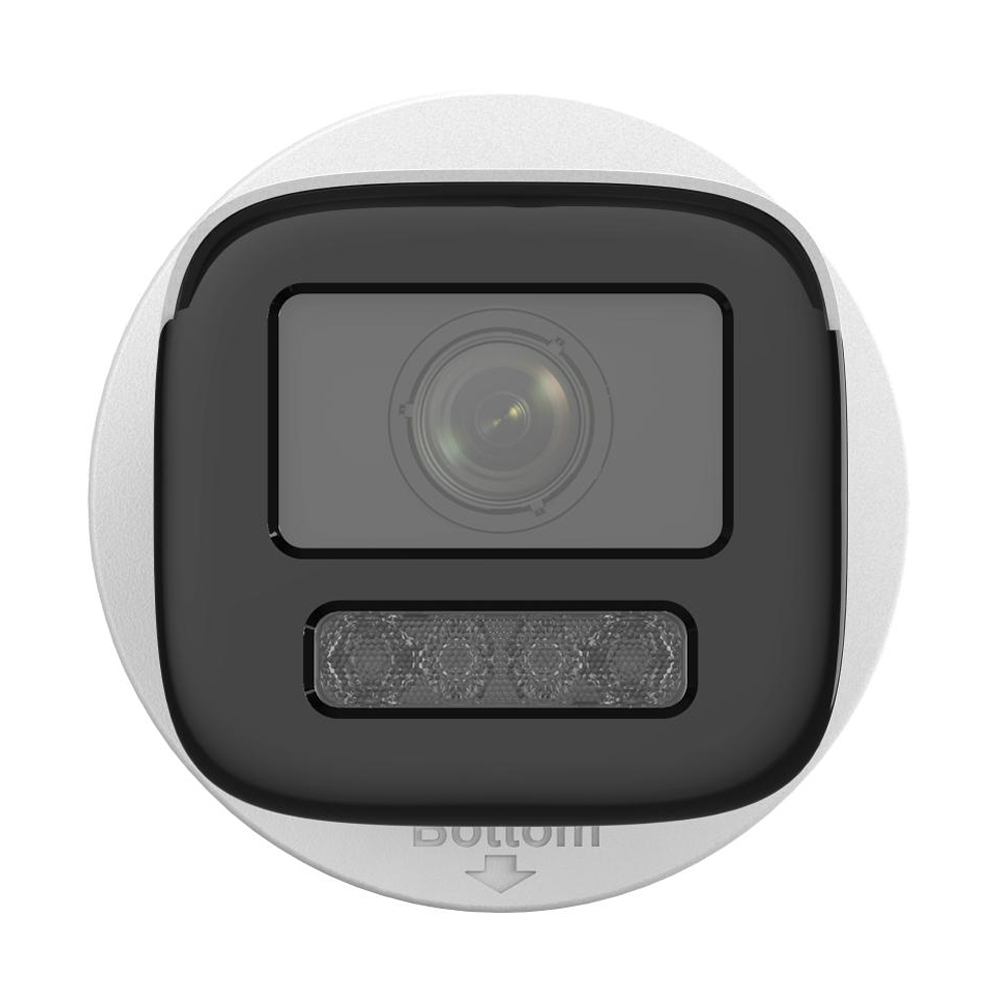

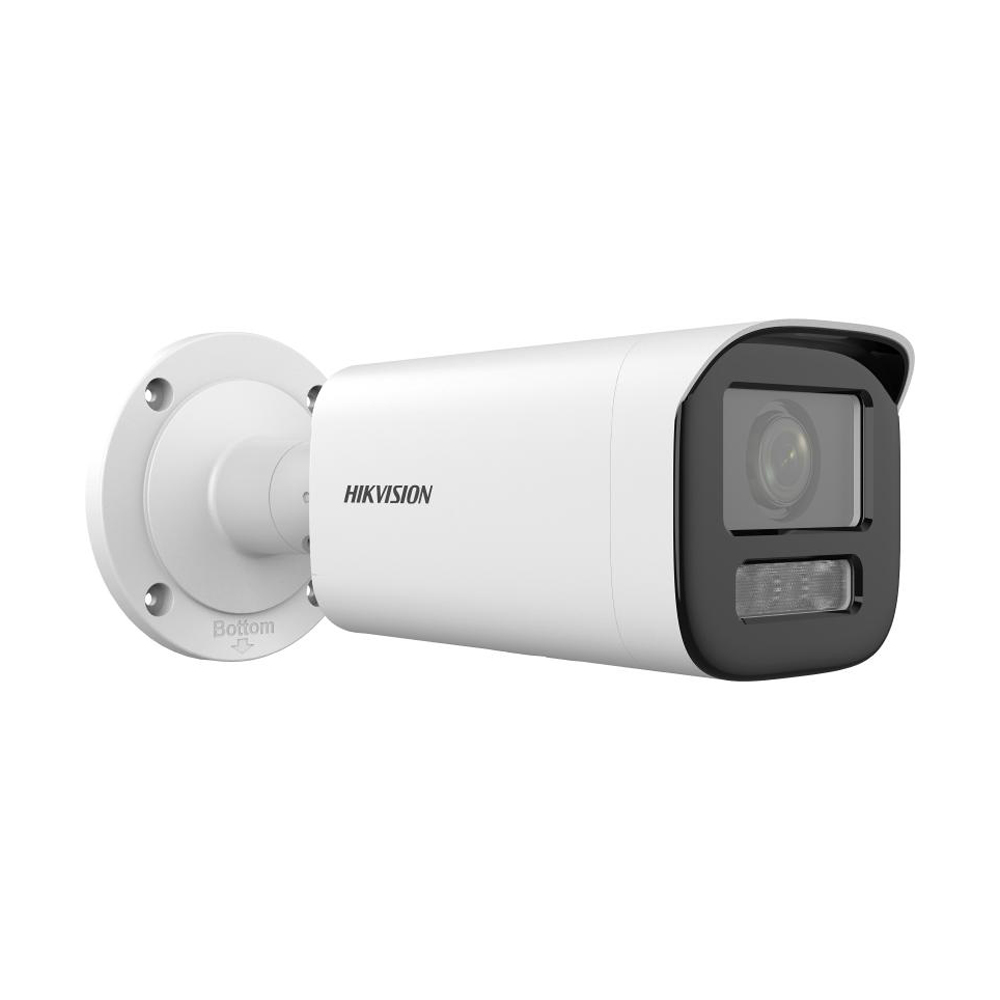

คุณสมบัติ กล้องวงจรปิด 2.7-13.5mm IP Camera HIKVISION DS-2CD3621G2-IZS
| แบรนด์ / โมเดล | |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD3621G2-IZ |
| ข้อมูลจำเพาะ | |
| Image Sensor | • 2MP , 1/2.8″ Progressive Scan CMOS |
| Lens | • 2.7-13.5mm |
| Lens Mount | • Integrated |
| Focus | N/A |
| Zoom | N/A |
| Angle of View | • horizontal FOV 111.5° to 33.4° • vertical FOV 58.4° to 18.8° • diagonal FOV 134.3° to 38.3° |
| Adjustment Angle | • Pan: 0° to 360° • tilt: 0° to 90° • rotate: 0° to 360° |
| Shutter | • 1/3 s to 1/100,000 s |
| Minimum Illumination | • Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light |
| Noise Reduction | • Yes |
| IR | • 60m |
| Day/Night | • IR cut filter |
| S/N | N/A |
| WDR | • WDR technology |
| Video Resolution | • 1920 × 1080 |
| Video Compression | • Main stream: H.265+/H.265/H.264+/H.264, • Sub-stream: H.265/H.264/MJPEG, • Third stream: H.265/H.264 |
| Frame Rate | • Main Stream – 50 Hz: 25 fps (1920 × 1080, 1280 × 720) – 60 Hz: 30 fps (1920 × 1080, 1280 × 720) • Sub-Stream – 50 Hz: 25 fps (640 × 480, 640 × 360) – 60 Hz: 30 fps (640 × 480, 640 × 360) |
| User/Host | • Up to 32 users • 3 user levels: administrator, operator, and user |
| Storage | • Built-in memory card slot, support microSD/microSDHC/• microSDXC card, up to 256 GB |
| Alarm | • 1 input, 1 output (max. 12 VDC, 30 mA) |
| ONVIF | N/A |
| Protocols | • TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X |
| Function | • Heartbeat,mirror,password reset via email,pixel counter,password protection,anti-banding |
| การเชื่อมต่อ | |
| Interface | • 1x RJ45 10 M/100 M self-adaptive Ethernet port |
| กำลังไฟ | |
| Power Supply | • 12 VDC ± 25%, 0.86 A • PoE: IEEE 802.3af, Class 3 |
| Power Consumption | • Max. 12.9 W,Ø5.5 mm coaxial power plug,reverse polarity protection |
| ข้อมูลทั่วไป | |
| Dimension (cm) | (W x L x H) : 28.00 x 13.50 x 13.50 cm |
| Package Dimension (cm) | (W x L x H) : 14.00 x 31.00 x 14.00 cm |
| Net Weight (kg) | 0.96 kg |
| Gross Weight (kg) | 1.25 kg |
| Volume (cm³) | 6,076.00 cm³ |
| Ingress Protection | • IP67 |
| Working Environment | • Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| การรับประกัน | |
| warranty | 3Y |
