คำอธิบาย

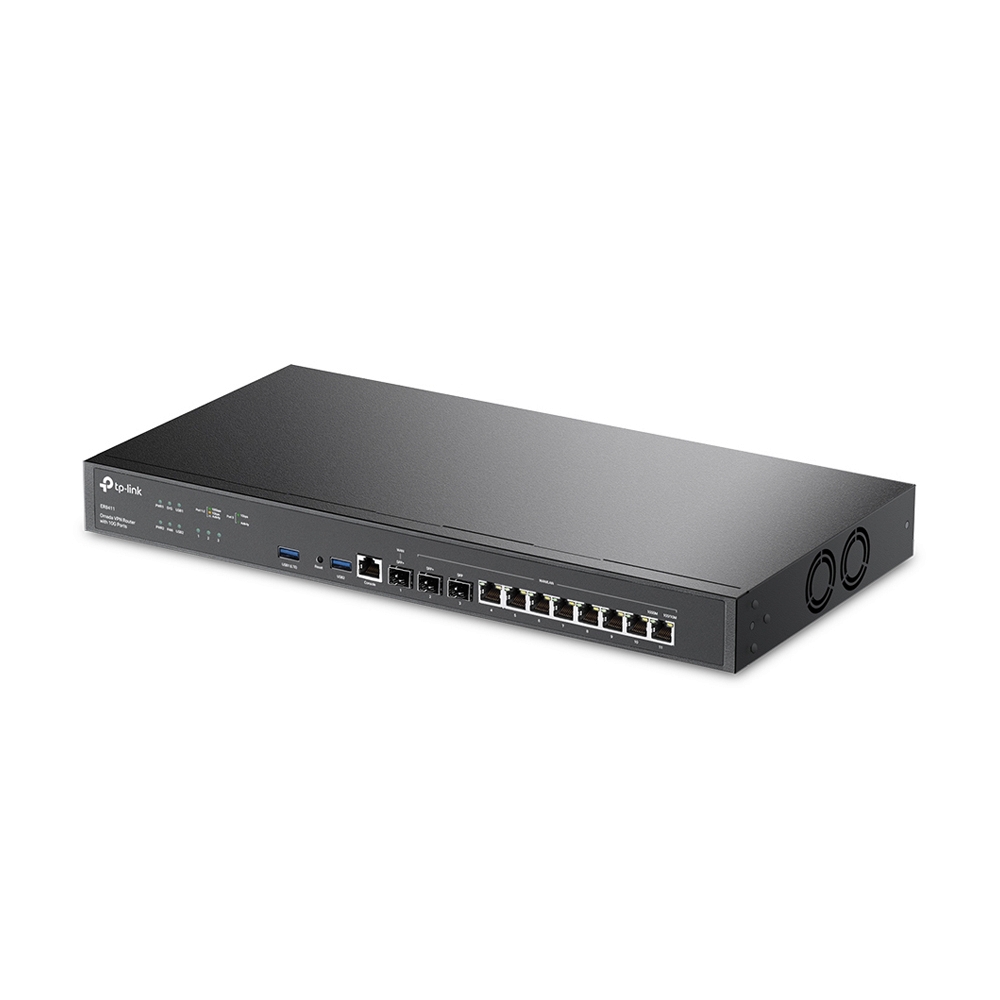

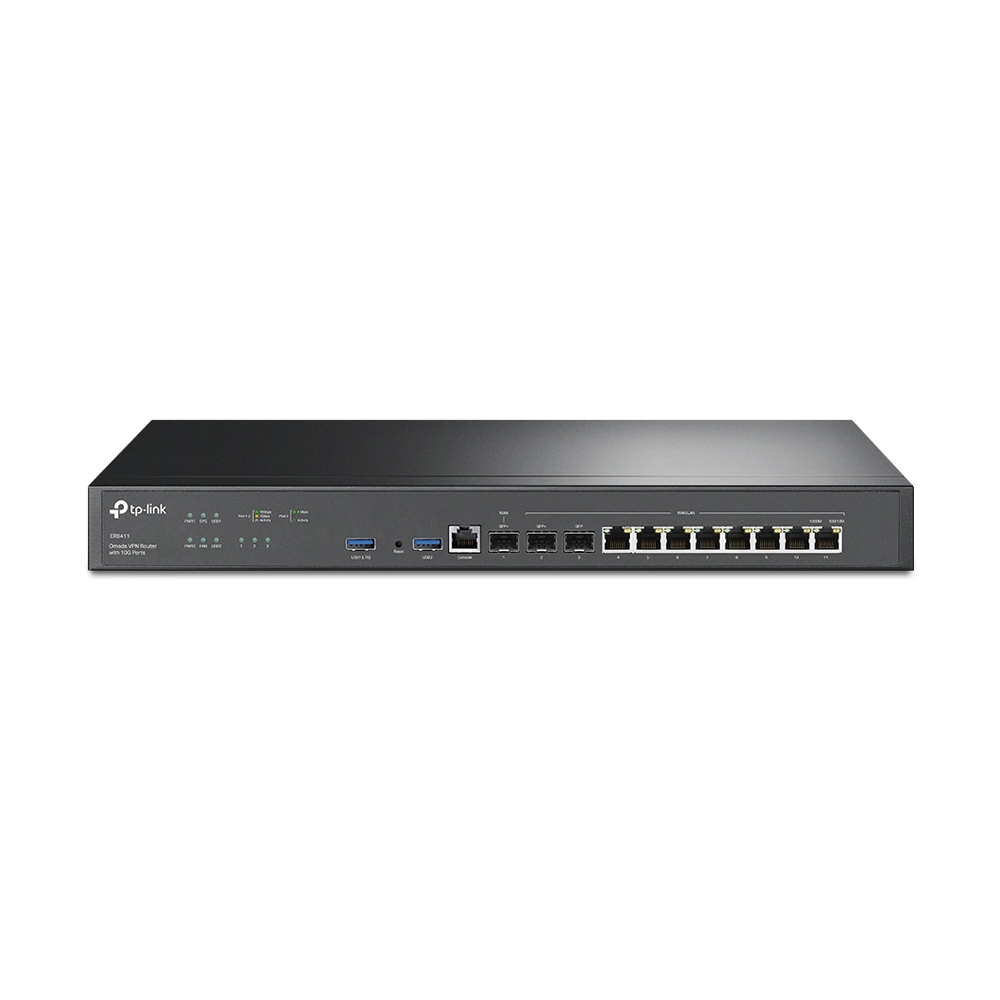

คุณสมบัติ VPN Router TP-LINK Omada (ER8411) Gigabit
| แบรนด์ / โมเดล | |
|---|---|
| Brand | TP-LINK |
| Model | ER8411 |
| ข้อมูลจำเพาะ | |
| Standards | • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q |
| Wireless Functions | • ACL : IP/Port/Protocol/Domain Name Filterin • Advanced Routing – Static Routing – Policy Routing • Bandwidth Control – IP/Port-based Bandwidth Control – Guarantee & Limited Bandwidth • Load Balance – Intelligent Load Balance – Application Optimized Routing – Link Backup (Timing*5, Failover) – Online Detection • NAT – SPI Firewall – VPN Passthrough – FTP/H.323/PPTP/SIP/IPsec ALG – DoS Defence, Ping of Death – Local Management Session Limit : IP-based Session Limit |
| Processor Specs | N/A |
| CPU CORE COUNT | N/A |
| Size of RAM | • Flash : 4MB SPI NOR + 256 MB NAND • DRAM : 4 GB DDR4 |
| Operation Mode | • VPN • Load Balance |
| Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Firewall | • SPI Firewall |
| VPN Support | • SSL VPN – SSL VPN Server – SSL VPN Client – 500 SSL VPN Tunnels • IPsec VPN – 300 IPSec VPN Tunnels – LAN-to-LAN, Client-to-LAN – Main, Aggressive Negotiation Mode – DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm – IKE v1/v2 – MD5, SHA1 Authentication Algorithm – NAT Traversal (NAT-T) – Dead Peer Detection (DPD) – Perfect Forward Secrecy (PFS) • PPTP VPN – PPTP VPN Server – PPTP VPN Client (32)*6 – 300 Tunnels (Shared with L2TP) – PPTP with MPPE Encryption • L2TP VPN – L2TP VPN Server – L2TP VPN Client (32)*6 – 300 Tunnels (Shared with PPTP) – L2TP over IPSec • OpenVPN – OpenVPN Server – OpenVPN Client (10)*6 – 110 OpenVPN Tunnels |
| IPv6 support | • WAN Connection |
| Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OS compatibility | N/A |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| การเชื่อมต่อ | |
| Interface | • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports |
| USB Interface | • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
| Antennas | NONE |
| Transmit/Receive | N/A |
| Frequency | NONE |
| Range | NONE |
| กำลังไฟ | |

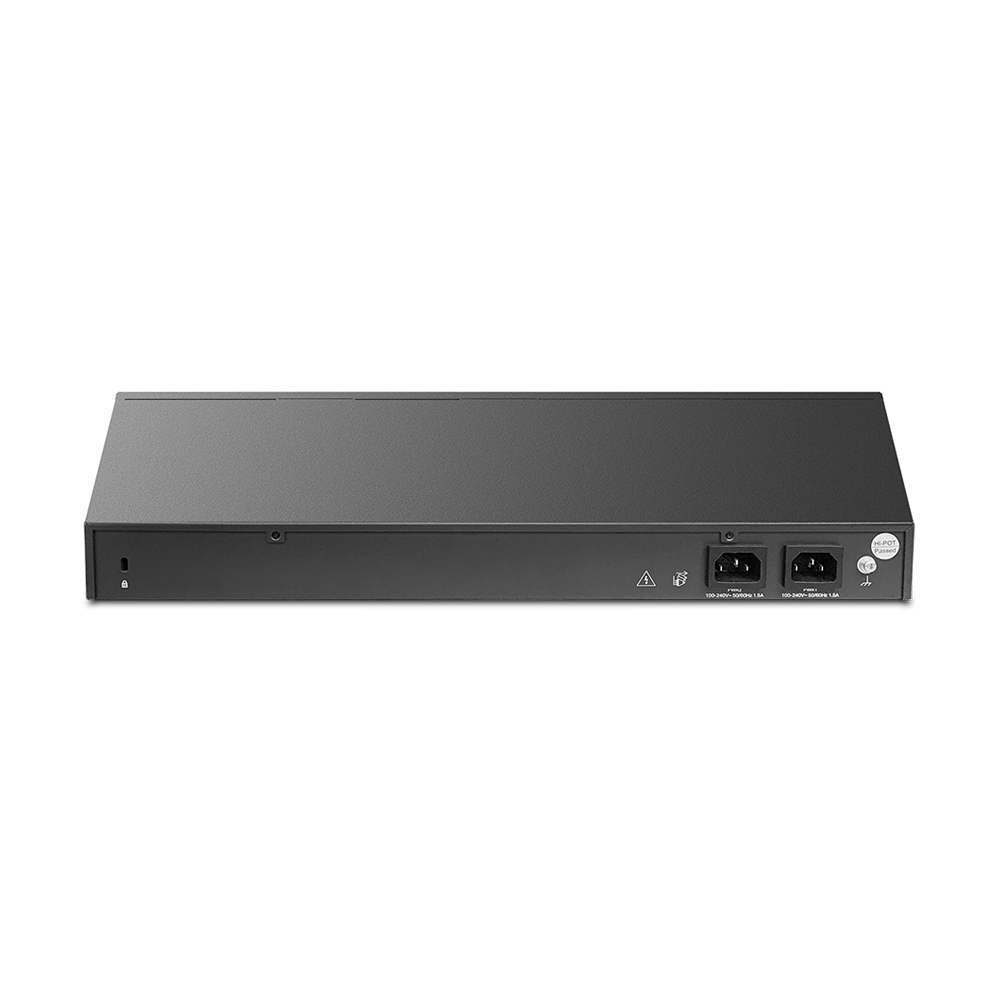

| Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
| ข้อมูลทั่วไป | |
| LEDS | • PWR, SYS, WAN, LAN, USB, FAN |
| Button | • Reset Button |
| Power Switch | N/A |
| Data Rate | NONE |
| Environment | • Operating Temperature: 0–40°C (32–104°F) • Storage Temperature: -40–70°C (-40–158°F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Certification | • CE, FCC, RoHS |
| Package Contents | • Omada 10G Multi-WAN Security Gateway ER8411 • Power Cord • Rack-Mount Kit • Quick Installation Guide |
| Dimension (cm) | (W x L x H) : 44.00 x 22.00 x 4.40 cm |
| Net Weight (kg) | 2.80 kg |
| Package Dimension (cm) | (W x L x H) : 10.00 x 53.00 x 33.00 cm |
| Gross Weight (kg) | 3.72 kg |
| Volume (cm³) | 17,490.00 cm³ |
| การรับประกัน | |
| warranty | LT. |
