คำอธิบาย

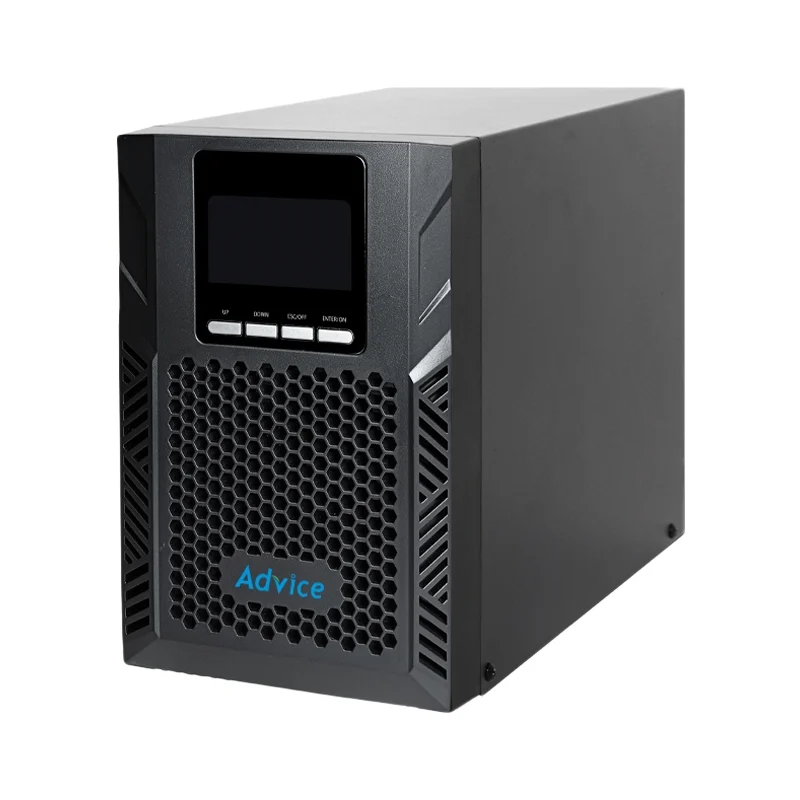

| Brand | ADVICE |
| Model | S1000 |
| Type | True Online Double Conversion |
| Rated Capacity | 1000 VA / 900 W |
| Nominal Input Voltage | 200 / 208 / 220 / 230 / 240 VAC |
| Nominal Output Voltage | 208 / 220 / 230 / 240 VAC |
| Input Frequency | 40~70 Hz (50 / 60Hz Auto-Sensing) |
| Backup Time | Long run unit depends on the capacity of external batteries |
| Transfer Time | AC mode to Bat.mode : 0ms Inverter to Bypass : 4ms (Typical) |
| Display | Blue LCD |
| Output Connections | Back up 3 Ports (Backup) |
| Interface Port | • USB • RS232 • SNMPcard (Optional) • Relay card (Optional) |
| Indicator & Audible Alam/ Protection | • Battery mode • Battery Low • Overload • System Fault |
| Battery Type | Depends on the capacity of external batteries |
| Waveform Type | Pure Sinewave |
| Typical recharge time | 4 hours recover to 90% capacity |
| Dimension | (W x D x H) : 14.40 x 39.90 x 20.90 cm |
| Net Weight | 12.50 KG |
| Package Dimension | (W x D x H) : 22.00 x 37.00 x 31.20 cm |
| Gross Weight | 9.66 KG |
| Volume | 25,396.80 cm3 |
