| Brand | HIKVISION |

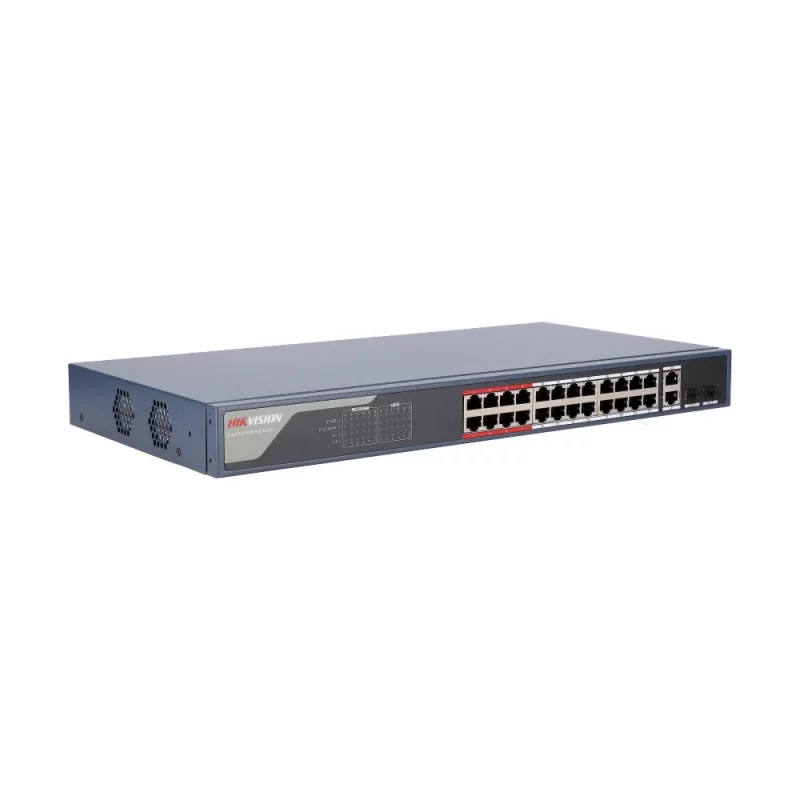

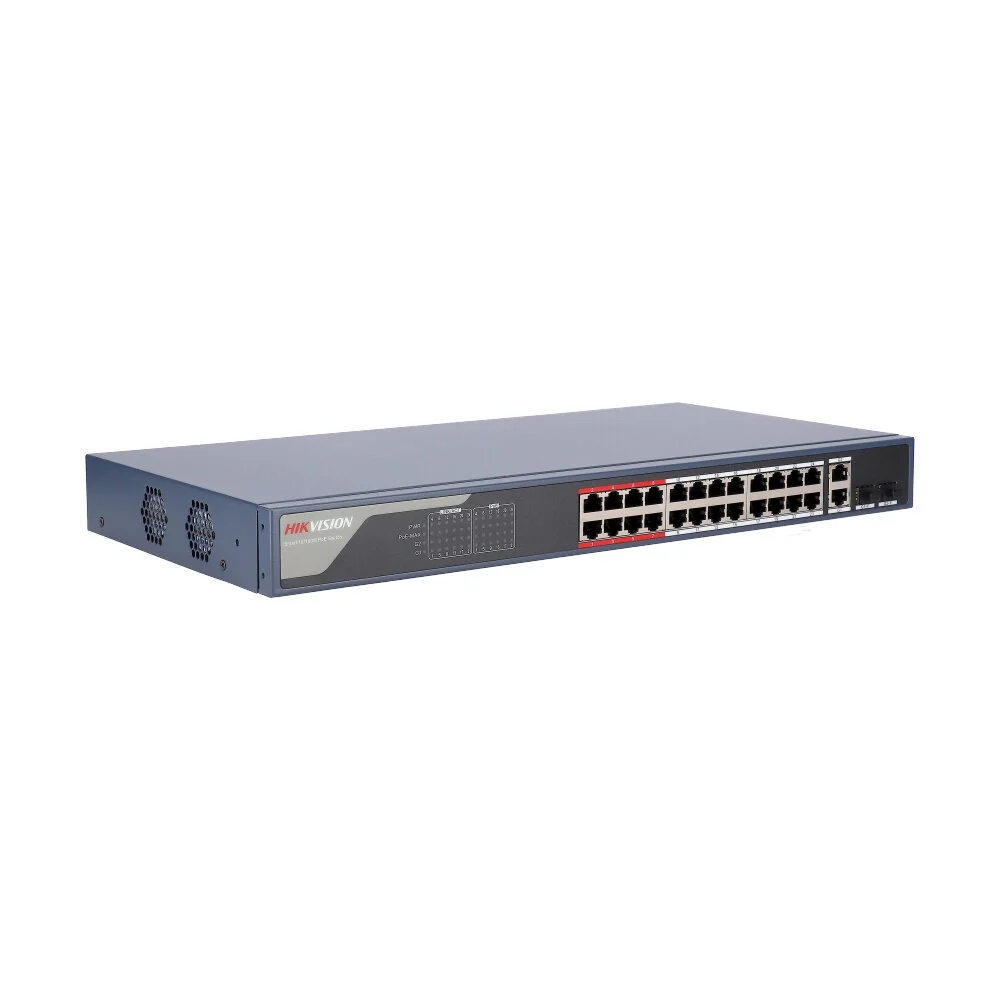

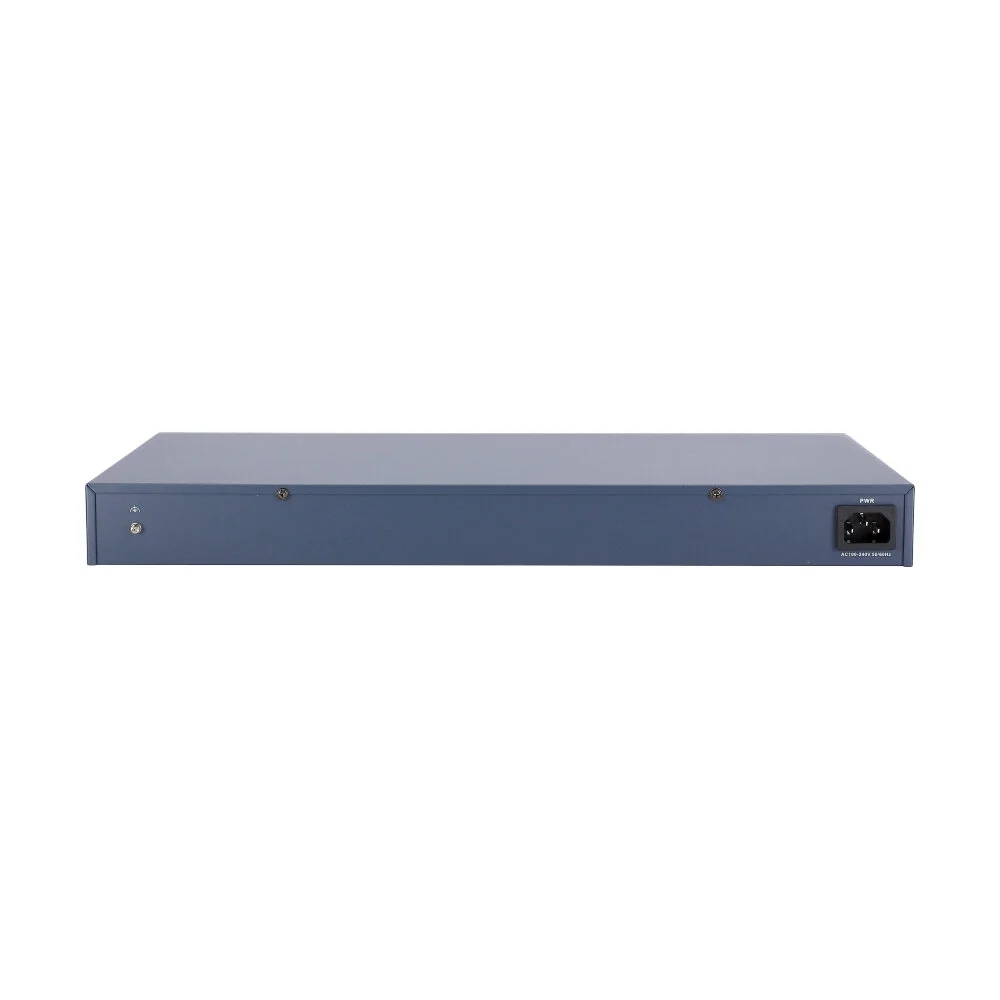

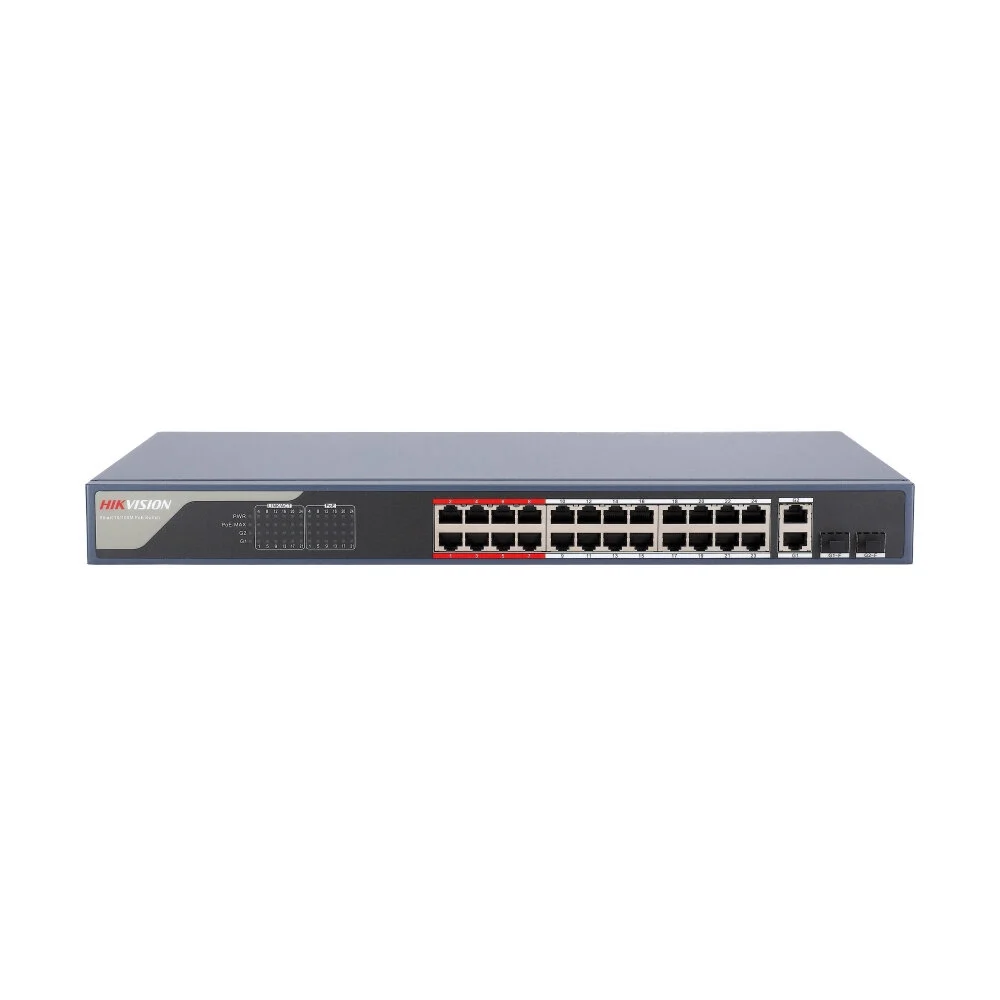

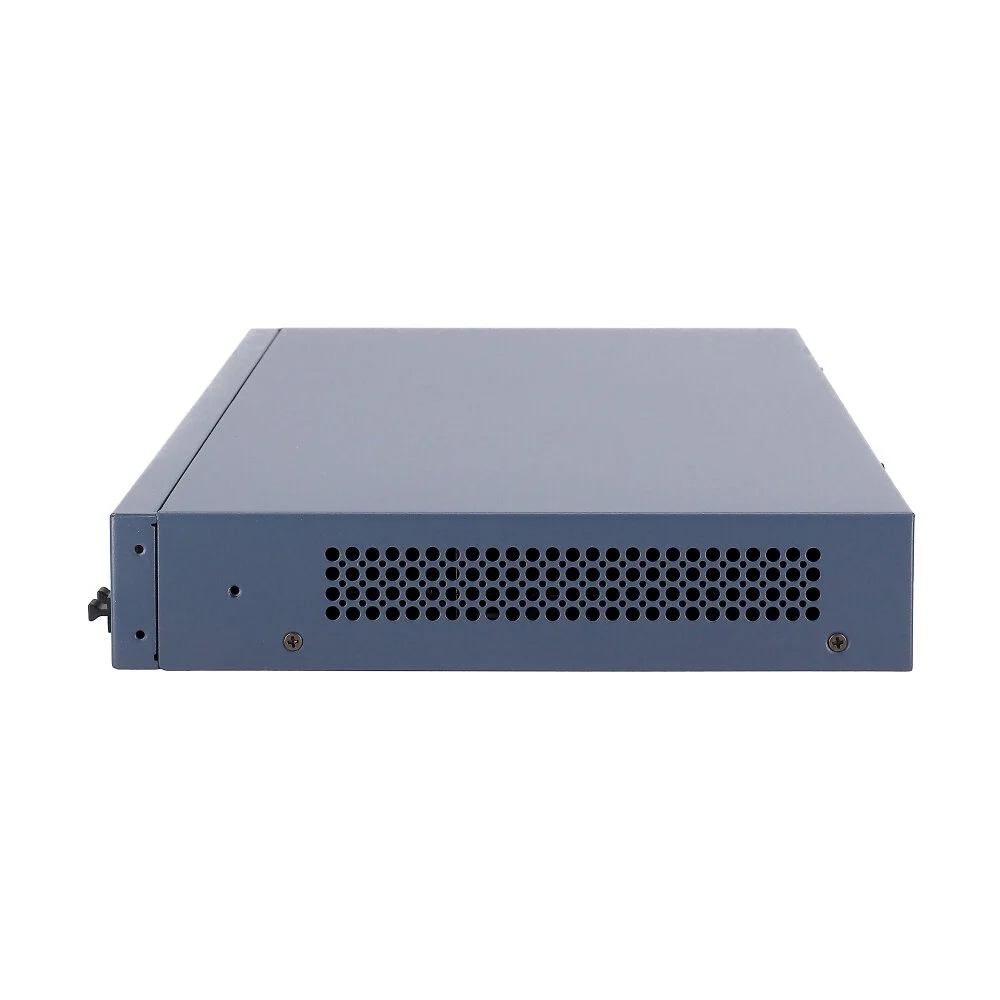

| Model | DS-3E1326P-EI |
| Network Interface | • 24× 10/100 Mbps PoE port (370W) • 2× Gigabit combo |
| USB Port | NONE |
| Standards and Protocols | • IEEE 802.3af,IEEE 802.3at |
| Switching Capacity | • Whole-Device Performance: 14.8 Gbps • Port Performance: 8.8 Gbps |
| Transmission Method | N/A |
| MAC Address Table | • 16 K |
| Forwarding Rate | • Whole-Device Performance: 11.01 Mpps • Port Performance: 6.55 Mpps |
| Jumbo Frame | N/A |
| Buffer Architecture | N/A |
| CPU | N/A |
| CPU Memory | N/A |
| Flash Memory | N/A |
| LED Indicators | N/A |
| Management | • Support device management via web. |
| VLAN | • VLAN is used for network scale planning and network health improvement. • Support 802.1Q. • Configurable VLAN ID from 1-4094. • Support Trunk, Access port mode. • Support Max. 4094 VLAN. |
| Security | • Ports 1 to 24: port isolation mode to improve network security • Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| Firewall | NONE |
| Features | • Support PoE watchdog to detect and restart the cameras that do not respond |
| MTBF | N/A |
| Fan Quantity | N/A |
| Material | • Metal |
| PoE | • PoE Power : Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) • PoE PortPoE : Ports 1 to 24 • Max. Port : Power30 W • PoE Power Budget : 370 W |
| Power Supply | • 100-240 VAC, 50/60 Hz, Max. 6.3 A |
| Power Consumption | • 400 W |
| Environment | • Operating Temperature : 0 °C to 45 °C (0 °F to 113 °F) • Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity : 5% to 95% (no condensation) • Relative Humidity : 5% to 95% (no condensation) |
| Certifications | • CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
| Dimension | (W x D x H) : 440.00 x 22.00 x 4.40 cm |
| Net Weight | 2.83 KG |
