คำอธิบาย
| Brand | ZyXEL |

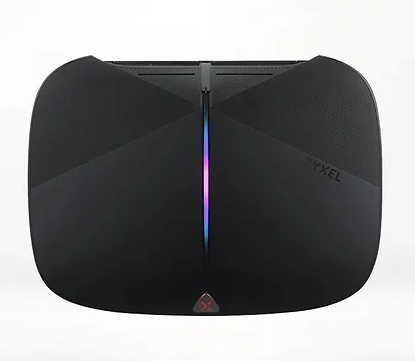

| Model | NBG7815 ARMOR G5 |
| Standards | IEEE 802.11 b/g/n/ax 2.4 GHz IEEE 802.11 a/n/ac/ax 5 GHz 2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40 MHz, up to 1.2 Gbps 5GHz AX: 8×8 (Tx/Rx) 1024 QAM 20/40/80/160 MHz, up to 4.8 Gbps Compatible with 802.11a/b/g/n/ac WiFi standards |
| Antennas | 13 Internal Antennas |
| Transmit/Receive | Transmit: – 1200Mbps* for 2.4 GHz – 4800Mbps* for 5 GHz Receive: – 1200Mbps* for 2.4 GHz – 4800Mbps* for 5 GHz |
| Frequency | 2.4GHz 5GHz |
| Processor Specs | CPU 64 bit quad-core 2.2 GHz |
| Interface | 1 x 100M/1000M/2.5Gbps Ethernet RJ-45 port with auto MDI/MDIX support 1 x 100M/1000M/2.5G/5G/10Gbps Ethernet RJ-45 port with auto MDI/MDIX support 4 x 10M/100M/1000Mbps Ethernet RJ-45 ports with auto MDI/MDIX Support |
| USB Interface | 1 x USB |
| Button | Reset Button |
| Memory | 4GB Flash/ 1GB RAM |
| Operation Mode | Router mode Access point mode |
| Power Supply | 19V/2.1A |
| Power Consumption | 39W max. |
| Environment | Operating Temperature : 0°C to 40°C (32°F to 104°F) Operating Humidity : 10% to 90% (Non-condensing) Storage Temperature : -30°C to 70°C (-22°F to 158°F) Storage Humidity : 10% to 90% (Non-condensing) |
| Certification | Safety : CE-LVD, BSMI EMC : CE, FCC, BSMI, EAC |
| Package Contents | Wireless router Power adapter Ethernet cable Quick start guide (combined with warranty form) |
| Dimension | (W x D x H) : 24.80 x 18.20 x 6.60 cm |
| Net Weight | 1.00 KG |
| Package Dimension | (W x D x H) : 37.50 x 23.50 x 7.50 cm |
| Gross Weight | 1.80 KG |
| Volume | 6,609.38 cm3 |
