| Brand | TP-LINK |
| Model | Archer BE230 |
| Standards | • 5 GHz: 2882 Mbps (802.11be) • 2.4 GHz: 688 Mbps (802.11be) |
| Antennas | • 4× External Antennas |
| Transmit/Receive | N/A |
| Frequency | • 5 GHz / 2.4 GHz |
| Range | • Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| Wireless Functions | • Multi-Link Operation (MLO) • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
| Processor Specs | N/A |
| CPU CORE COUNT | N/A |
| Size of RAM | N/A |
| LEDS | • LED Button |

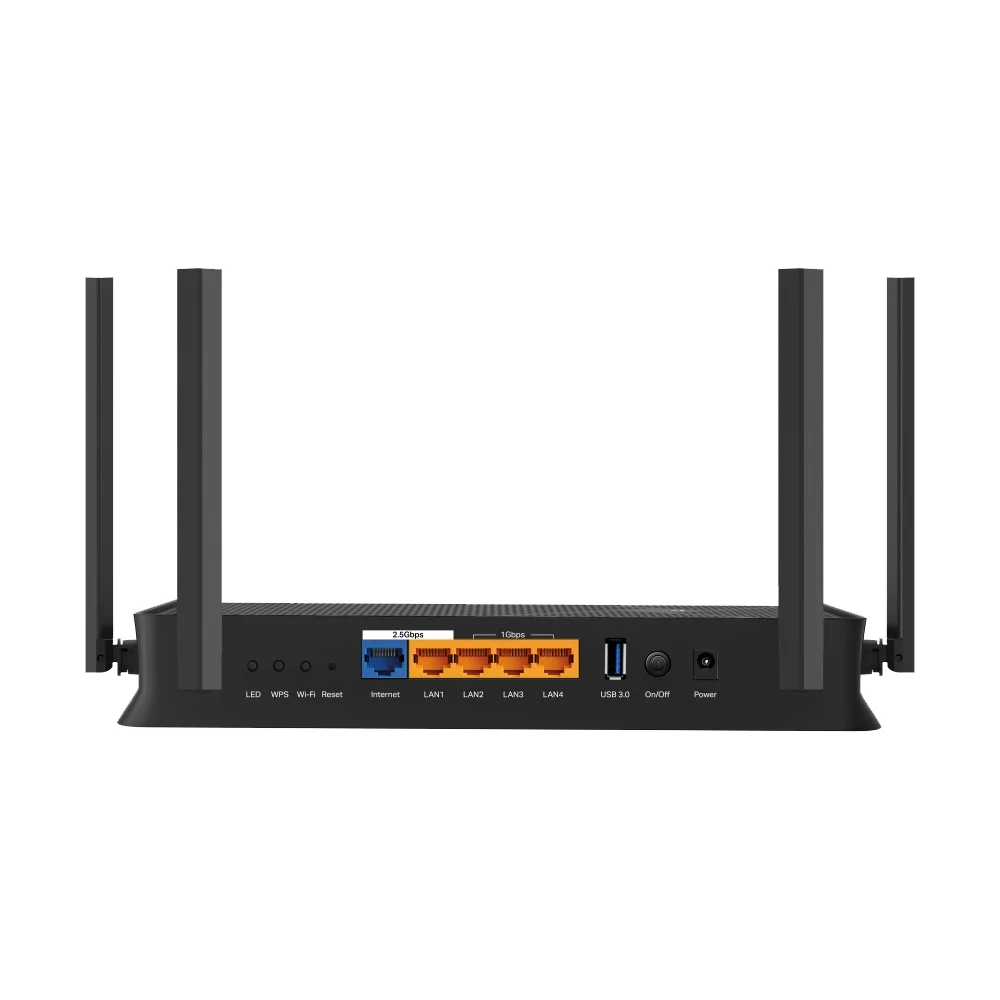

| Interface | • 1× 2.5 Gbps WAN • 1× 2.5 Gbps LAN • 3× 1 Gbps LAN |
| USB Interface | • 1× USB 3.0 |
| Button | • Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button • Reset Button |
| Power Switch | YES |
| Data Rate | • 5 GHz: 2882 Mbps • 2.4 GHz: 688 Mbps |
| Operation Mode | • Router Mode • Access Point Mode |
| Management | • Tether App • Webpage |
| Firewall | • SPI Firewall |
| VPN Support | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
| IPv6 support | Support |
| Features | • EasyMesh-Compatible • TP-Link HomeShield |
| OS compatibility | N/A |
| System Requirements | • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser • Cable or DSL Modem (if needed) • Subscription with an internet service provider (for internet access) |
| Power Supply | • 12 V ? 2 A (US) • 12 V ? 1.5 A (EU) |
| Power Supply (PoE) | NONE |
| Power Consumption | N/A |
| Environment | • Operating Temperature: 0°C~40°C (32°F ~104°F) • Operating Humidity: 10%~90% non-condensing |
| Certification | • CE, FCC, RoHS |
| Package Contents | N/A |
