คำอธิบาย
| Brand | TP-LINK |

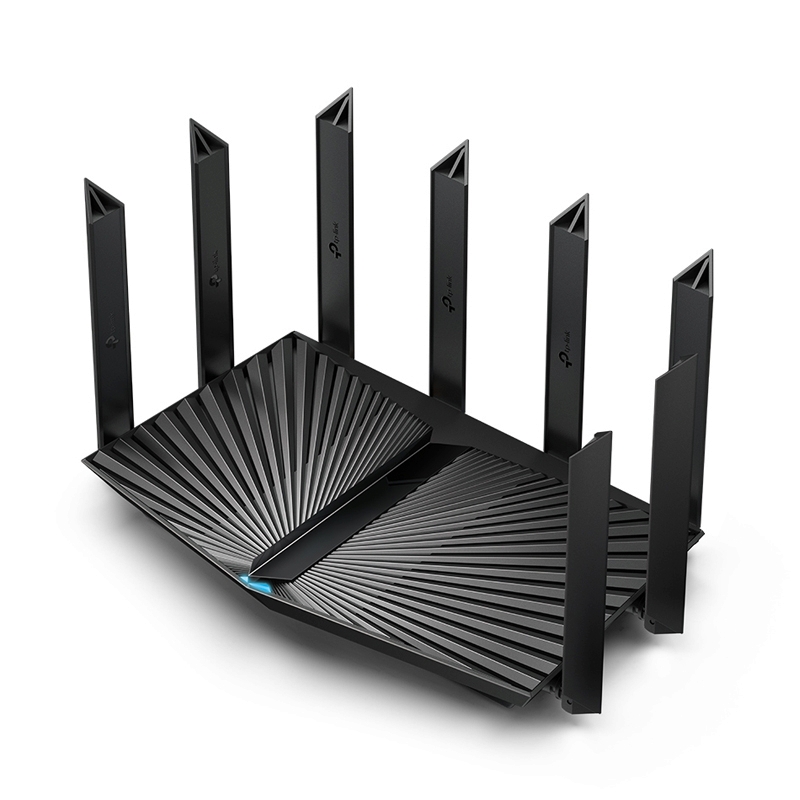

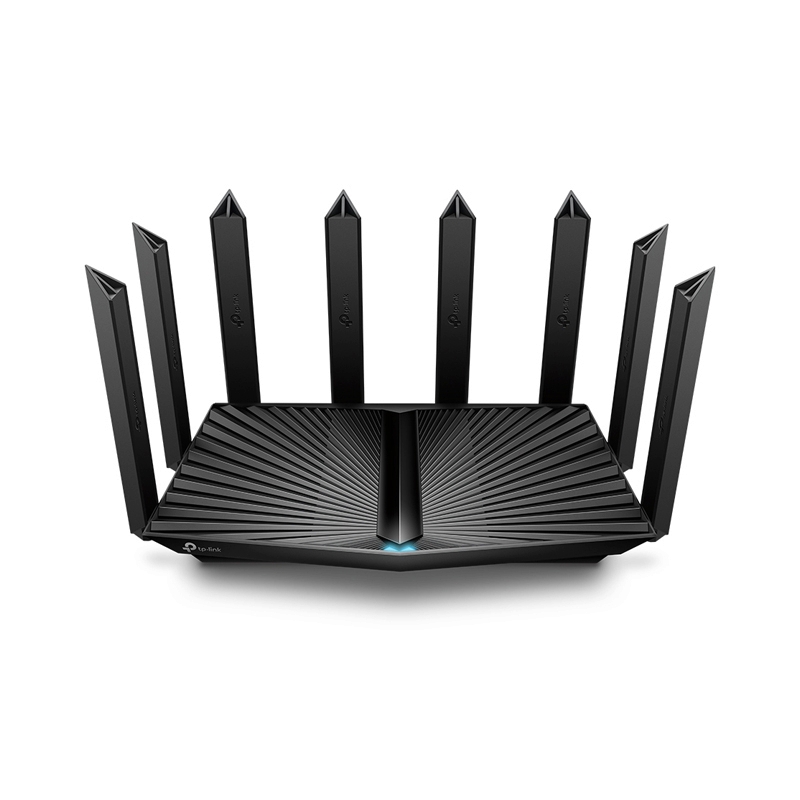

| Model | Archer AX80 |
| Standards | Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
| Antennas | 8× Fixed High-Performance Antennas |
| Transmit/Receive | 2.4 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -67dBm, 11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm, 11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm 5 GHz: |
| Frequency | AX6000 • 5 GHz: 4804Mbps (802.11ax, HE160) • 2.4 GHz: 1148 Mbps (802.11ax) |
| Range | 3+ Bedroom Houses• 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming • High-Power FEM |

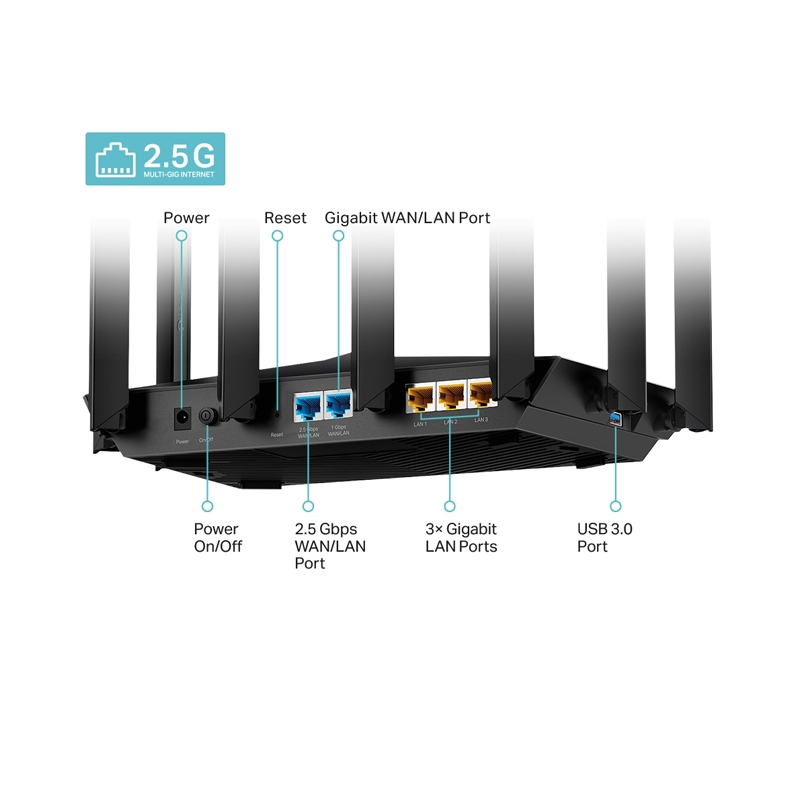

| Ports | 1 x 2.5 Gigabit WAN/LAN Port 1 x Gigabit WAN/LAN Port 3 x Gigabit LAN Ports |
| USB Interface | 1 x USB 3.0 Port USB Sharing: • FTP Server • Media Server • Samba Server |
| Button | • LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button |
| Operation Mode | • Router Mode • Access Point Mode |
| VPN Support | VPN Server • OpenVPN • PPTP • L2TPVPN Client • OpenVPN • PPTP • L2TP |
| IPv6 support | YES |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Power Supply | 12 V/3.3 A |
| Environment | Operating Temperature: 0°C~40°C(32°F~104°F) Operating Humidity: 10%~90% non-condensing |
| Certification | FCC, RoHS |

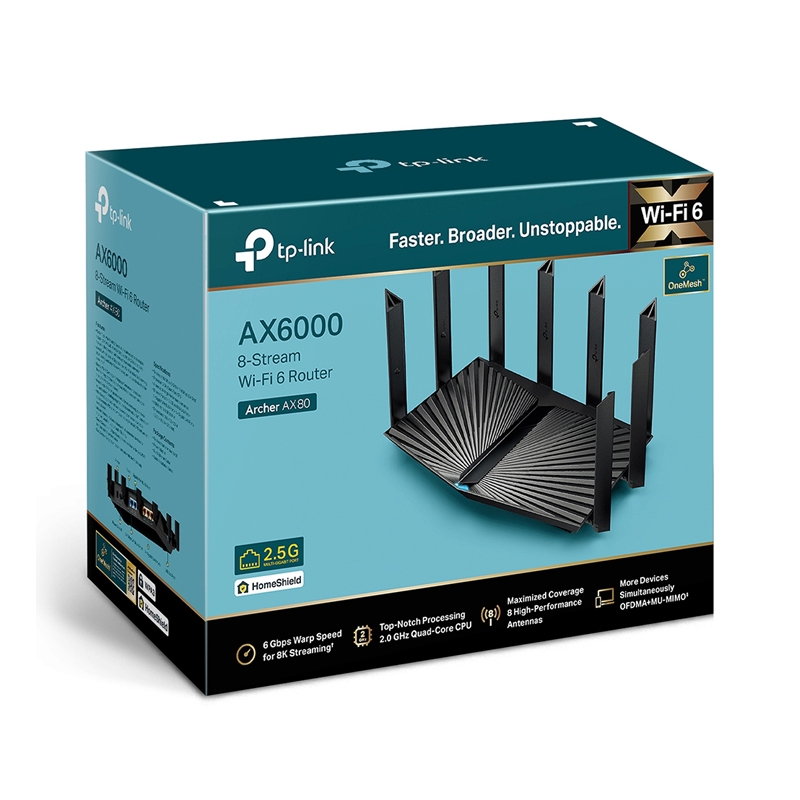

| Package Contents | • Wi-Fi Router Archer AX80 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| Dimension | (W x D x H) : 27.73 x 18.39 x 57.30 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 36.50 x 20.10 x 29.00 cm |
| Gross Weight | 2.31 KG |
| Volume | 21,275.85 cm3 |
