คำอธิบาย
| Brand | ENERMAX |
| Model | REVOLUTION D.F. X |
| Type | ATX 3.0 |
| Power Capacity | 1200W |
| Input Voltage | 100-240v |
| Input Current | 15-7A |
| Input Frequency Range | 47-63Hz |
| Operating Temperature | 40°C |
| Fan Size | 140mm |
| Efficiency | N/A |
| MTBF | >100K |
| Safety Regulation | N/A |
| Protection | OCP, OVP, UVP, OPP, OTP, SCP |
| Certification | 80 PLUS Gold |
| Modular | FULL Modular |
| ATX Main Connector | ATX/MB 20+4 Pin x 1 Connector |
| CPU Power Connector | CPU/EPS 4+4 Pin x 2 Connector |

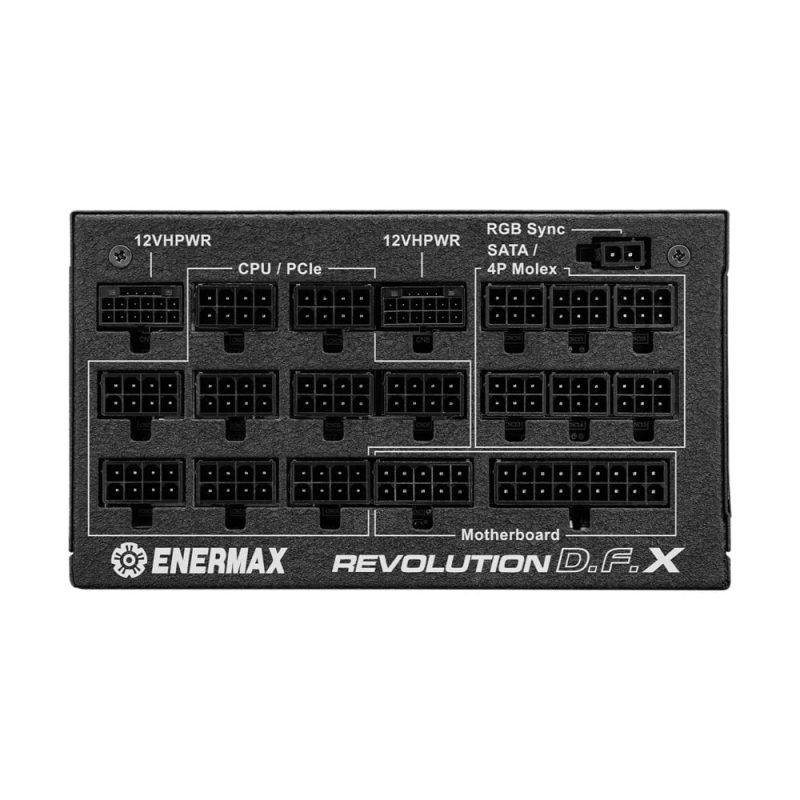

| PCIe Power Connector | PCI-E 6+2 Pin x 5 Connector 12VHPWR 12+4 pin x1 Connector |
| SATA Power Connector | SATA x 12 Connector |
| Peripheral Power Connector | x6 Connector |
| Floppy Power Connector | x1 Connector |
| RGB Power Connector | None |
| PSU Length | 150mm |
| Dimension | (W x D x H) : 14.00 x 15.00 x 8.60 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 20.50 x 32.00 x 11.00 cm |
| Gross Weight | 2.99 KG |
| Volume | 7,216.00 cm3 |
