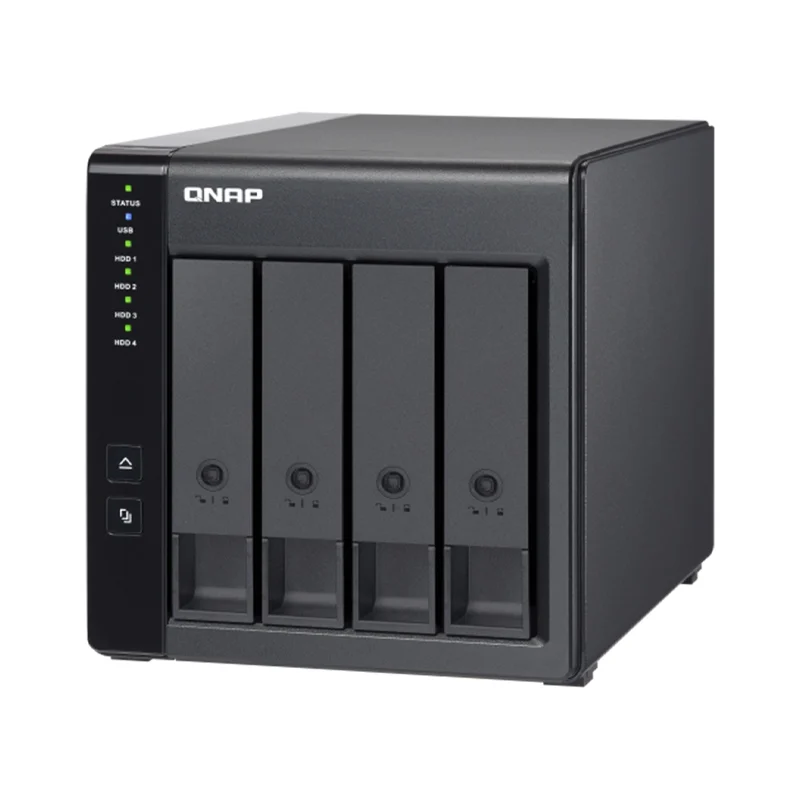

NAS QNAP (TR-004, Without HDD.)

฿11,050.00

The TR-004 USB 3.2 Gen 1 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.2 Gen 1 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.

1 USB 3.2 Gen 1 Type-C port* for faster data transfer.
*Maximum 1M USB cable is recommended.
2 Supports up to four SATA drives for reliable read and write performance
3 Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

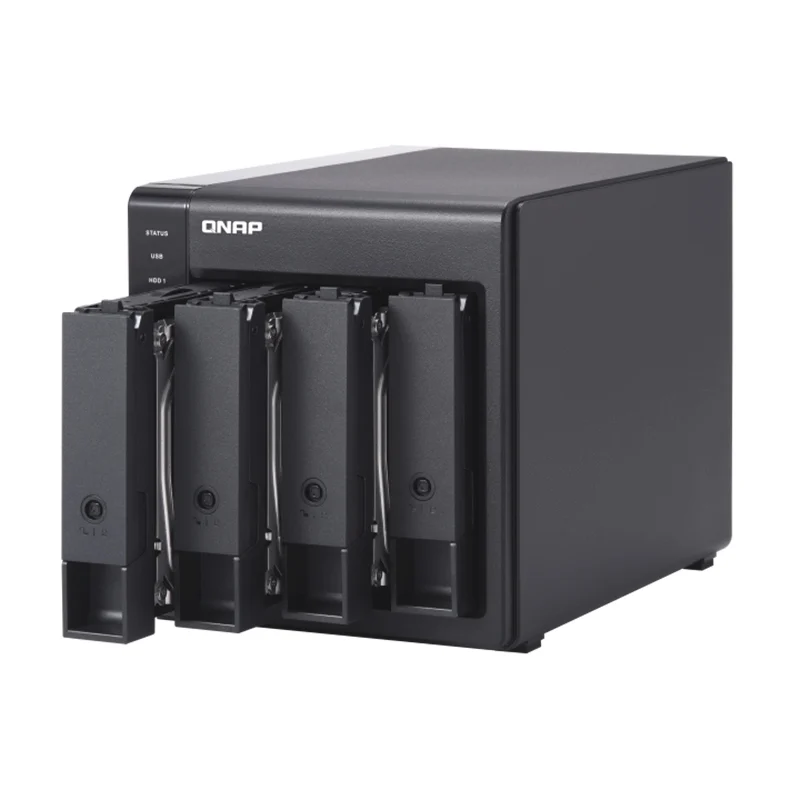

4 Lockable hard drive trays to prevent accidental drive removal.
5 Eject button for disconnecting the TR-004 from a NAS or computer*.
*Requires the QNAP External RAID Manager utility.

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0147774 หมวดหมู่:

คำอธิบาย

Brand QNAP
Model TR-004
CPU Model Micro processor with hardware RAID
Operating System
  1. QNAP NAS: QTS 4.3.6 and later
  2. Windows: Windows 8.1 and later
  3. Mac: macOS X 10.11 and later
System Memory N/A
Drive Interface SATA 6Gb/s, 3Gb/s hard disk drives
Number of Drives 4 Drive Bay
Display Panel None
LED Indicators monitoring with LED
USB Interface 1 x Type-C USB 3.2 Gen 1 (USB 3.2 Gen 1)
LAN Interface None
Memory Slot N/A
RAID RAID 0/1/5/10
Special Features
  1. RAID rebuild in RAID 1/5/10.
  2. System, fan, and drive failure monitoring with LED and audio alerts.
  3. System sleep during USB cable disconnection and host device hibernation* or shut down.
    *Some hosts may not be supported.
  4. The unused disk drives automatically become the hot spare ones for the RAID 1 and RAID 5 types.
Cooling Fans 1 x 120mm, 12VDC
Power Supply 65W adapter (12VDC), 100-240VAC
Power Consumption HDD Sleep Mode 4.17 W
Operating Mode, Typical 18.21 W
*Tested with drives fully populated.
Environment Operating Temperature0 – 40 °C (32°F – 104°F)
Storage Temperature-20 – 70°C (-4°F – 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Certification N/A

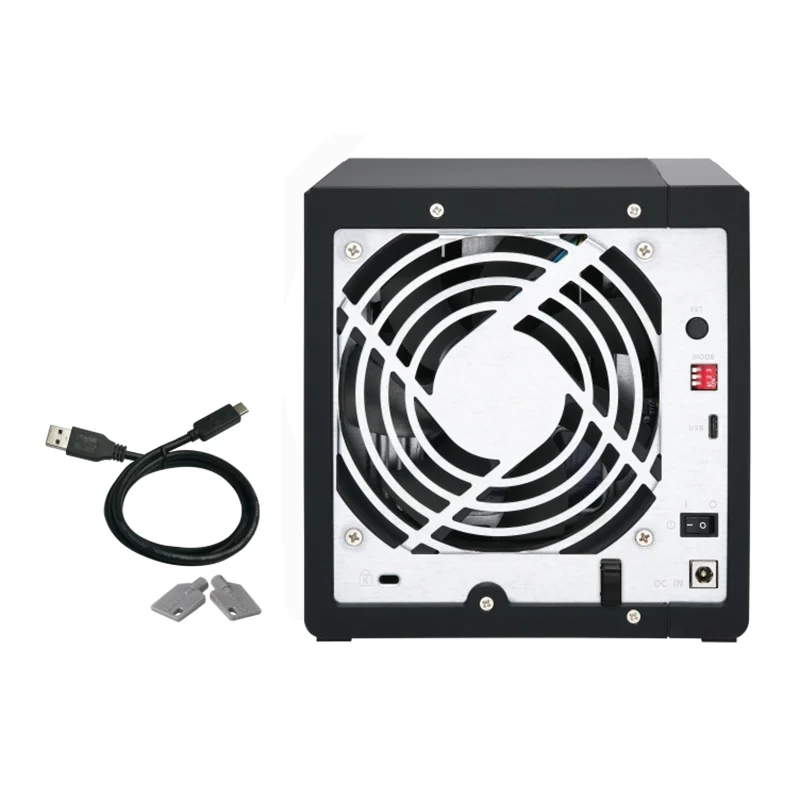

Packaging Content TR-004 external RAID enclosure
AC power adapter x 1
Power Cord x 1
USB Type-C to Type-A connector cable x 1
Drive tray keys x 2
USB cable clip x 1
Screws for 2.5-inch drives x 12
Screws for 3.5-inch drives x 16
Quick Installation Guide (QIG)
Dimension (W x D x H) : 21.90 x 16.02 x 16.85 cm
Net Weight 1.85 KG
Package Dimension (W x D x H) : 24.50 x 30.50 x 31.50 cm
Gross Weight 3.00 KG
Volume 23,538.38 cm3
