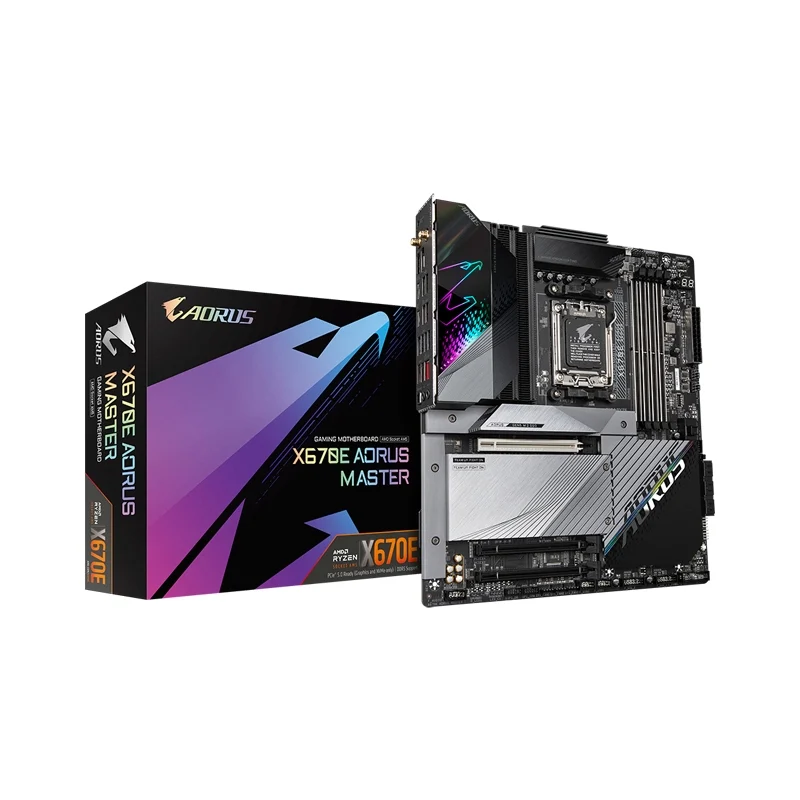

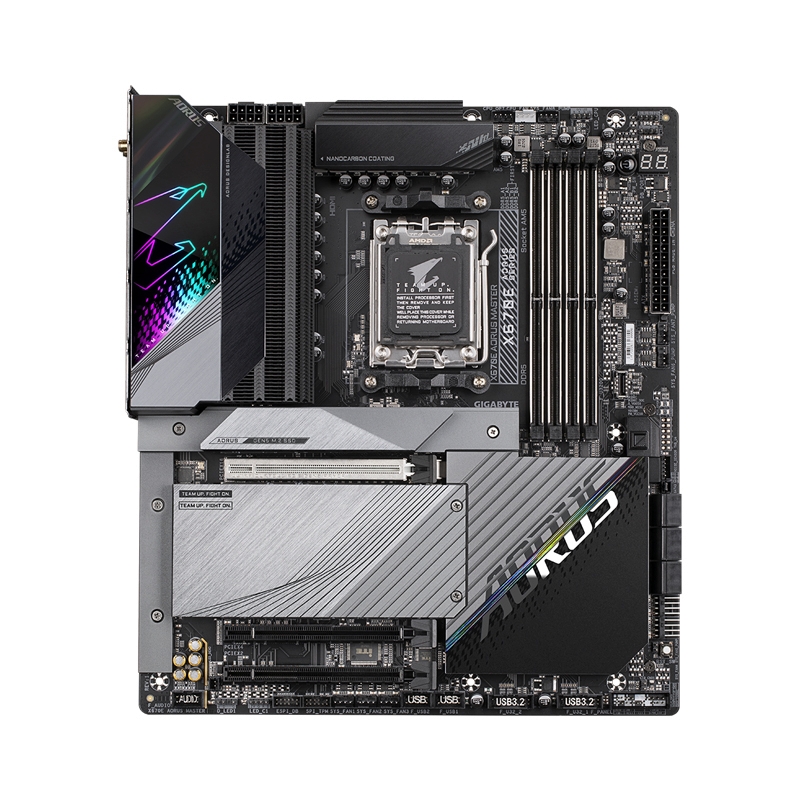

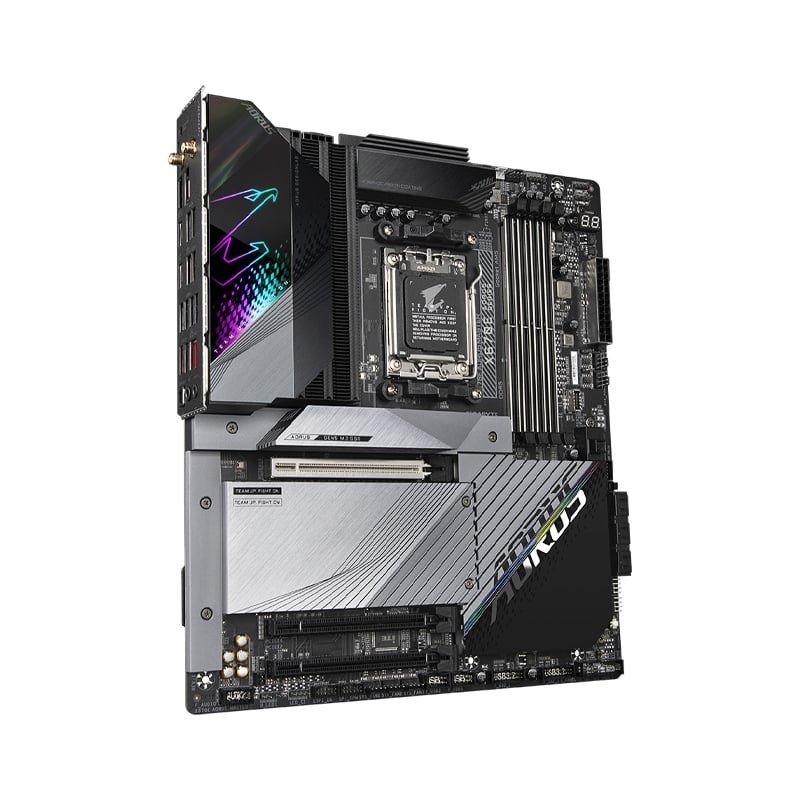

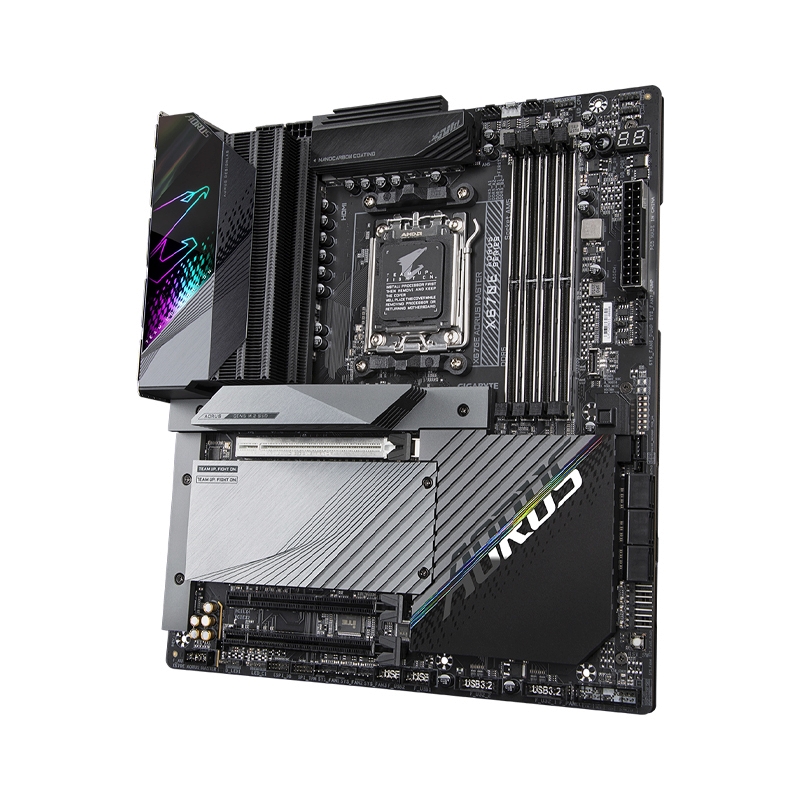

MAINBOARD (AM5) GIGABYTE X670E AORUS MASTER DDR5 (REV. 1.1)

฿18,750.00

  • Support CPU : AMD Ryzen 7000 Series Processors
  • From Factor : E-ATX
  • Chipset : AMD X670 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 8000(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 4 slots
  • SATA III 6G : 6 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 6E
  • Dual Channel DDR5?4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Next Generation Storage?2*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
  • Extended Connectivity?DP, HDMI, USB-C® with DP Alt Mode, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

สินค้าหมดแล้ว

รหัสสินค้า: A0155229 หมวดหมู่:

คำอธิบาย

Brand GIGABYTE
Model X670E AORUS MASTER DDR5 (REV 1.1)
CPU Support AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors

(Please refer “CPU Support List” for more information.)
CPU Brand AMD
Socket AM5
Chipset AMD X670
Memory Support
  1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Maximum Memory Bus 8000
Graphics 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.

1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® ALC1220-VB CODEC
    * The back panel line out jack supports DSD audio.
  2. Support for DTS:X® Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel output
    * You can change the functionality of an audio jack using the audio software. To configure
    7.1-channel audio, access the audio software for audio settings.
  5. Support for S/PDIF Out
Expansion Slots CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
    * Actual support may vary by CPU.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
    * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Maximum PCIe Version PCIe 5.0
Storage CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
    * Actual support may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
    * Actual support may vary by CPU.

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
  2. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2 Storage Type Support NVMe
M.2 Slot 4
USB CPU:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

  1. 2 x USB 2.0/1.1 ports on the back panel

Chipset:

  1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points

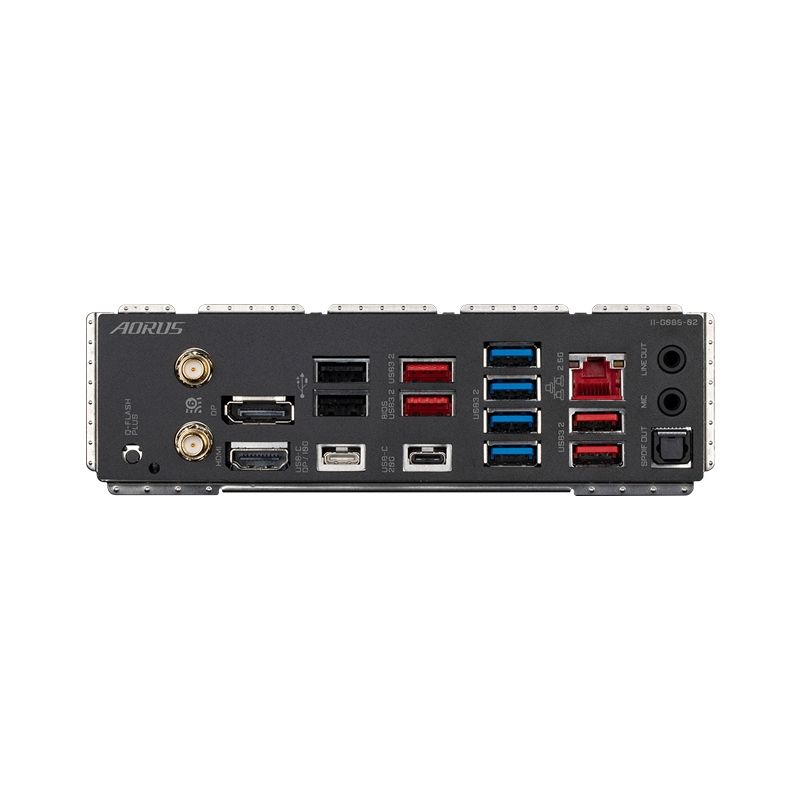

Back Panel Connectors 1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
Form Factor E-ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 35.00 x 30.00 x 8.00 cm
Gross Weight 2.94 KG
Volume 8,400.00 cm3
