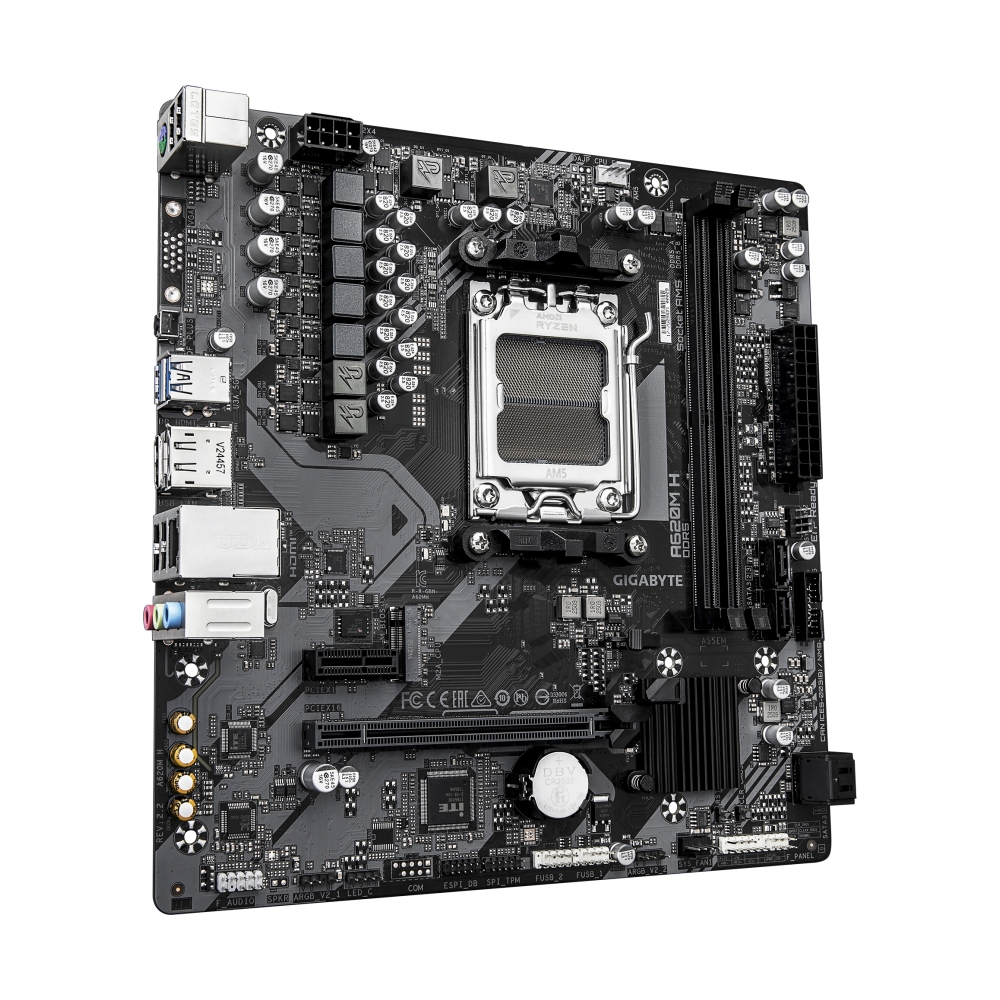

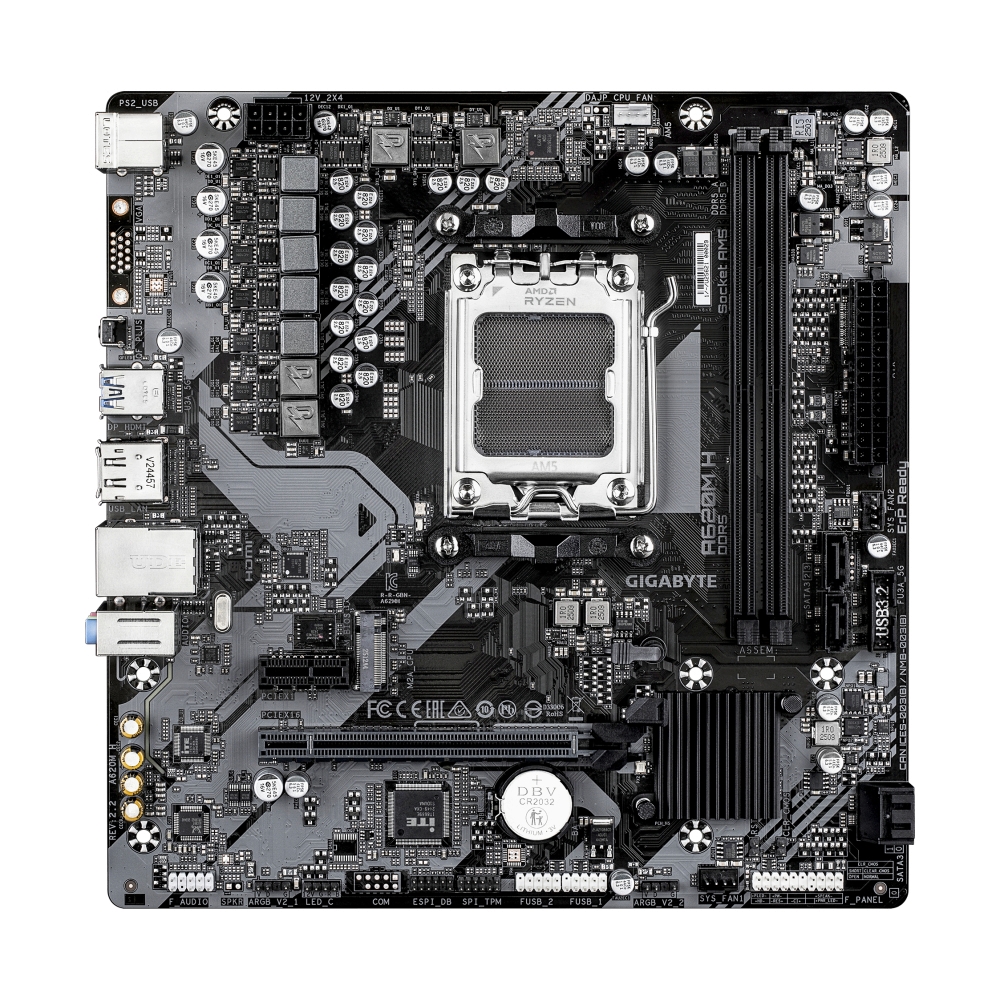

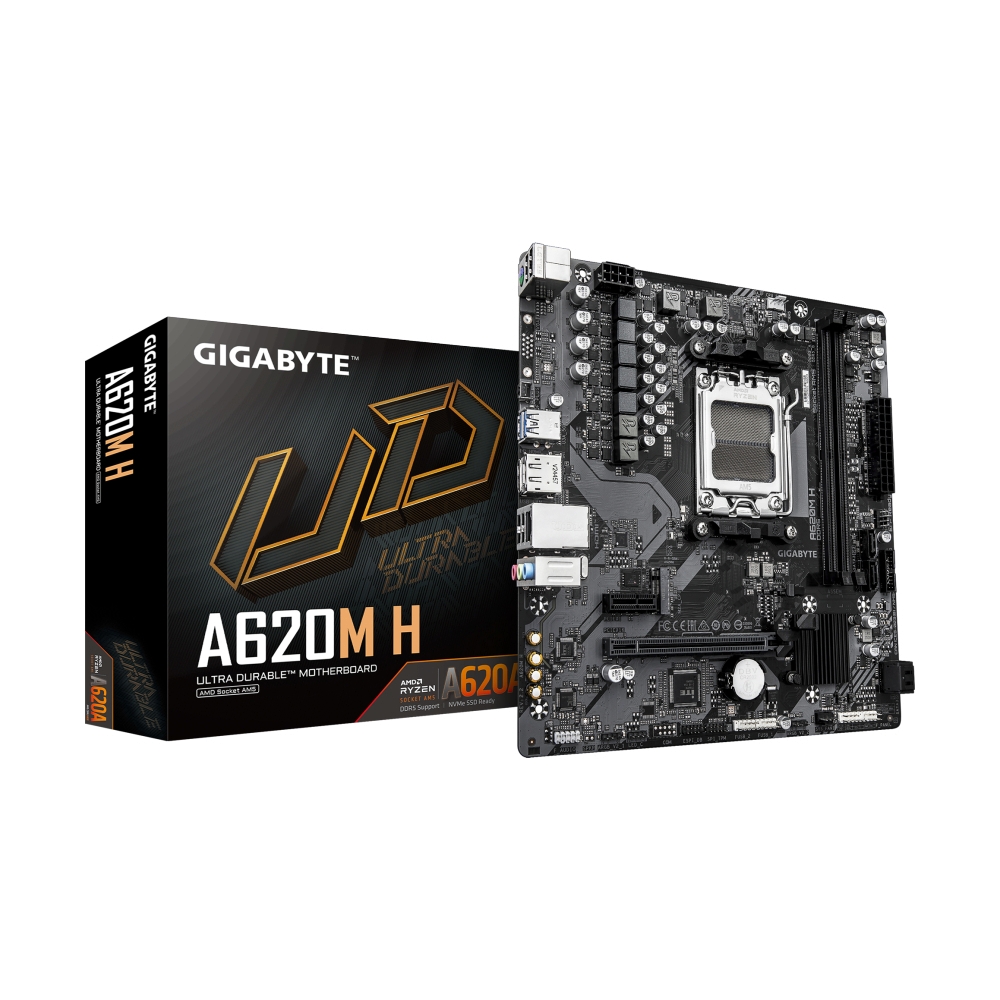

MAINBOARD (AM5) GIGABYTE A620M H DDR5 (REV 2.2)

฿2,390.00

  • Support CPU : AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Form Factor : Micro ATX
  • Chipset : AMD A620A Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 7600(O.C.)
  • Memory MAX : 128GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • Unparalleled Performance : 5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5 : 2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
  • **โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า
รหัสสินค้า: A0180785 หมวดหมู่: ,

คำอธิบาย

คุณสมบัติ MAINBOARD (AM5) GIGABYTE A620M H DDR5 (REV 2.2)

แบรนด์ / โมเดล
Brand GIGABYTE
Model A620M H DDR5 (REV 2.2)
ข้อมูลจำเพาะ
CPU Support AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Please refer “CPU Support List” for more information.)
CPU Brand AMD
Socket AM5
Chipset AMD A620A
Memory Support Support for DDR5 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Maximum Memory Bus 7600
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:

1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version.

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Multi Graphic Support None
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots 1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Maximum PCIe Version PCIe 4.0
Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2 Storage Type Support NVMe
M.2 Slot 1
การเชื่อมต่อ
USB CPU:
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB 2.0/1.1 port on the back panelChipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

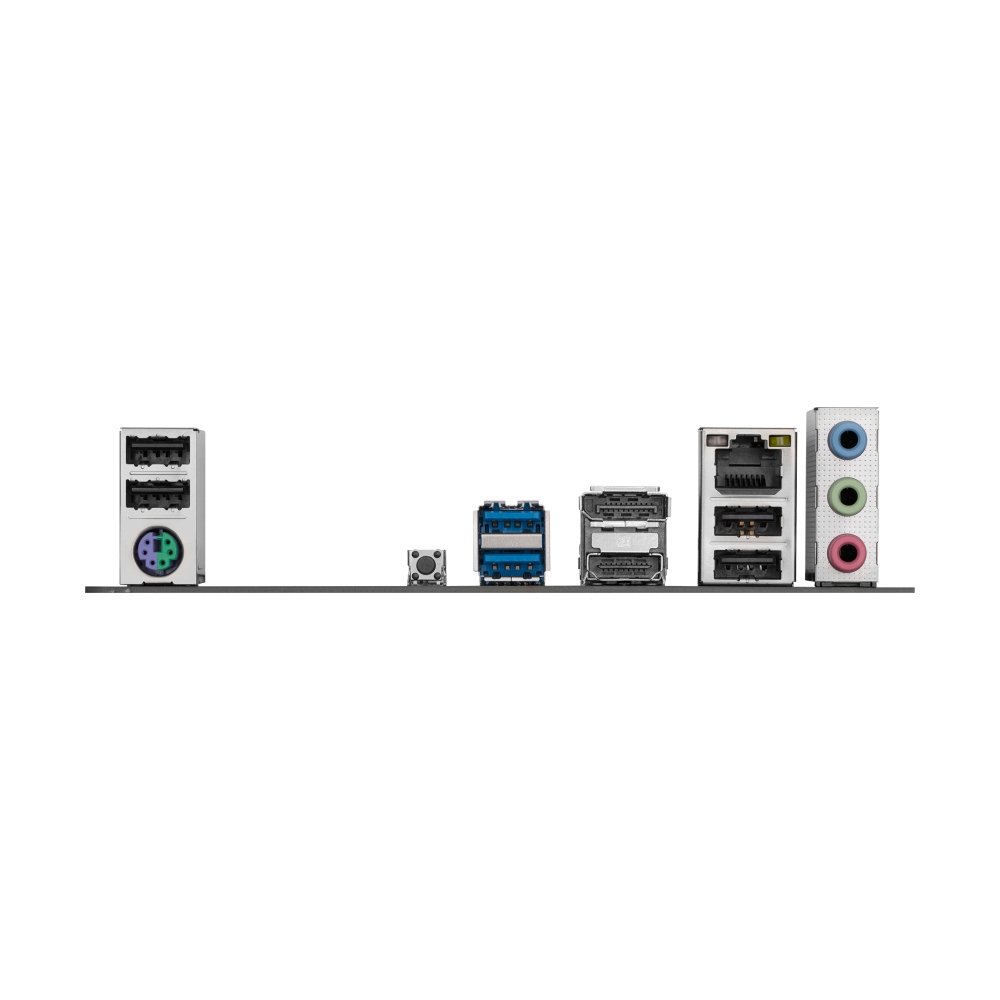

Back Panel Connectors 4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x HDMI port*
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU.
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Data Network None
กำลังไฟ
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
ข้อมูลทั่วไป
Dimension (cm) (W x L x H) : 23.00 x 22.50 x 0.00 cm
Net Weight (kg) 0.00 kg
Package Dimension (cm) (W x L x H) : 0.00 x 0.00 x 0.00 cm
Gross Weight (kg) 0.00 kg
Volume (cm³) 0.00 cm³
Form Factor Micro ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash Plus
Support for Q-Flash
Software Features Norton® Internet Security (OEM version)
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
Package Contents N/A
การรับประกัน
warranty 3Y
