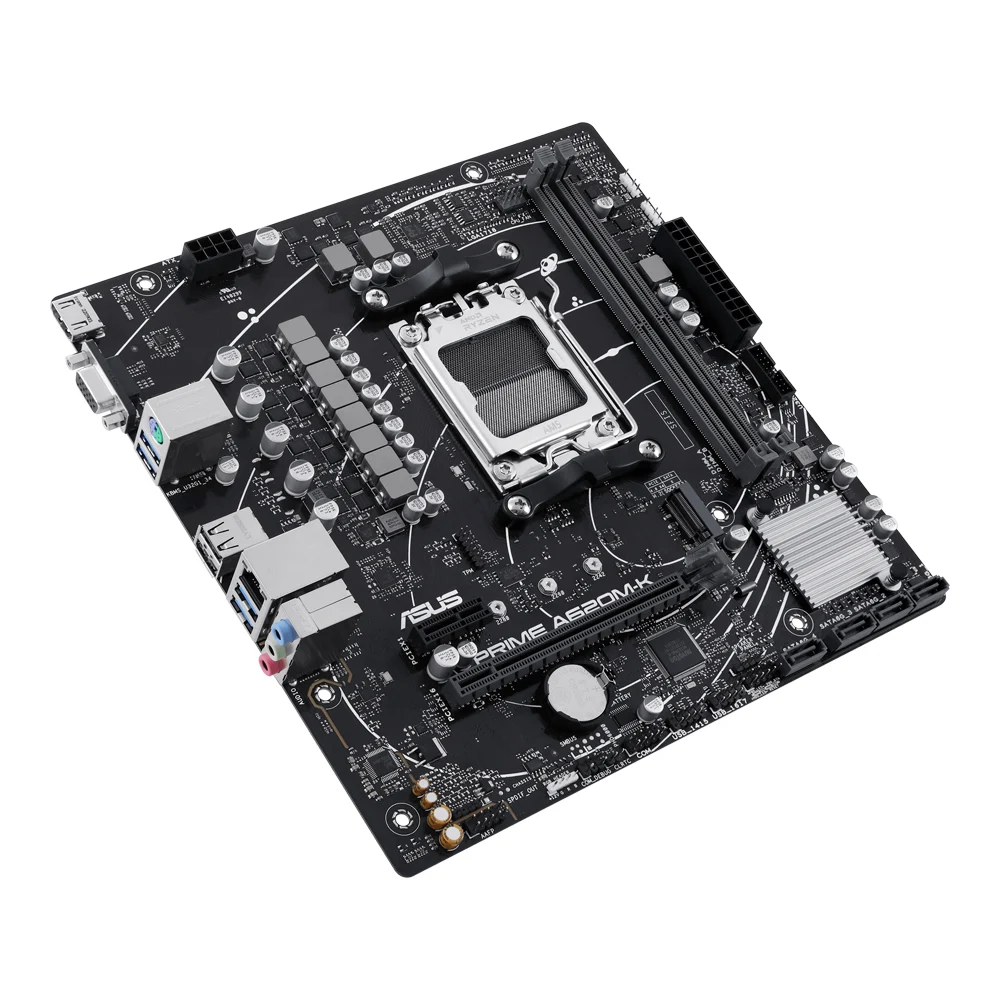

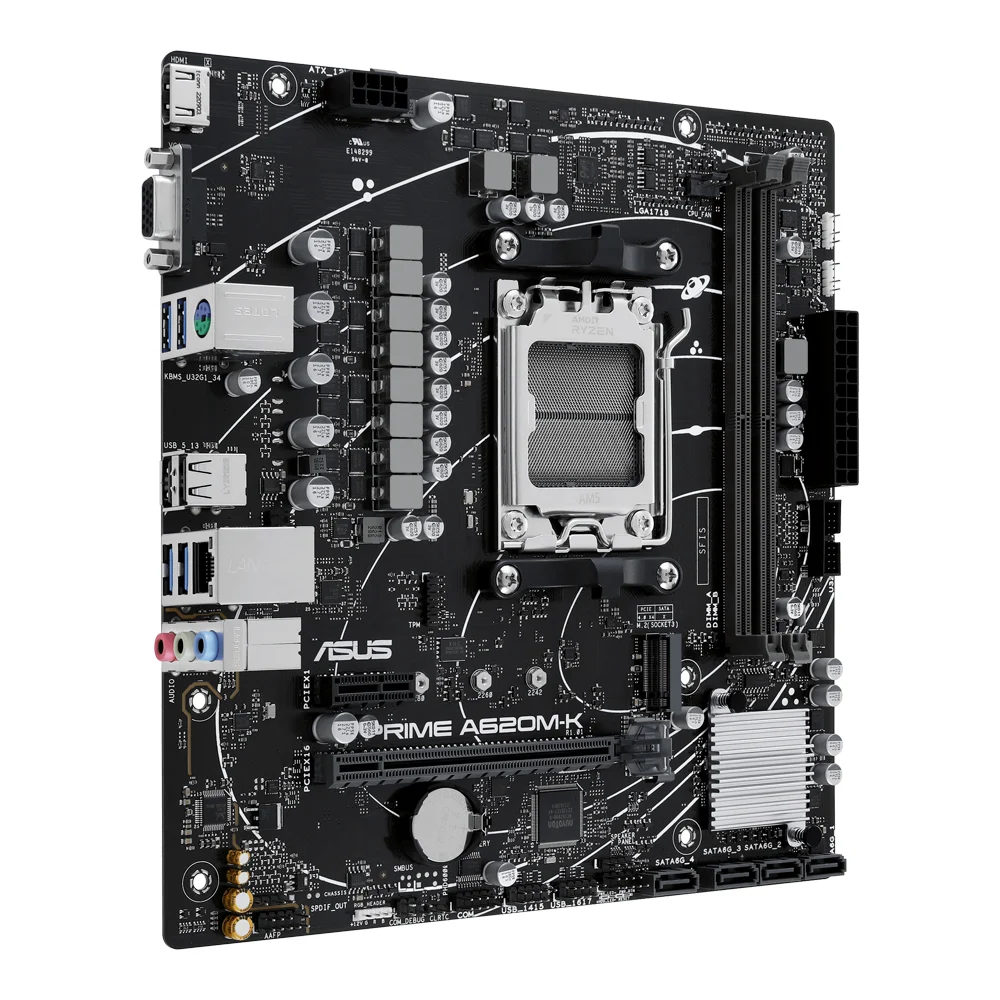

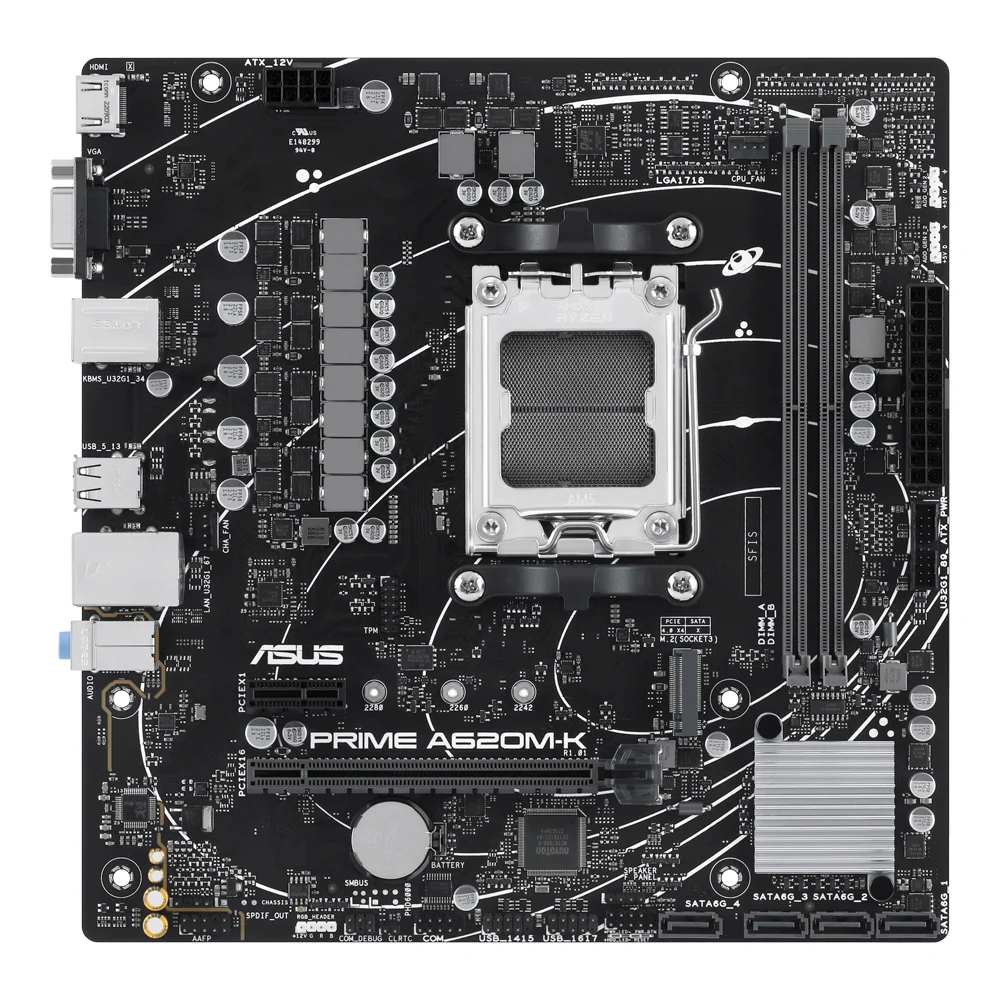

MAINBOARD (AM5) ASUS PRIME A620M-K DDR5

฿2,590.00

  • Support CPU : AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
  • Chipset : AMD® A620 Chipset
  • From Factor : Micro ATX
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Supports : up to 6400(O.C.)
  • Memory MAX 96GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : Realtek 1Gb Ethernet
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips
  • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0152848 หมวดหมู่:

คำอธิบาย

Brand ASUS
Model PRIME A620M-K (DDR5)
CPU Support AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Supports up to AMD 120W CPU

* Refer to www.asus.com for CPU support list.
CPU Brand AMD
Socket AM5
Chipset AMD A620 Chipset
Memory Support 2 x DIMM slots, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Bus 6400
Graphics 1 x VGA port
1 x HDMI™ port**

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
Multi Graphic Support N/A
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD A620 Chipset
1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Maximum PCIe Version PCIe 4.0
Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD A620 Chipset
4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
M.2 Storage Type Support NVMe
M.2 Slot 1
USB Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

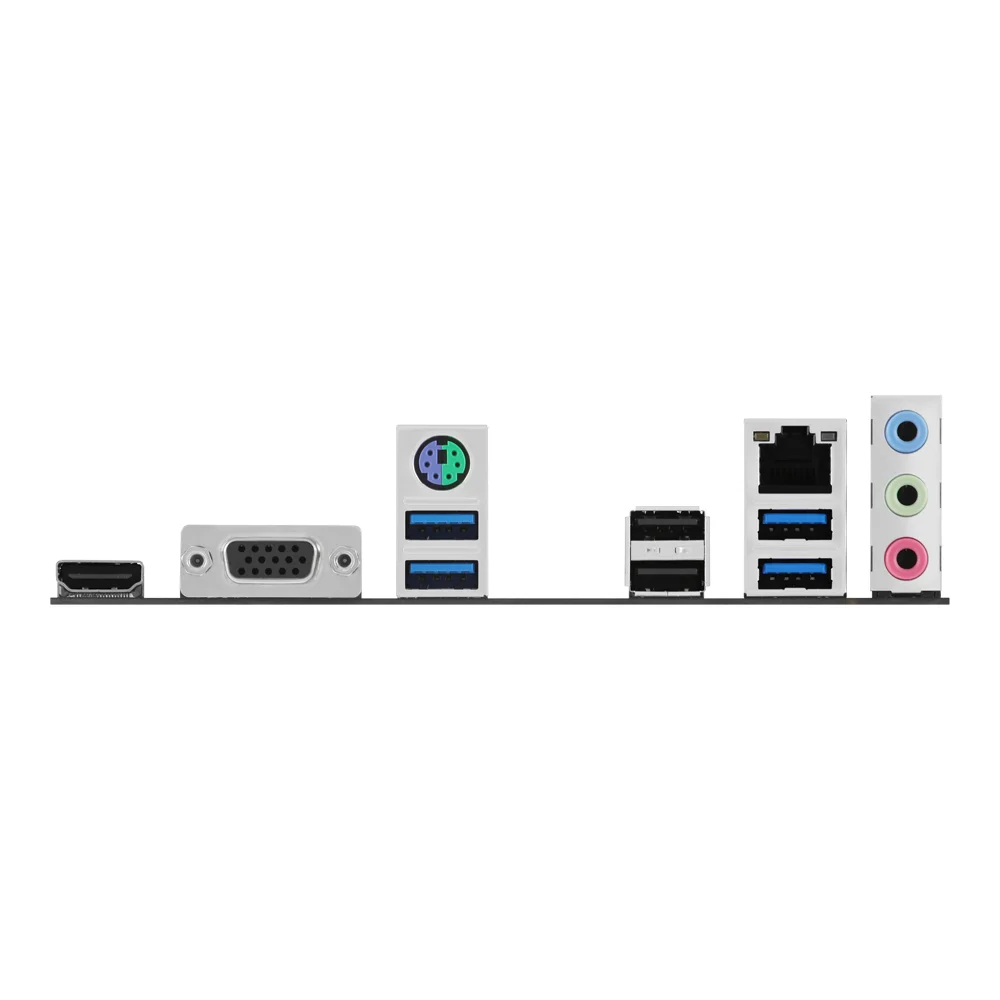

Back Panel Connectors 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
LAN 1 x Realtek 1Gb Ethernet
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O

ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot

ASUS Thermal Solution
– Aluminum heatsink design

Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features ASUS Exclusive Software

Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert
– Power Saving
– Two-Way AI Noise Cancellation

AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner

ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS

ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Operating System Support Windows® 11, Windows® 10 64-bit
Package Contents 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x User guide
Package Dimension (W x D x H) : 27.50 x 27.50 x 7.00 cm
Gross Weight 1.10 KG
Volume 5,293.75 cm3
