คำอธิบาย

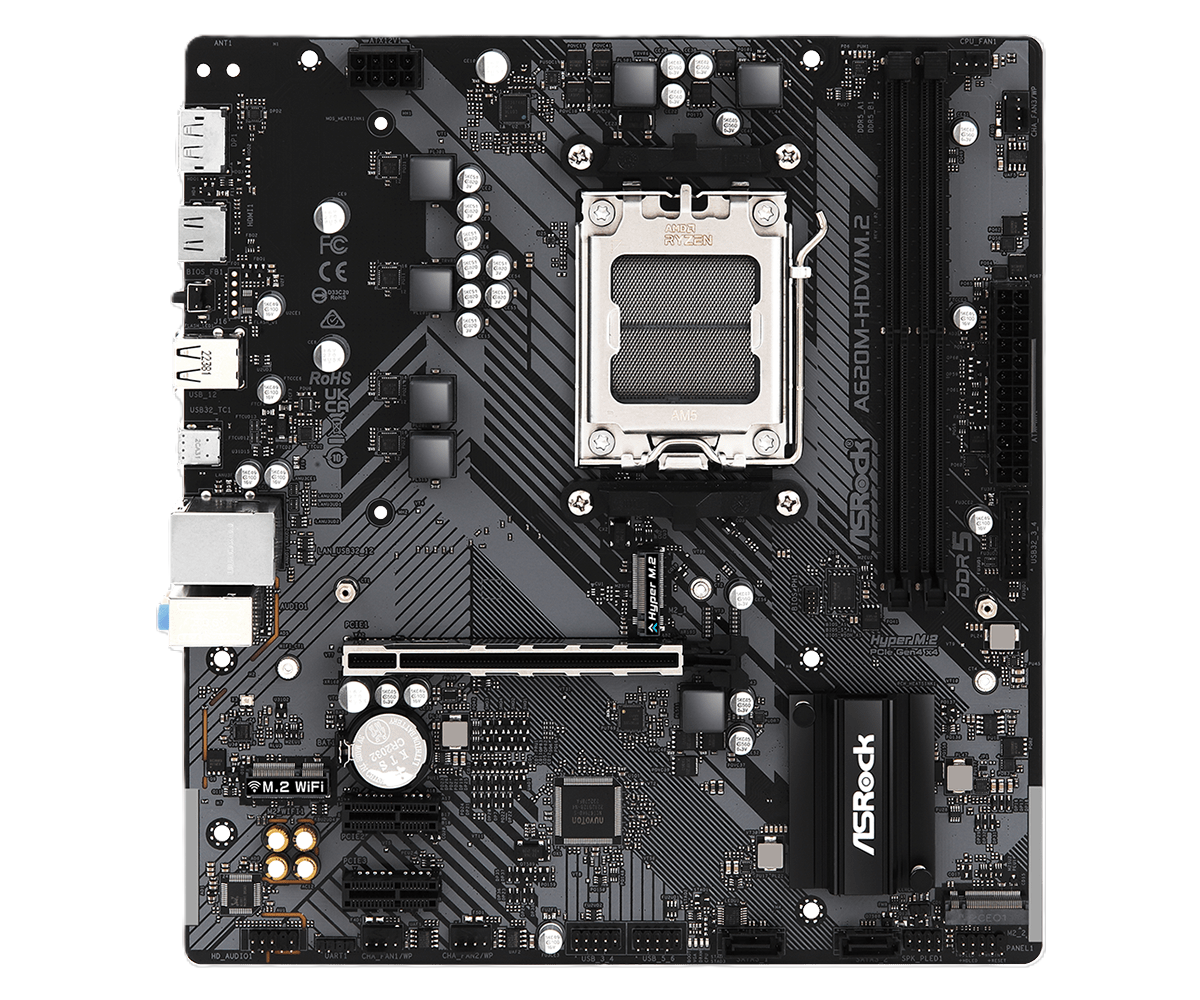

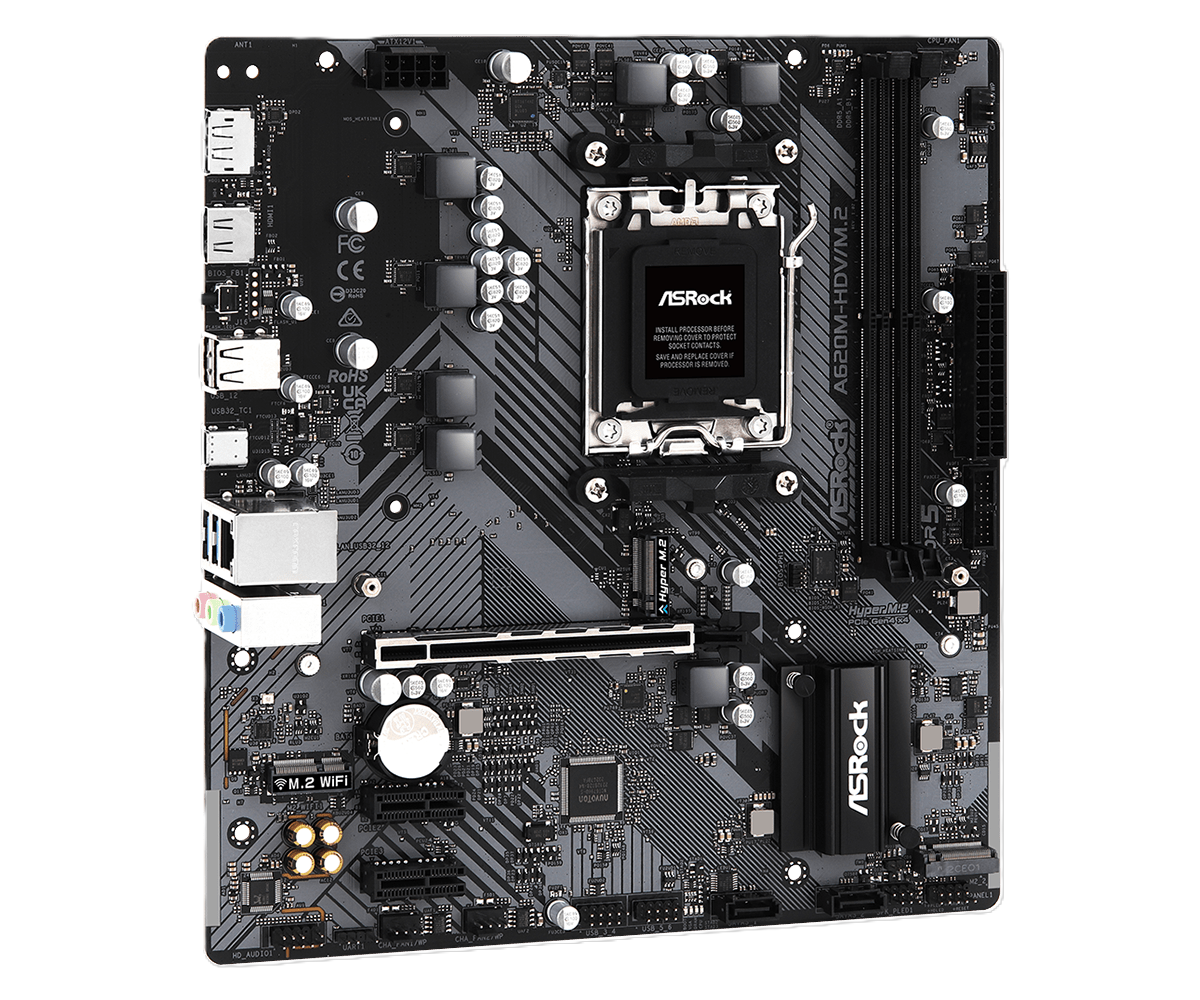

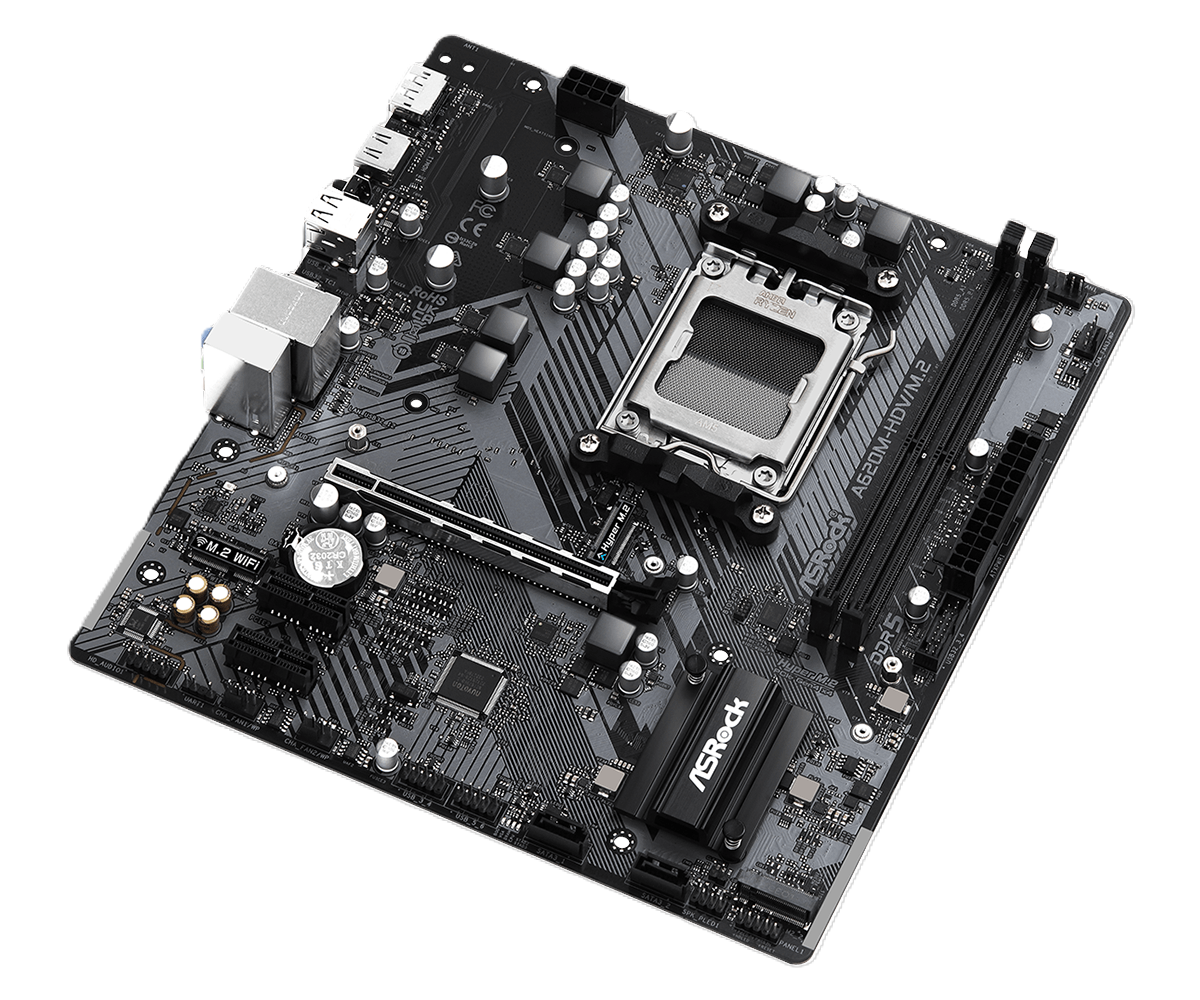

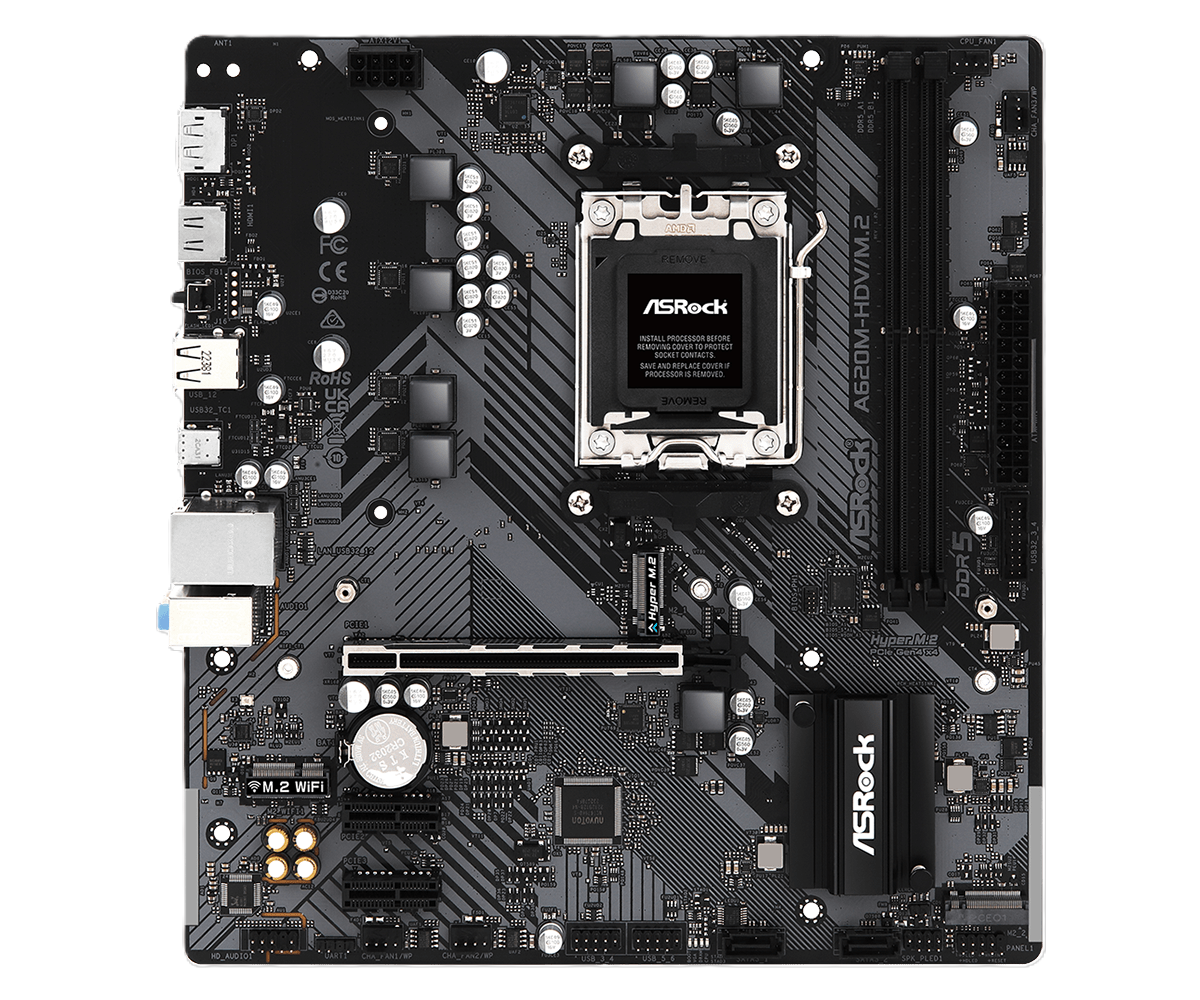

| Brand | ASROCK |
| Model | A620M-HDV/M.2 |
| CPU Support | Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors |
| CPU Brand | AMD |
| Socket | AM5 |
| Chipset | AMD A620 |
| Memory Support | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* Max. capacity of system memory: 96GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*Please refer to Memory Support List for more information. |
| Maximum Memory Bus | 6400 |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS / FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Multi Graphic Support | N/A |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| Expansion Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset: – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks |
| Maximum PCIe Version | PCIe 4.0 |
| Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* – 2 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
| M.2 Storage Type Support | PCIe 4.0 |
| M.2 Slot | 2 |
| USB | 1 x USB 3.2 Gen1 Type-C (Rear) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)*All USB ports support ESD Protection |
| Internal I/O Connectors | 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin)* 3 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)*CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1~3 / WP support the fan power up to 2A (24W). |

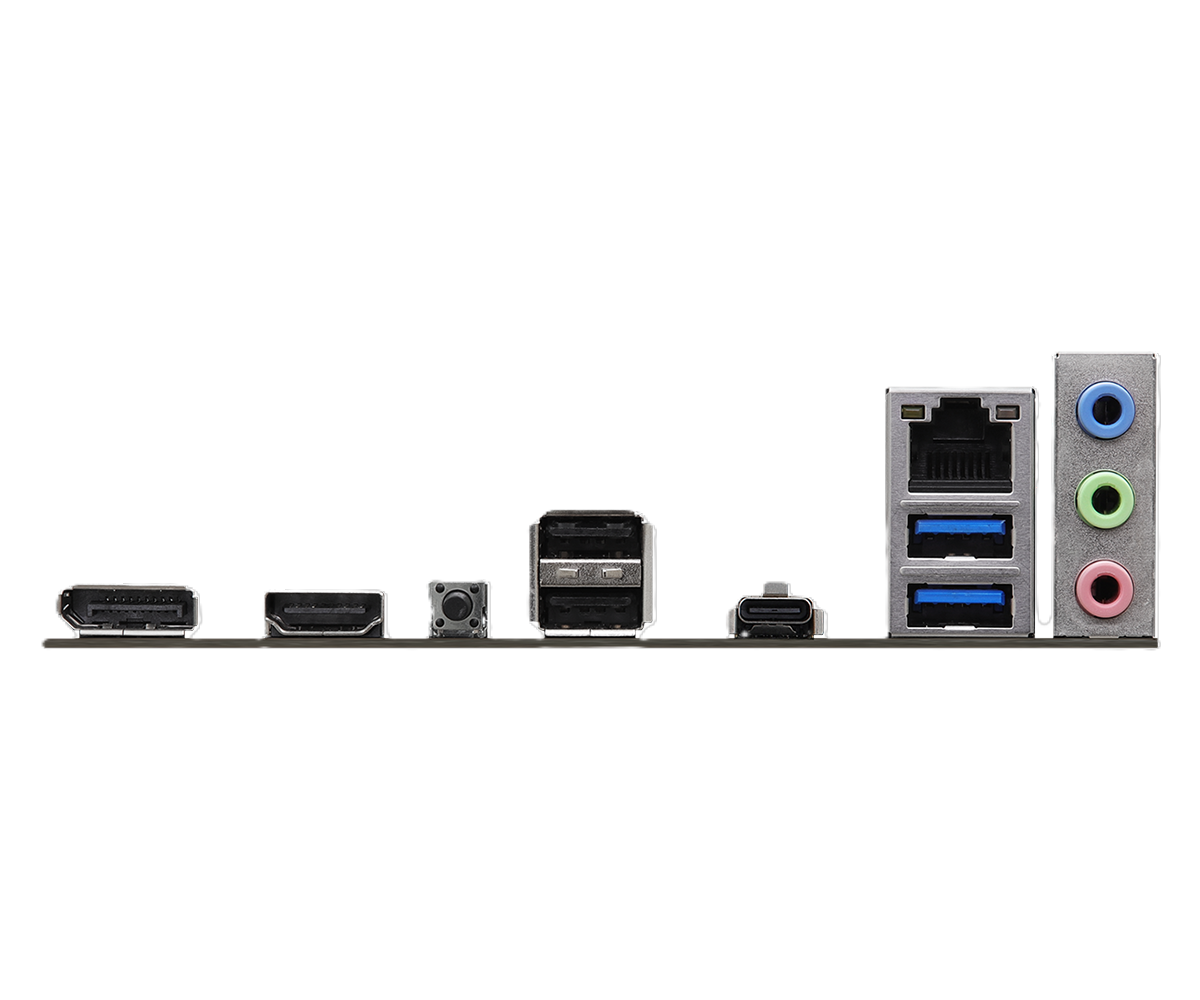

| Back Panel Connectors | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 2 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | Gigabit LAN 10 / 100 / 1000 Mb / s Realtek 8111H |
| Wireless Data Network | N/A |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Special Features | Superb Productivity – Dual Channel DDR5 Rock-Solid Durability – 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker< / a> |
| Software Features | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Operating System Support | Microsoft Windows 10 64-bit / 11 64-bit |

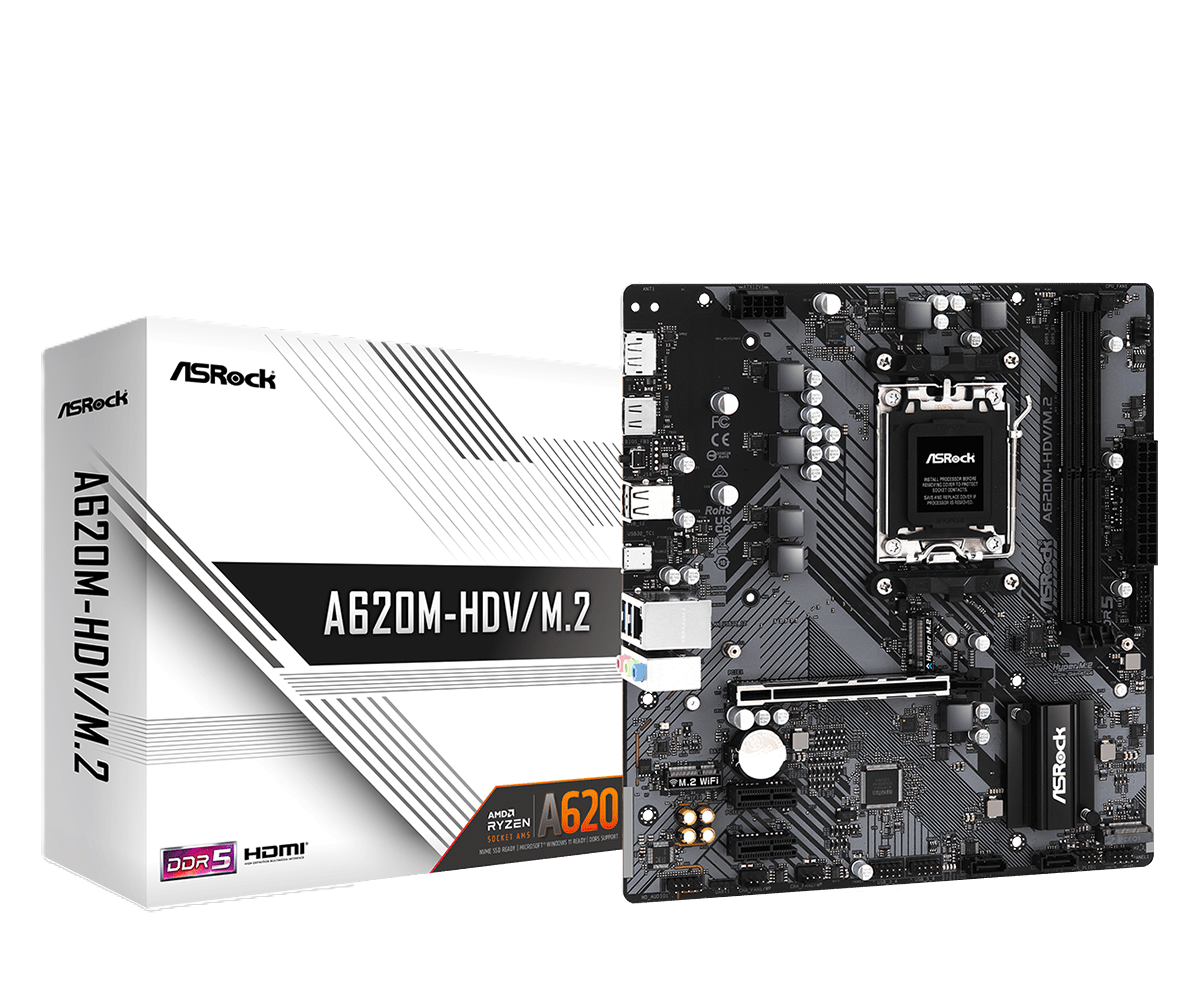

| Package Contents | 1 x User Manual 1 x I / O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets |
| Package Dimension | (W x D x H) : 28.00 x 26.00 x 6.00 cm |
| Gross Weight | 1.99 KG |
| Volume | 4,368.00 cm3 |
