คำอธิบาย

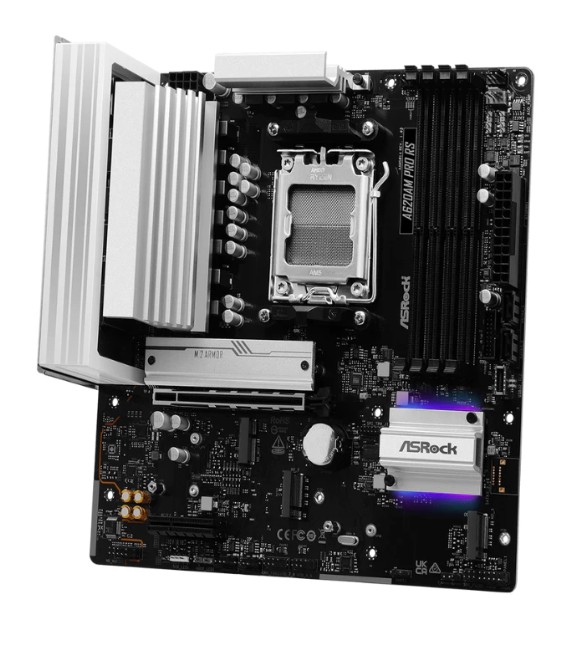

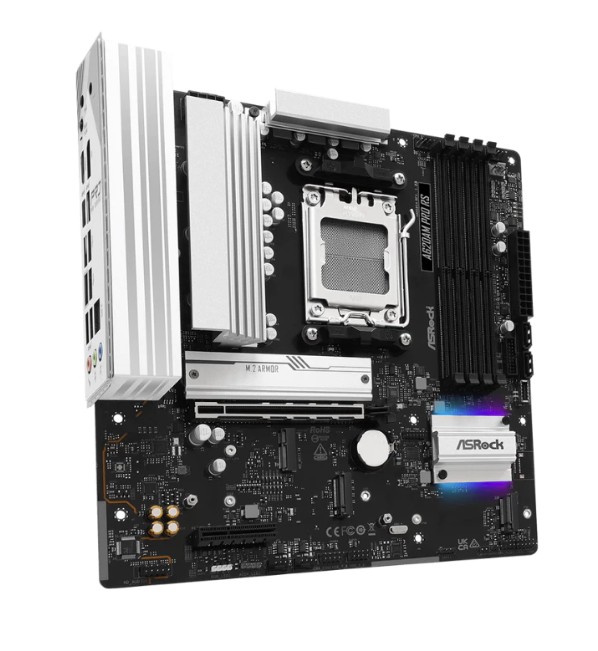

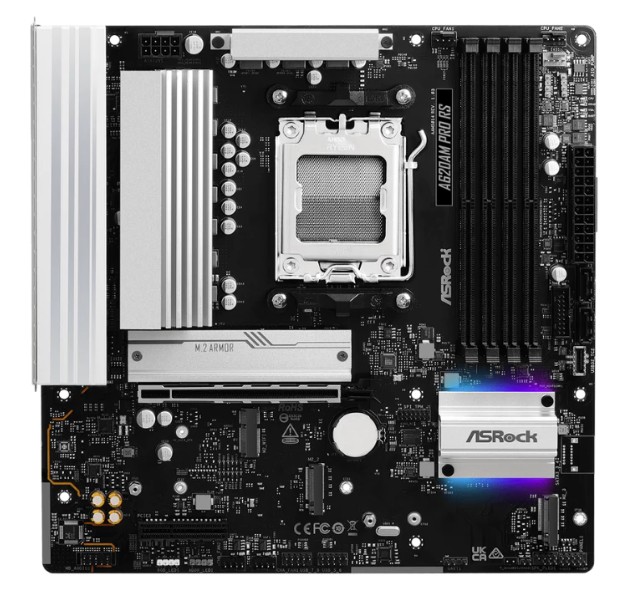

คุณสมบัติ MAINBOARD (AM5) ASROCK A620AM PRO RS DDR5
| แบรนด์ / โมเดล | |
|---|---|
| Brand | ASROCK |
| Model | A620AM PRO RS DDR5 |
| ข้อมูลจำเพาะ | |
| CPU Support | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| CPU Brand | AMD |
| Socket | AM5 |
| Chipset | AMD A620A |
| Memory Support | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Maximum Memory Bus | 7200 |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Multi Graphic Support | None |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks |
| Maximum PCIe Version | PCIe 4.0 |
| Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset: 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode* 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks RAID: * Requires additional M.2 NVMe expansion cards to support RAID 10 |
| M.2 Storage Type Support | NVMe |
| M.2 Slot | 3 |
| Special Features | Superb Productivity – Dual Channel DDR5Rock-Solid Durability – 6+2+1 Power Phase, Dr.MOS – Pre-Installed I/O Shield Ultrafast Connectivity EZ Update EZ Troubleshooter |
| Software Features | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC*UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Operating System Support | Microsoft Windows® 10 64-bit / 11 64-bit |
| การเชื่อมต่อ | |
| USB | CPU: 1 x USB 3.2 Gen1 Type-C (Rear) 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset: 1 x USB 3.2 Gen1 Type-C (Front) 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front) 8 x USB 2.0 (4 Rear, 4 Front)* All USB ports support ESD Protection |
| Internal I/O Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |

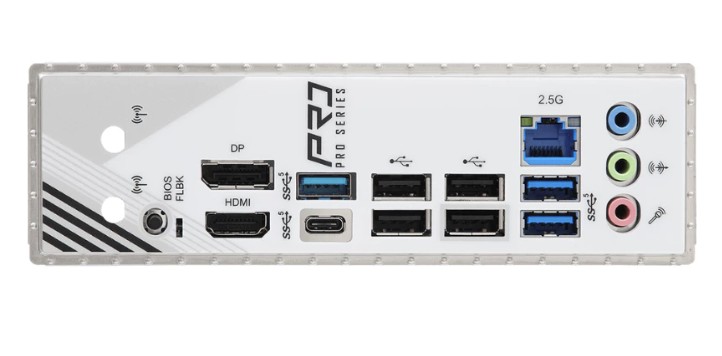

| Back Panel Connectors | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 3 x USB 3.2 Gen1 Type-A Ports 1 x USB 3.2 Gen1 Type-C Port 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Wireless Data Network | None |
| กำลังไฟ | |
| Internal I/O Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
| ข้อมูลทั่วไป | |
| Dimension (cm) | (W x L x H) : 24.40 x 24.40 x 0.00 cm |
| Net Weight (kg) | 0.00 kg |
| Package Dimension (cm) | (W x L x H) : 26.30 x 30.00 x 5.70 cm |
| Gross Weight (kg) | 0.00 kg |
| Volume (cm³) | 4,497.30 cm³ |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Package Contents | 1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
| การรับประกัน | |
| warranty | 3Y |
