คำอธิบาย
| Brand | MSI |

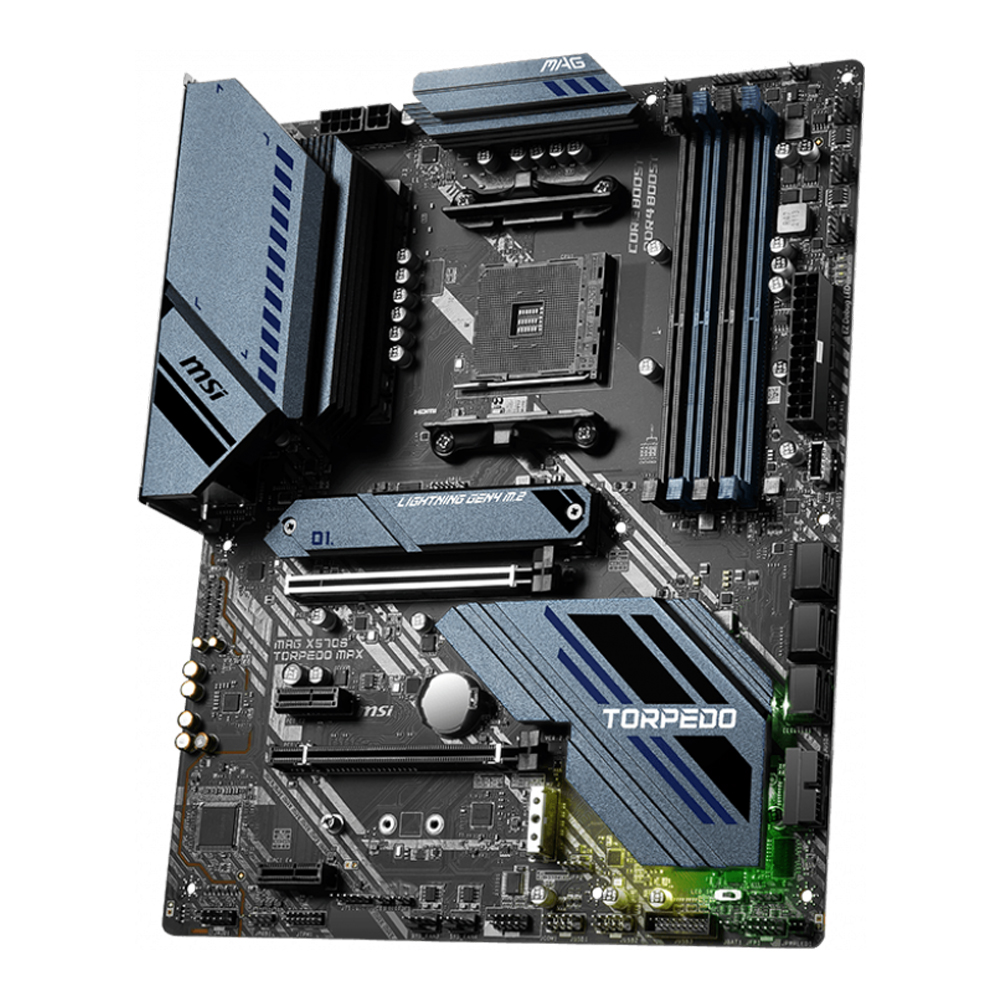

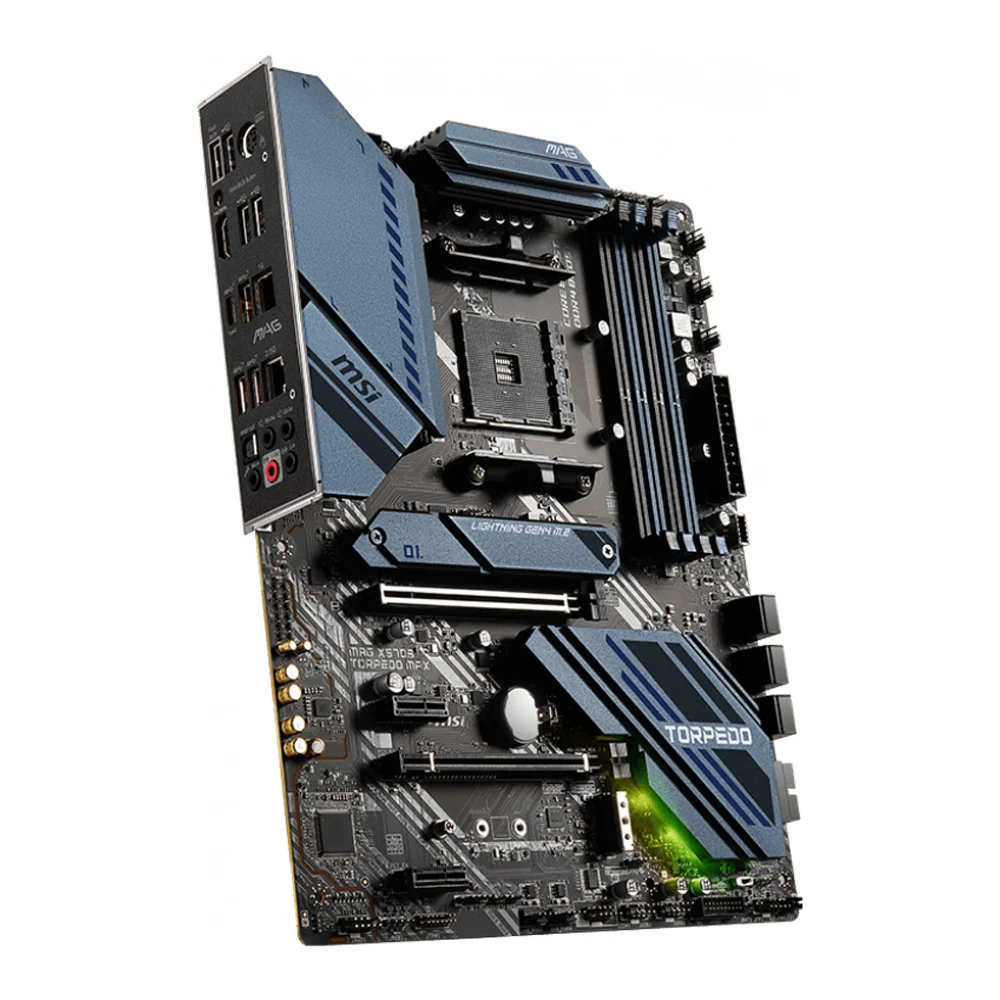

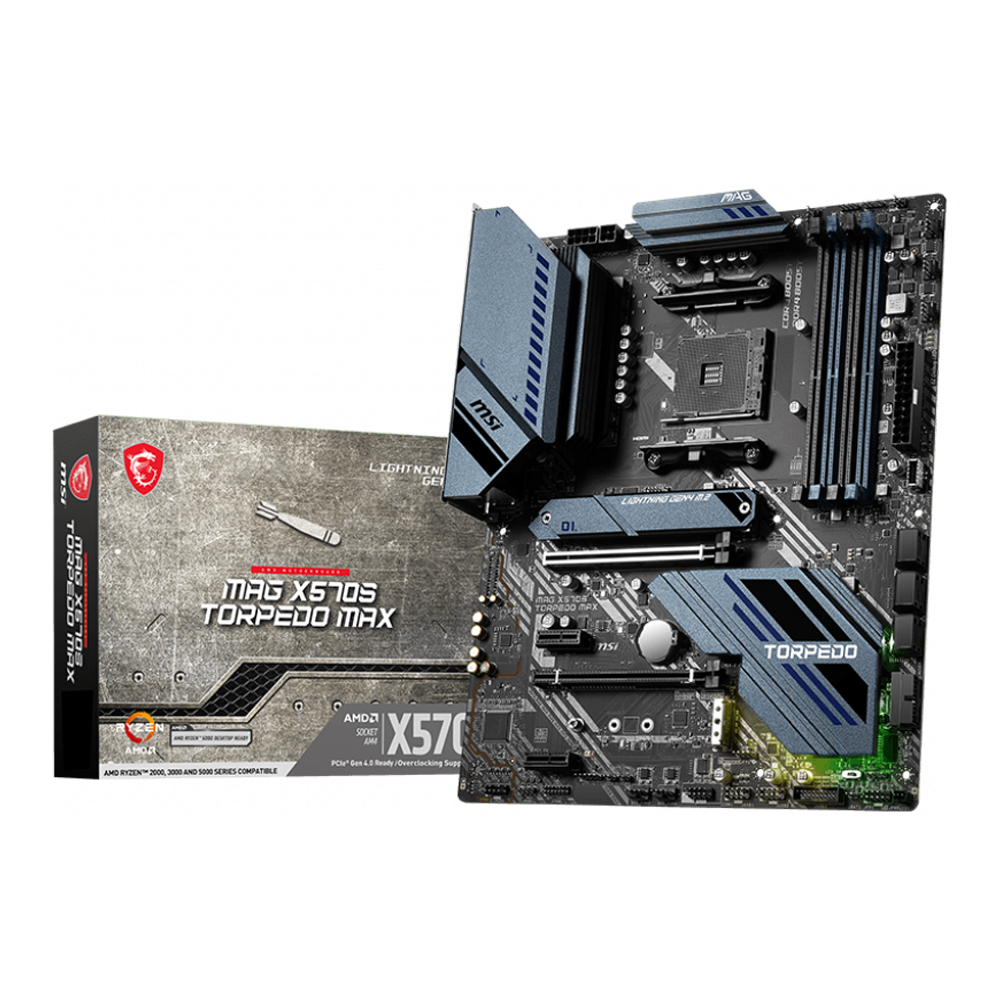

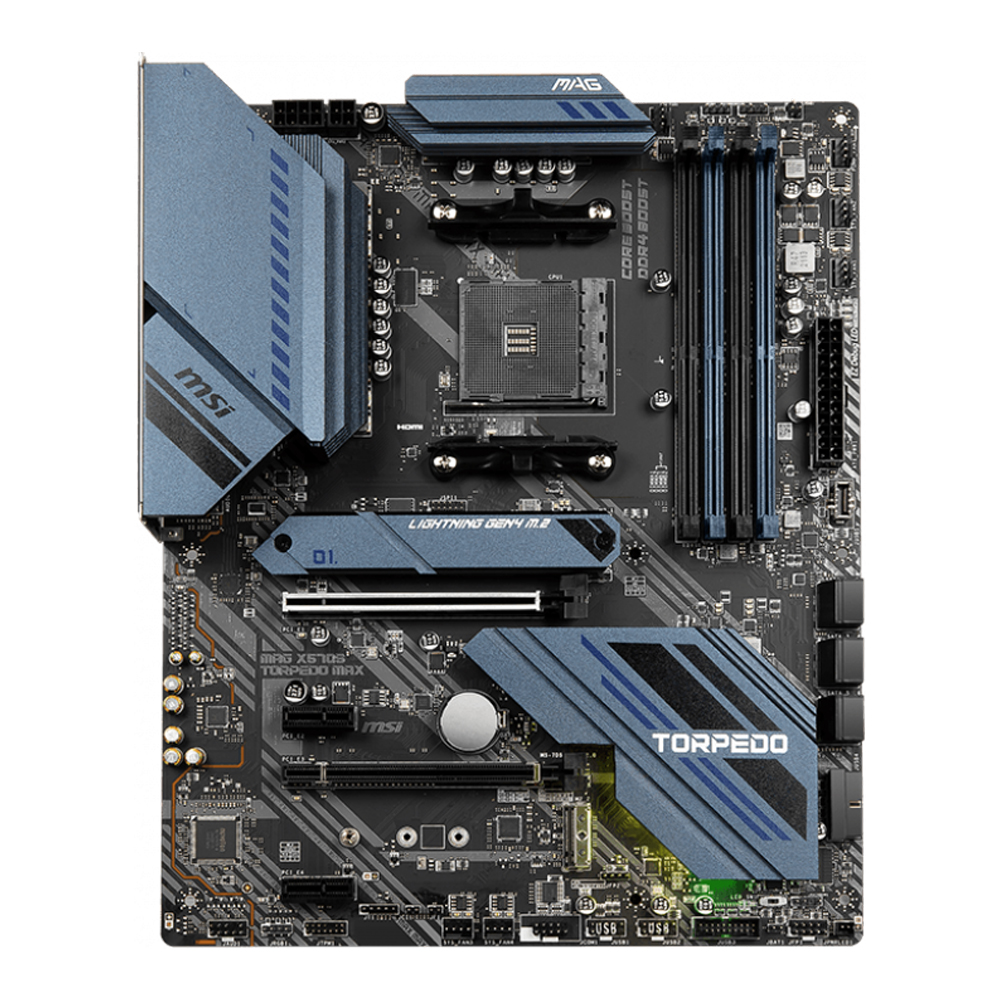

| Model | MAG X570S TORPEDO MAX |
| CPU Support | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
| CPU Brand | AMD |
| Socket | AM4 |
| Chipset | AMD X570 |
| Memory Support | 4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Max overclocking frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors – 1DPC 1R Max speed up to 5100 MHz – 1DPC 2R Max speed up to 4000 MHz – 2DPC 1R Max speed up to 4266 MHz – 2DPC 2R Max speed up to 3600 MHz For Ryzen™ 5000 Series & 3000 Series processors – 1DPC 1R Max speed up to 5100 MHz – 1DPC 2R Max speed up to 3866 MHz – 2DPC 1R Max speed up to 4000 MHz – 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory Bus | 5100 |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz |
| Multi Graphic Support | Supports AMD CrossFire™ Technology |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | Supports PCIe 4.0 / PCIe 3.0 specification – PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) – PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) – PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| Maximum PCIe Version | PCIe 4.0 |
| Storage | 6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) – Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) – Supports 2242/ 2260/ 2280 storage devices |
| M.2 Storage Type Support | NVMe |
| M.2 Slot | 2 |
| USB | AMD X570 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector |
| Back Panel Connectors | 1x PS/2 Mouse / Keyboard 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x Gigabit LAN Port 1x 2.5G LAN Port 5x HD Audio Connectors 2x USB 2.0 Port 1x Flash BIOS Button 1x HDMI 2.1 Port 1x USB 3.2 Gen 2 10Gbps (Type-C) 3x USB 3.2 Gen 2 10Gbps (Type-A) 1x Optical S/PDIF OUT |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN Controller 1x Realtek® RTL8111H 1Gbps LAN Controller |
| Wireless Data Network | None |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Support for Windows® 10 64-bit |
| Package Contents | N/A |
| Dimension | (W x D x H) : 24.40 x 30.50 x 4.80 cm |
| Net Weight | 1.30 KG |
| Package Dimension | (W x D x H) : 27.00 x 34.00 x 7.00 cm |
| Gross Weight | 1.89 KG |
| Volume | 6,426.00 cm3 |
