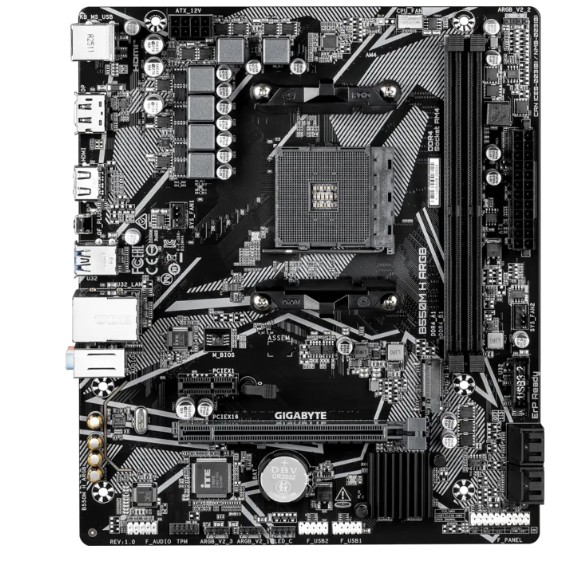

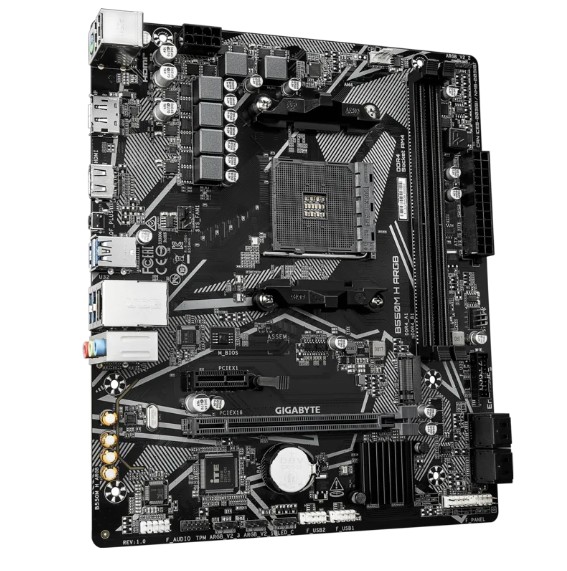

MAINBOARD (AM4) GIGABYTE B550M H ARGB DDR4 (REV. 1.0)

฿2,450.00

  • Support CPU : AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
  • Form Factor : Micro ATX
  • Chipset : AMD B550 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 5100(O.C.)
  • Memory MAX : 64GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • **โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • Integrated ARGB header and Q-Flash Plus button
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
รหัสสินค้า: A0179619 หมวดหมู่: ,

คำอธิบาย

คุณสมบัติ MAINBOARD (AM4) GIGABYTE B550M H ARGB DDR4 (REV. 1.0)

แบรนด์ / โมเดล
Brand GIGABYTE
Model B550M H ARGB DDR4 (rev. 1.0)
ข้อมูลจำเพาะ
CPU Support AMD Socket AM4, support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
CPU Brand AMD
Socket AM4
Chipset AMD B550
Memory Support 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Maximum Memory Bus 5100
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB
Multi Graphic Support N/A
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots 1 x PCI Express x16 slot, integrated in the CPU:
– AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 modeChipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Maximum PCIe Version PCIe 4.0
Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
– AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2 Storage Type Support NVMe, SATA
M.2 Slot 1
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Software Features Norton® Internet Security (OEM version)
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
การเชื่อมต่อ
USB CPU:
– 4 x USB 3.2 Gen 1 ports on the back panelChipset:
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

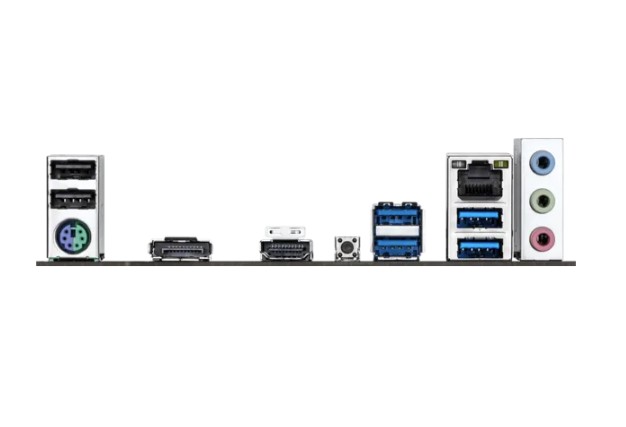

Back Panel Connectors 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort*
1 x HDMI port*
1 x Q-Flash Plus button
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks* Actual support may vary by CPU.
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Data Network None
กำลังไฟ
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
ข้อมูลทั่วไป
Dimension (cm) (W x L x H) : 23.30 x 19.80 x 0.00 cm
Package Dimension (cm) (W x L x H) : 23.00 x 27.00 x 5.00 cm
Form Factor Micro ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Package Contents N/A
Net Weight (kg) 0.00 kg
Gross Weight (kg) 0.60 kg
Volume (cm³) 3,105.00 cm³
การรับประกัน
warranty 3Y
