คำอธิบาย

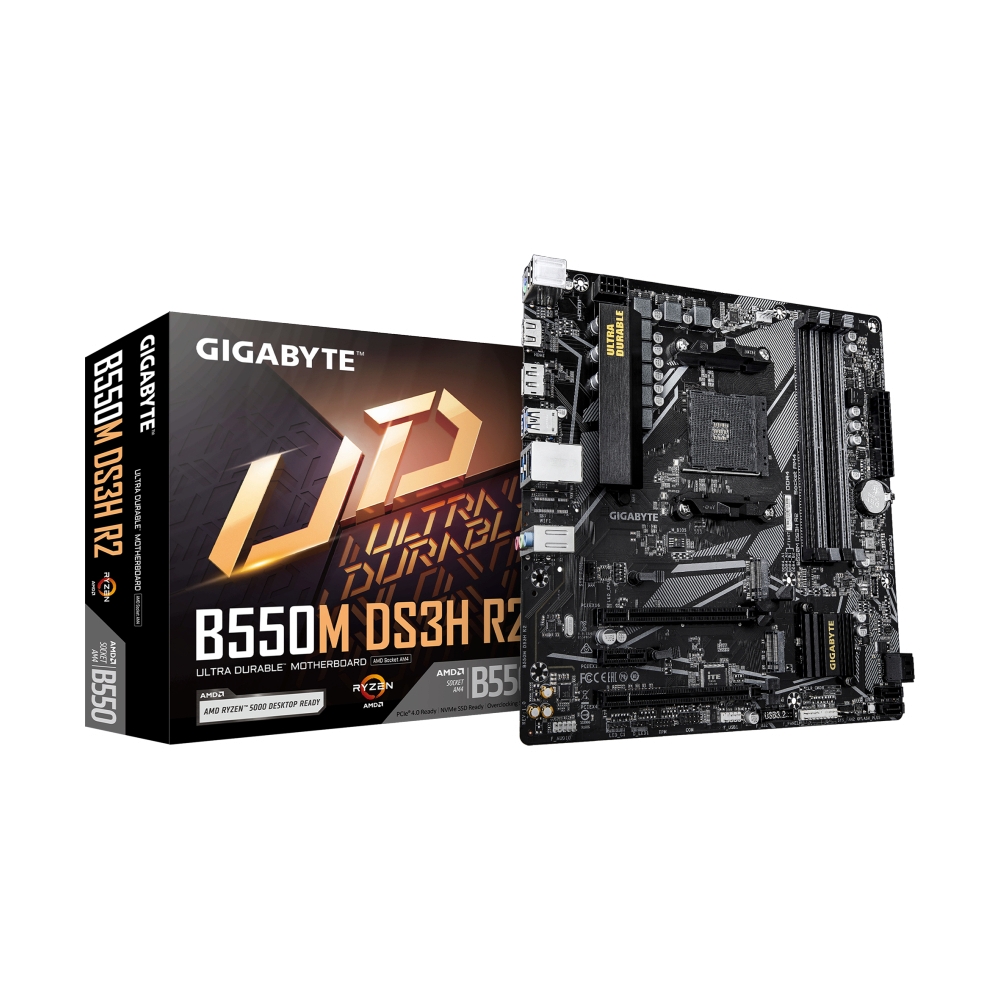

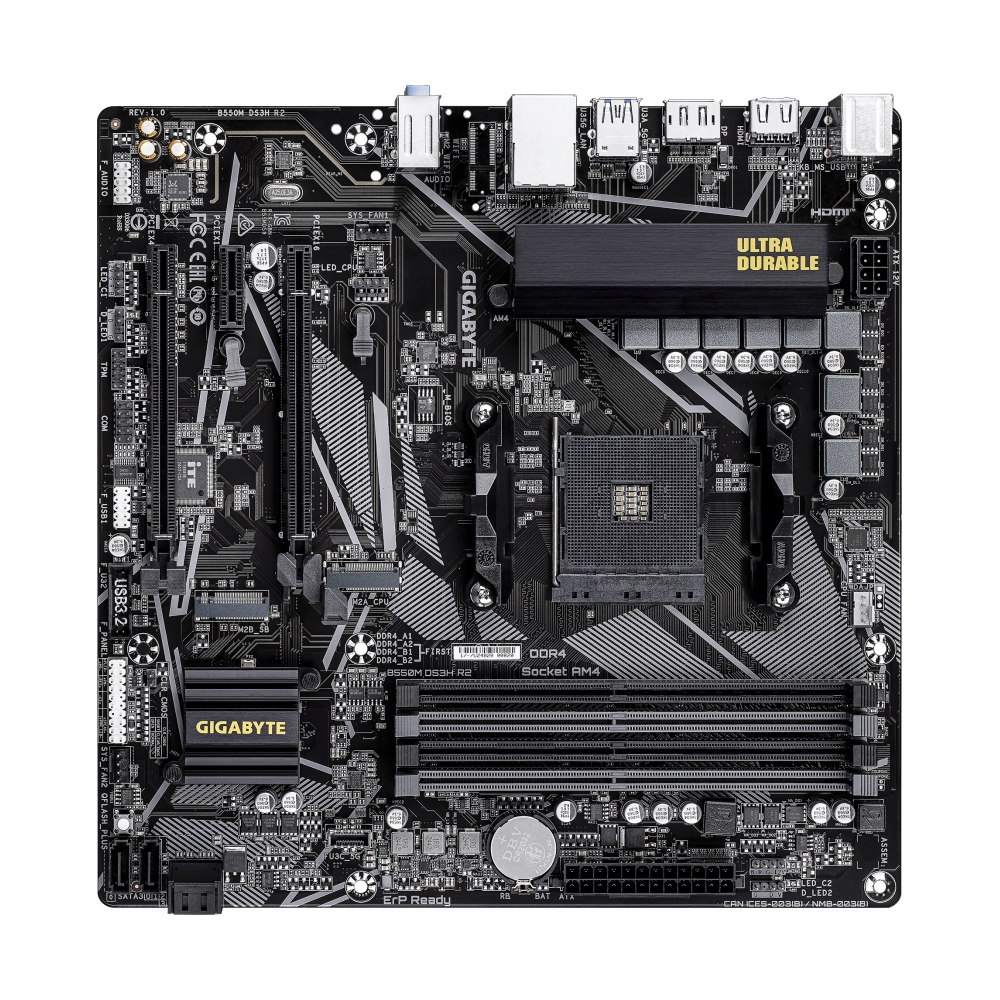

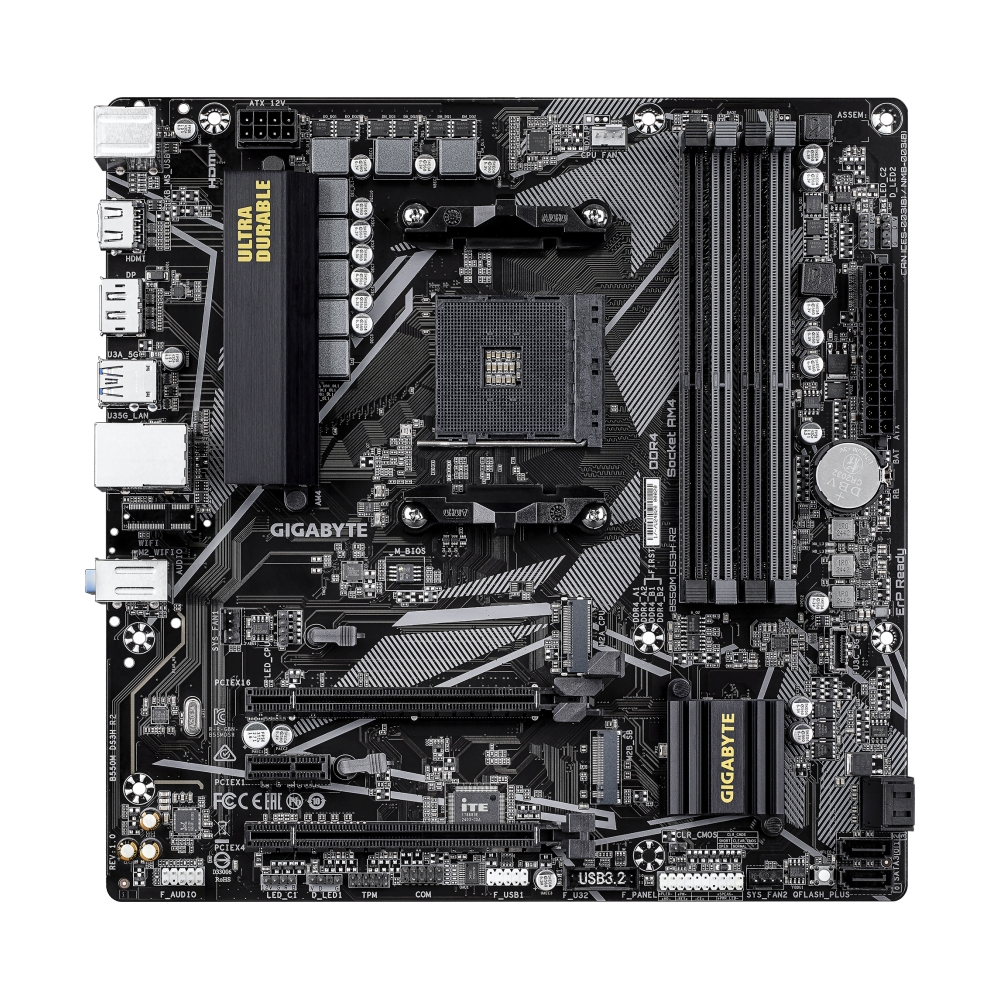

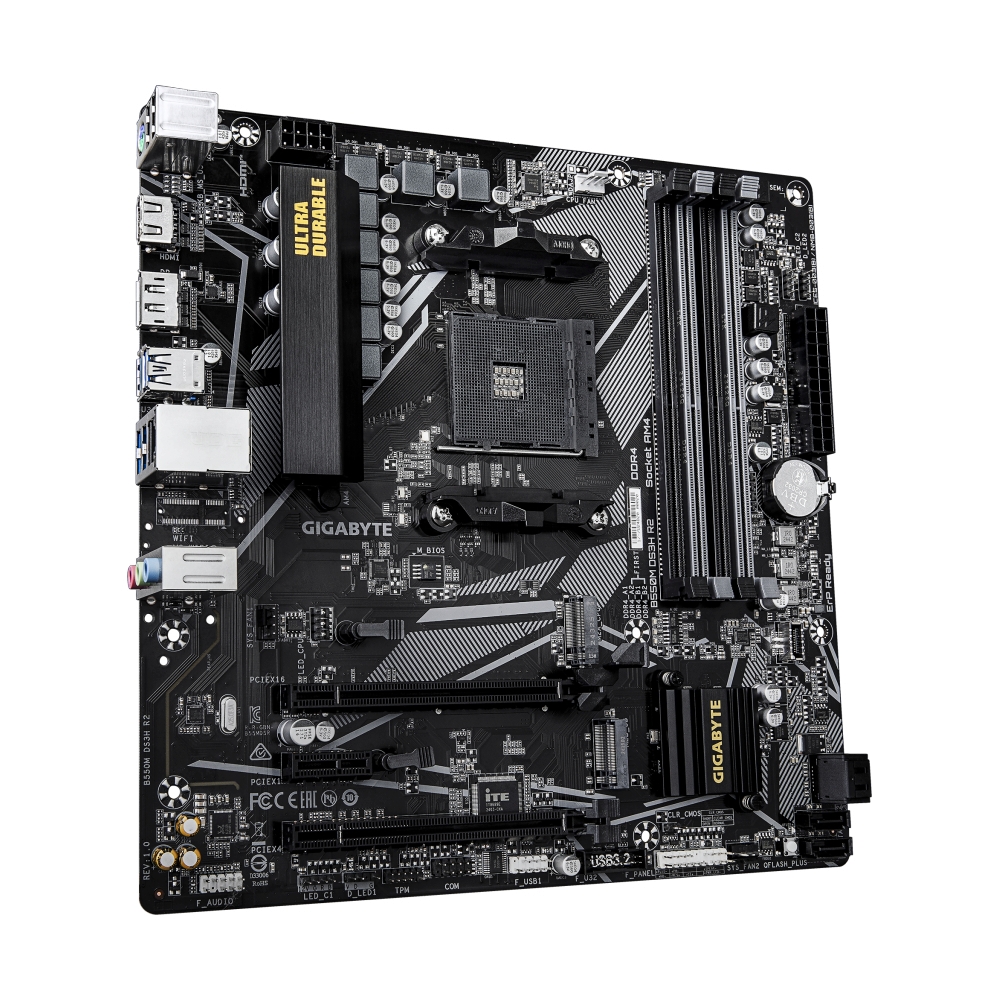

คุณสมบัติ MAINBOARD (AM4) GIGABYTE B550M DS3H R2 DDR4 (REV. 1.0)
| แบรนด์ / โมเดล | |
|---|---|
| Brand | GIGABYTE |
| Model | B550M DS3H R2 DDR4 (REV. 1.0) |
| ข้อมูลจำเพาะ | |
| CPU Support | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) |
| CPU Brand | AMD |
| Socket | AM4 |
| Chipset | AMD B550 |
| Memory Support | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Maximum Memory Bus | 4733 |
| Graphics |
Integrated Graphics Processor with AMD Radeon™ Graphics support: * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. (Graphics specifications may vary depending on CPU support.) |
| Multi Graphic Support | N/A |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio.High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Expansion Slots | CPU: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: |
| Maximum PCIe Version | PCIe 4.0 |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: – AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs – AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors |
| M.2 Storage Type Support | NVMe, SATA |
| M.2 Slot | 2 |
| การเชื่อมต่อ | |
| USB | CPU: – 4 x USB 3.2 Gen 1 ports on the back panelChipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |

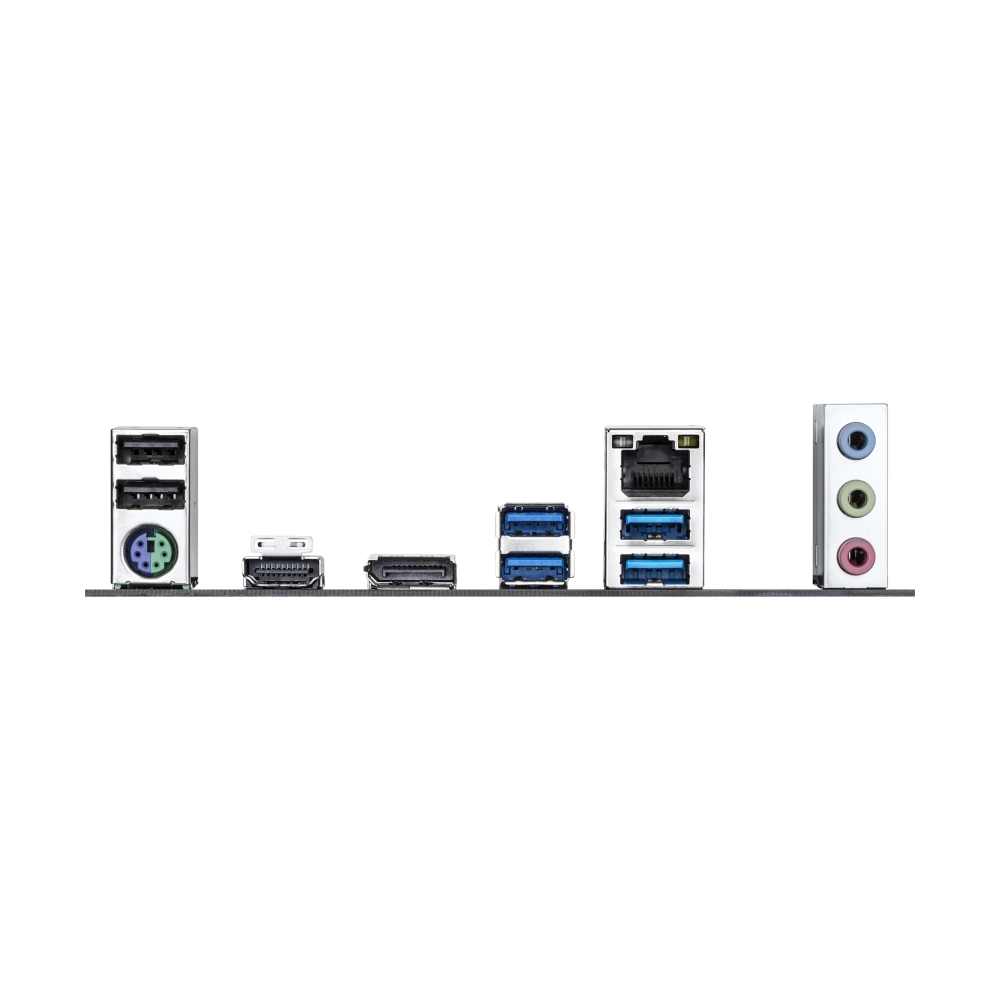

| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks(Note) Actual support may vary by CPU. |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Wireless Data Network | None |
| กำลังไฟ | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| ข้อมูลทั่วไป | |
| Form Factor | Micro ATX |
| Dimension (cm) | (W x L x H) : 24.40 x 24.40 x 0.00 cm |
| Package Dimension (cm) | (W x L x H) : 26.30 x 26.50 x 5.00 cm |
| Net Weight (kg) | 0.00 kg |
| Gross Weight (kg) | 0.88 kg |
| Volume (cm³) | 3,484.75 cm³ |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control* Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS – EasyTune – RGB Fusion – Smart Backup – System Information Viewer Support for Q-Flash Plus |
| Software Features | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System Support | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Package Contents | N/A |
| การรับประกัน | |
| warranty | 3Y |
