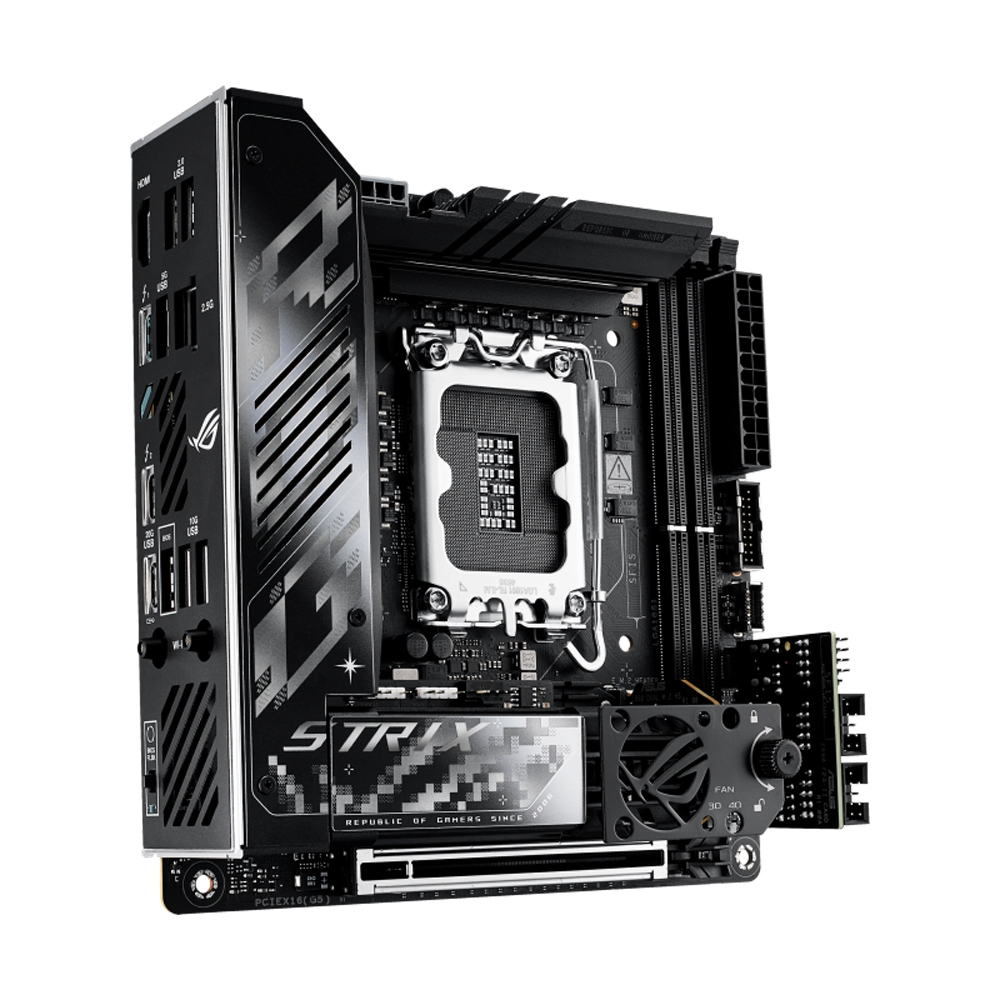

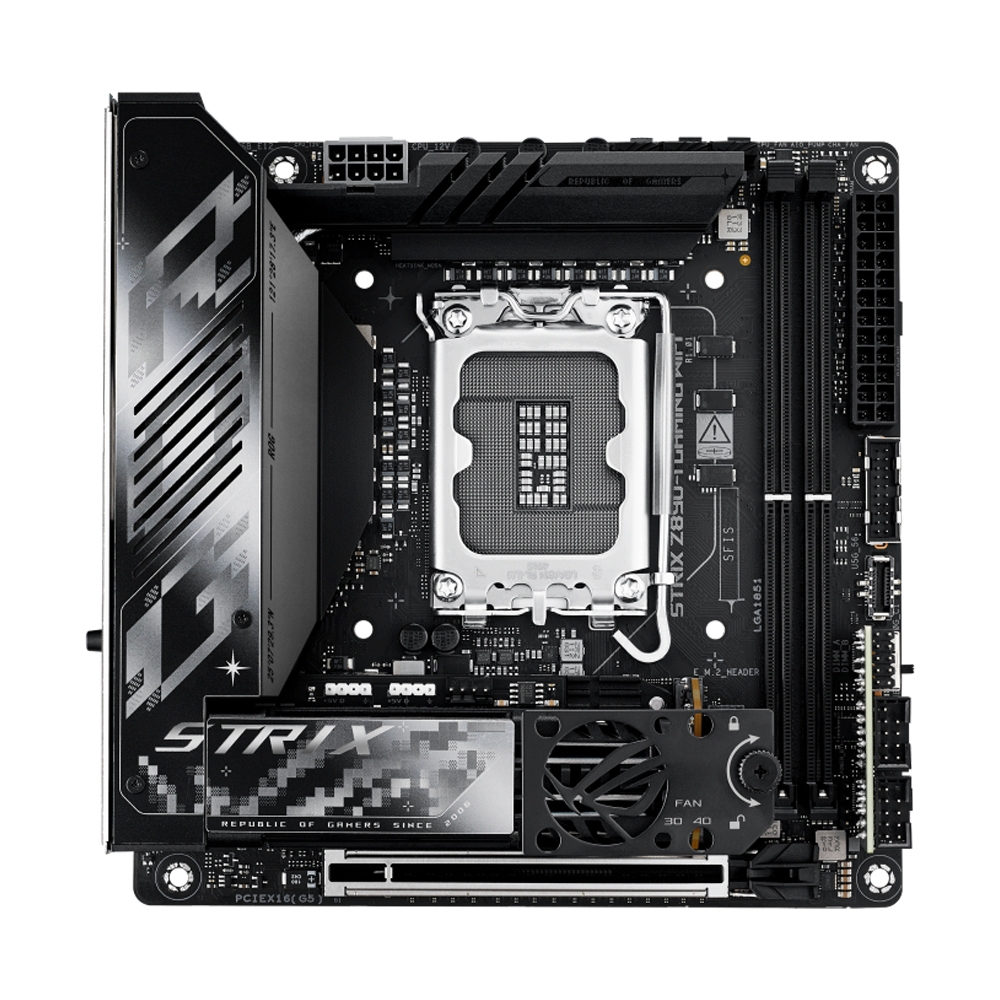

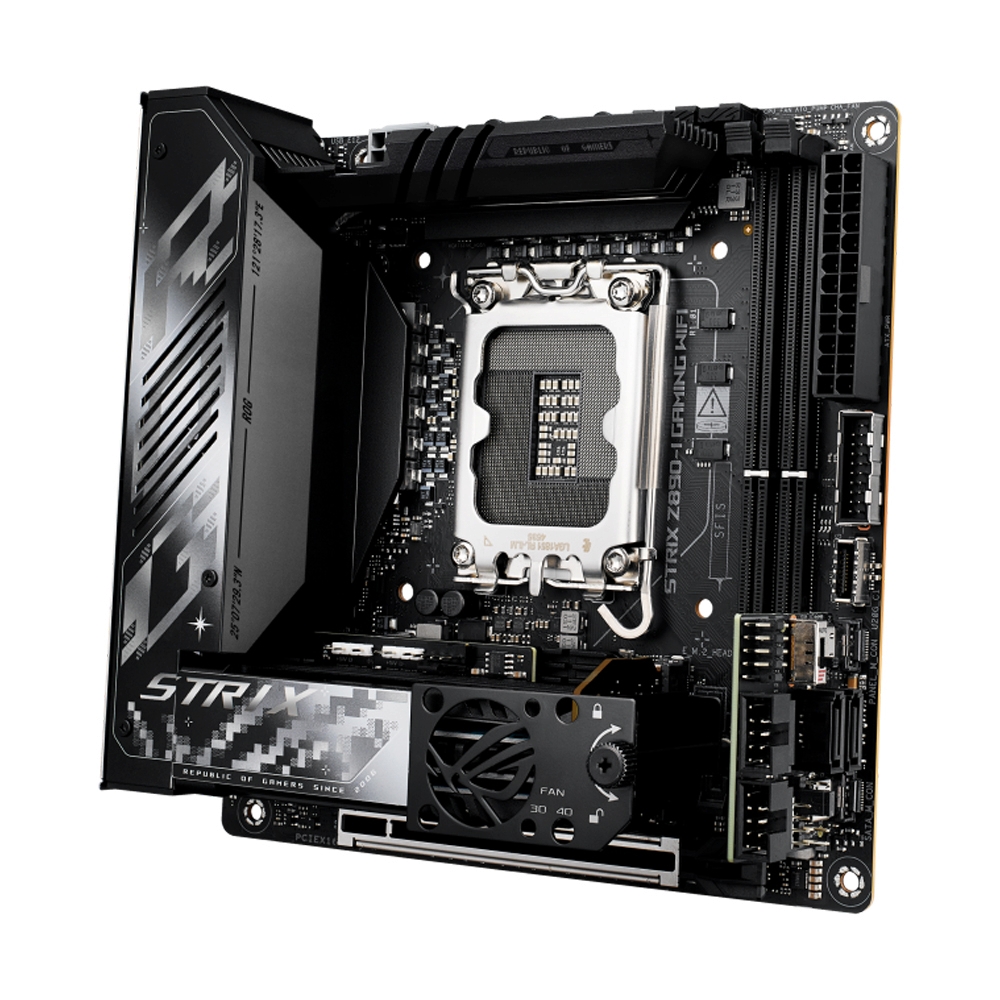

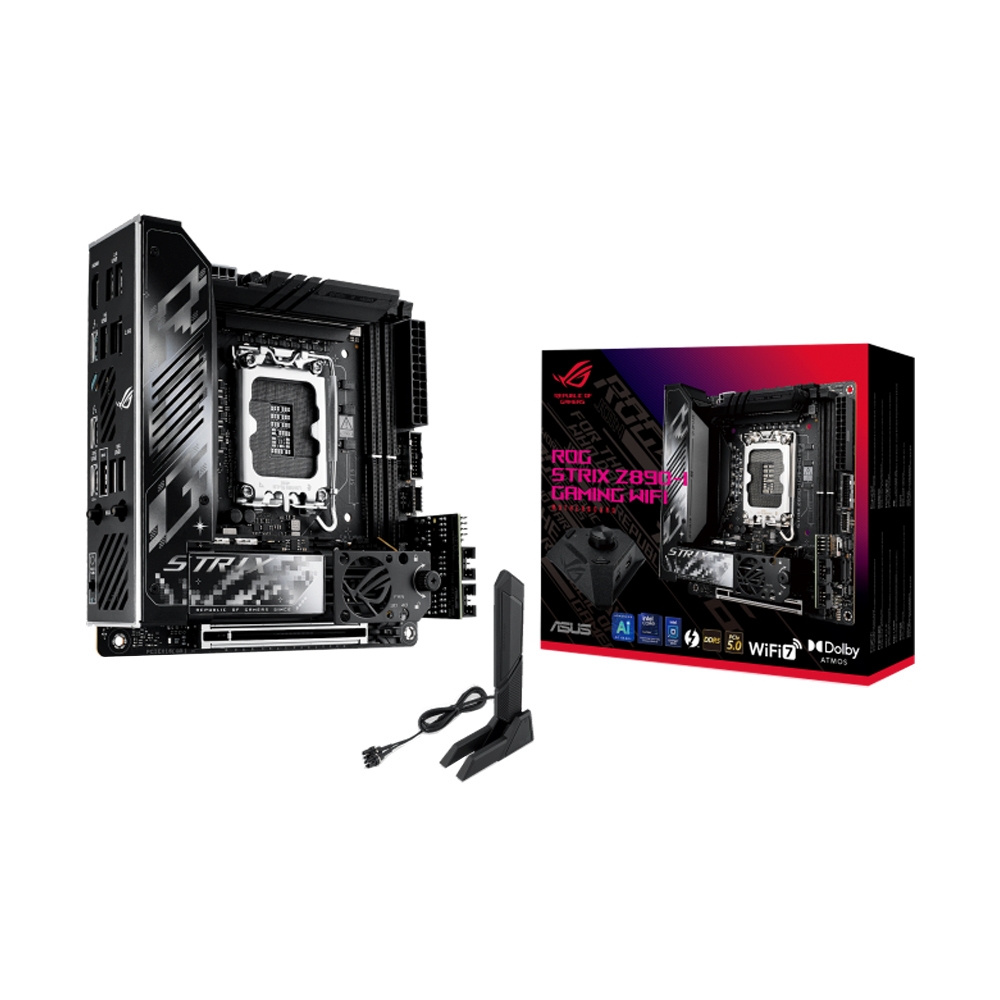

MAINBOARD (1851) ASUS ROG STRIX Z890-I GAMING WIFI DDR5

฿15,290.00

  • Support CPU : Intel Core Ultra Processors (Series 2)
  • Form Factor : Mini ITX
  • Chipset : Intel Z890 Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 9200(O.C.)
  • Memory MAX : 128GB
  • M.2 Slot : 2 slots
  • SATA III 6G : 2 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • AI OVERCLOCKING / AI Cooling II / AI Networking II
  • ROBUST POWER SOLUTION 10+1+2+1 power solution rated for up to 110A per stage
  • Thunderbolt™ 4
  • DDR5 9200+ MT/s, MAX. 128GB, DIMM FIT, AEMP III, DIMM FLEX
  • ROG STRIX HIVE II – Audio, I/O, and controls at arm’s reach
  • **โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า
รหัสสินค้า: A0167123 หมวดหมู่: ,

คำอธิบาย

คุณสมบัติ MAINBOARD (1851) ASUS ROG STRIX Z890-I GAMING WIFI DDR5

แบรนด์ / โมเดล
Brand ASUS
Model ROG STRIX Z890-I GAMING WIFI DDR5
ข้อมูลจำเพาะ
CPU Support Support Intel® Core™ Ultra Processors (Series 2)*
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
CPU Brand Intel
Socket 1851
Chipset Intel Z890
Memory Support 2 x DIMM slots, max. 128GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
ASUS Enhanced Memory Profile III (AEMP III)

* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Bus 9200
Graphics 1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Multi Graphic Support N/A
Audio ROG Strix Hive II Audio Features
– ROG Hyper-Grounding Technology
– ESS® SABRE9260Q DAC
– Silver-plated audio jacks
– Dedicated audio PCB layers
* All audio functions on ROG STRIX Z890-I GAMING WIFI are supported through the ROG STRIX HIVE II.
Expansion Slots Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Maximum PCIe Version PCIe 5.0
Storage Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)**
M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)

2 x SATA 6Gb/s ports***

* Intel® Rapid Storage Technology supports PCIe RAID 0/1, SATA RAID 0/1.
** M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run
x8 only.
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
M.2 Storage Type Support NVMe
M.2 Slot 2
การเชื่อมต่อ
USB Rear USB (Total 9 ports)
2 x Thunderbolt™ 4 (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)Front USB (Total 3 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

ROG STRIX HIVE II (Total 2 ports)
2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A)

ROG FPS Card (Total 3 ports)
2 x USB 2.0 headers support additional 3 USB 2.0 ports

* USB Type-C® power delivery output: max.
5V/3A
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
1 x Extra Flow Fan headerPower Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related
2 x M.2 slots (Key M)

USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card

ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3 additional USB 2.0 ports

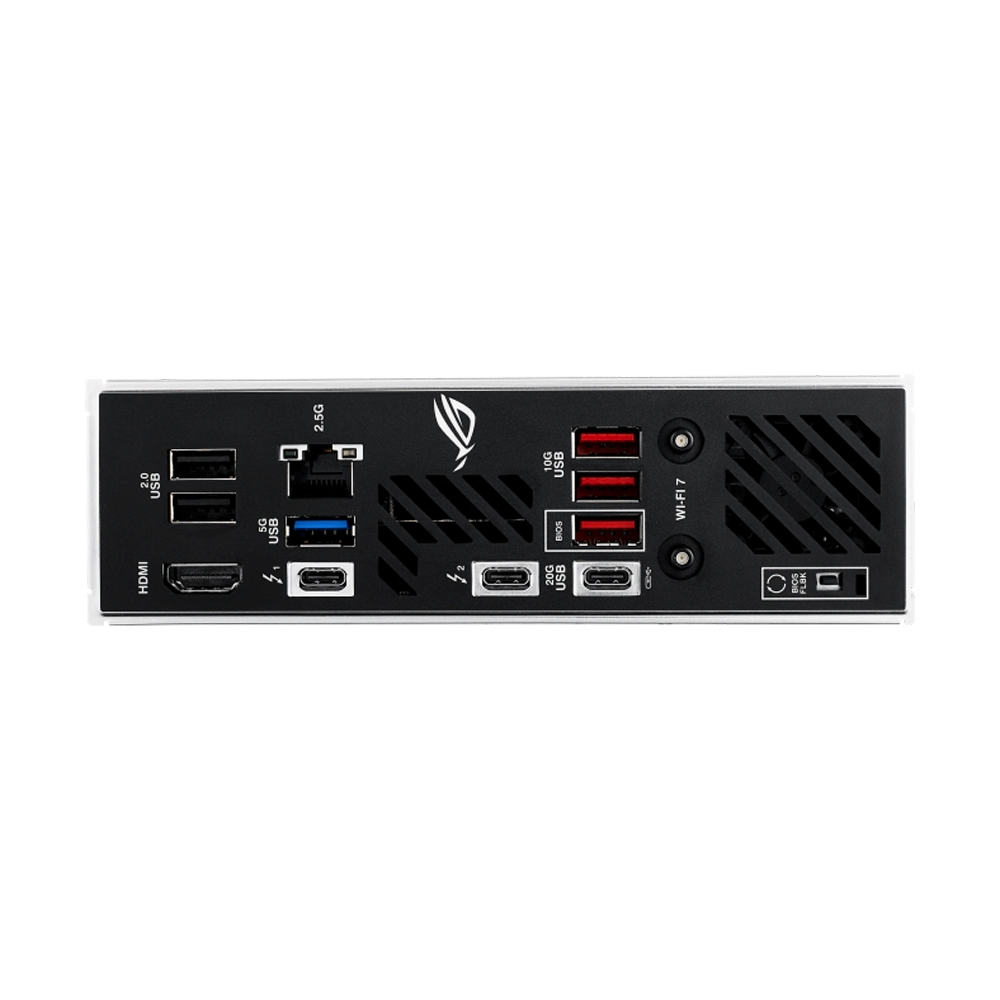

Back Panel Connectors 2 x Thunderbolt™ 4 (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x BIOS FlashBack™ button
LAN 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless Data Network Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4****Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
กำลังไฟ
Internal I/O Connectors Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
ข้อมูลทั่วไป
Form Factor Mini ITX
Dimension (cm) (W x L x H) : 17.00 x 17.00 x 0.00 cm
Package Dimension (cm) (W x L x H) : 22.00 x 28.00 x 10.70 cm
Special Features Extreme Engine Digi+
– 5K Black metallic capacitorsASUS Q-Design
– M.2 Q-Release Duo
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-Slot

ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
– Fan bracket

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeDIMM
– Backplate

Aura Sync
– Addressable Gen 2 headers

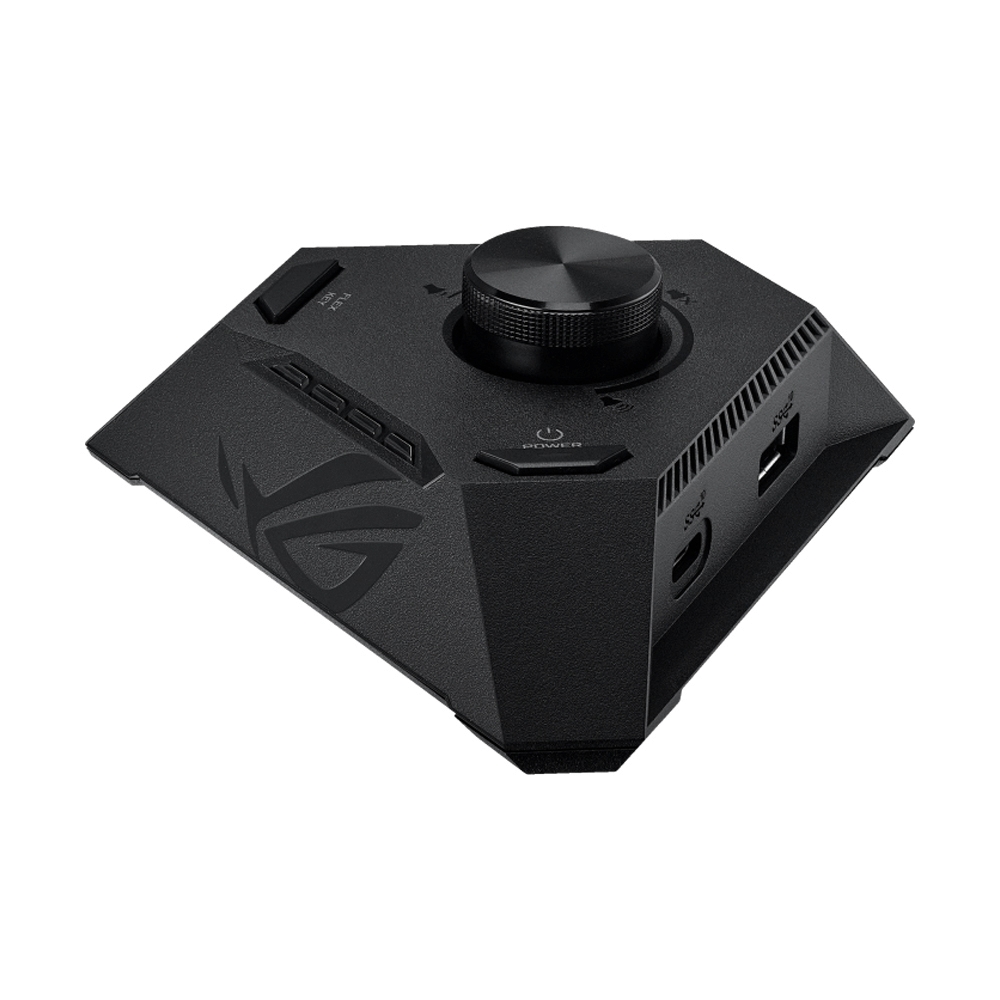

ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A)
1 x Headphone jack with mic in
1 x FlexKey button
1 x Power button
1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

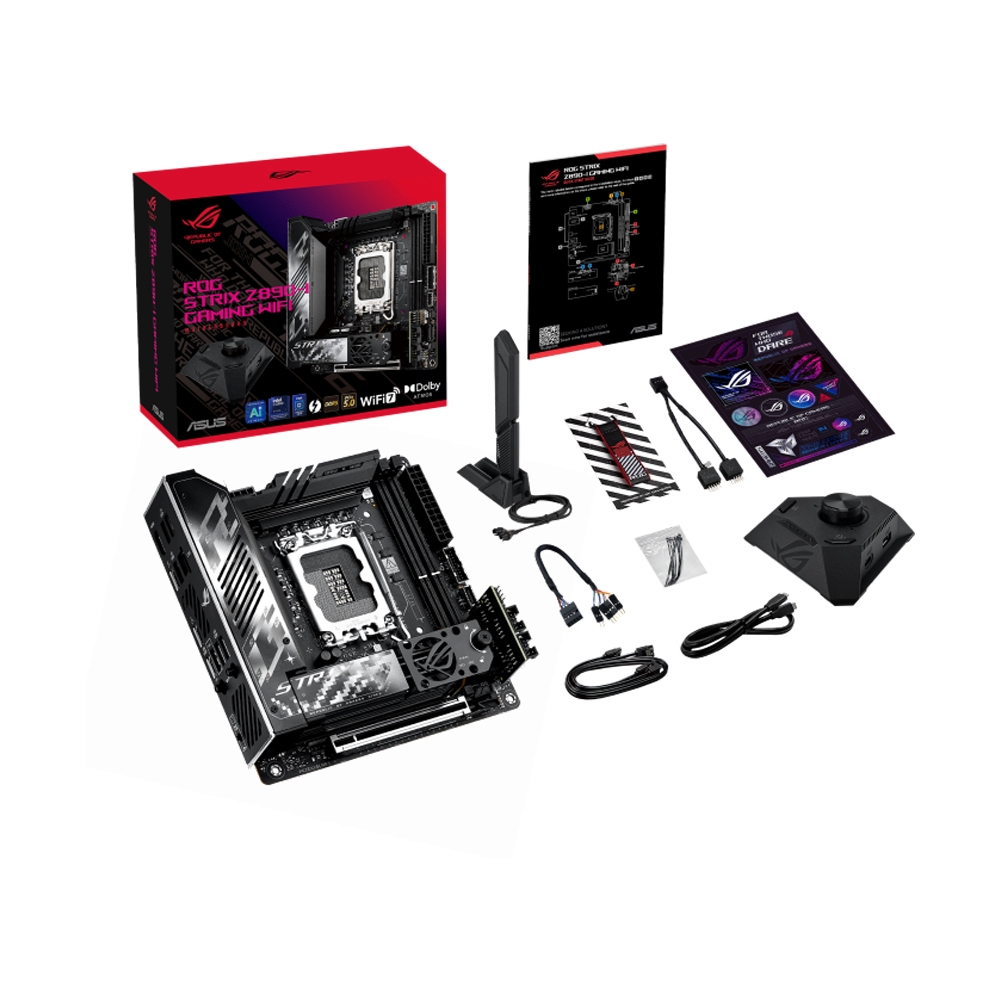

Package Contents Cables
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
1 x Panel CableROG FPS Card
1 x ROG FPS Card

ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x ROG key chain
1 x ROG Strix stickers

Documentation
1 x Quick start guide
Software Features ROG Exclusive Software
– ROG CPU-Z
– Dolby AtmosASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– Power Saving
HWiNFO
AIDA64 Extreme (60 days free trial)
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost
Operating System Support Windows 11 (22H2 later)
การรับประกัน
warranty 3Y
