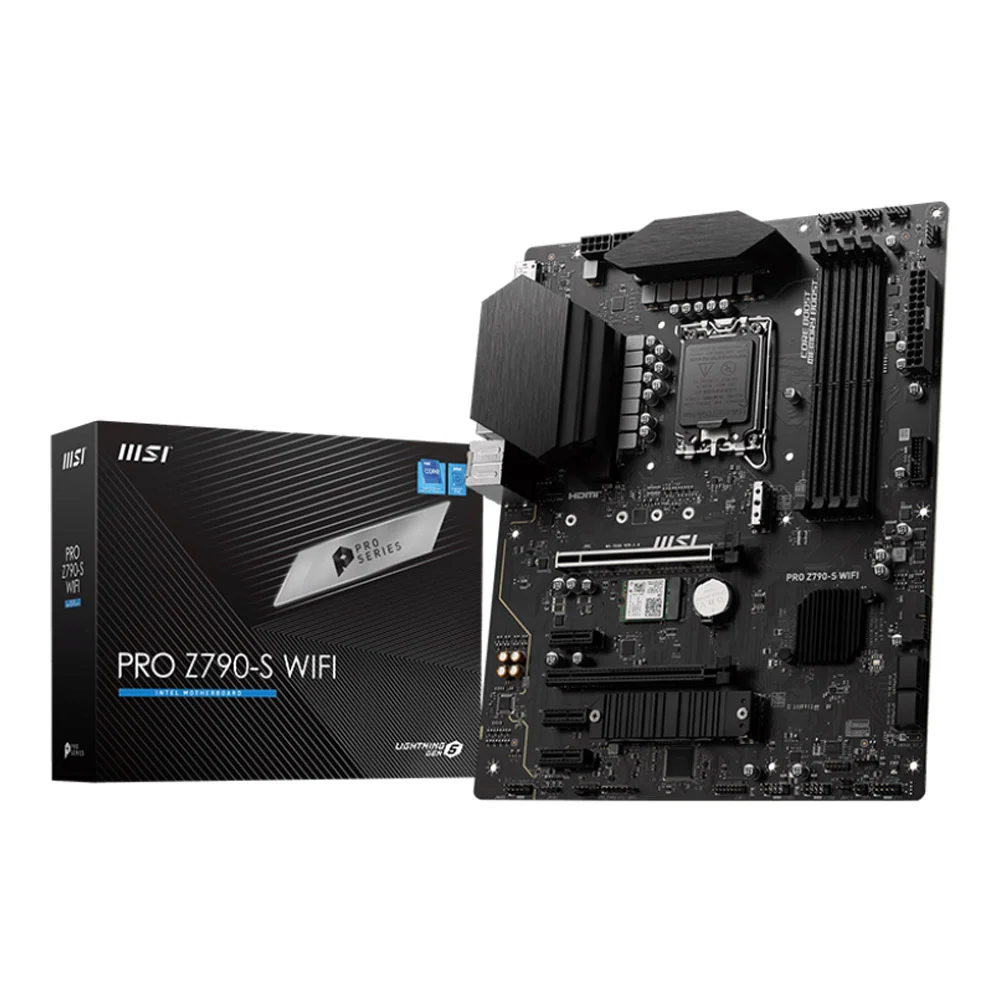

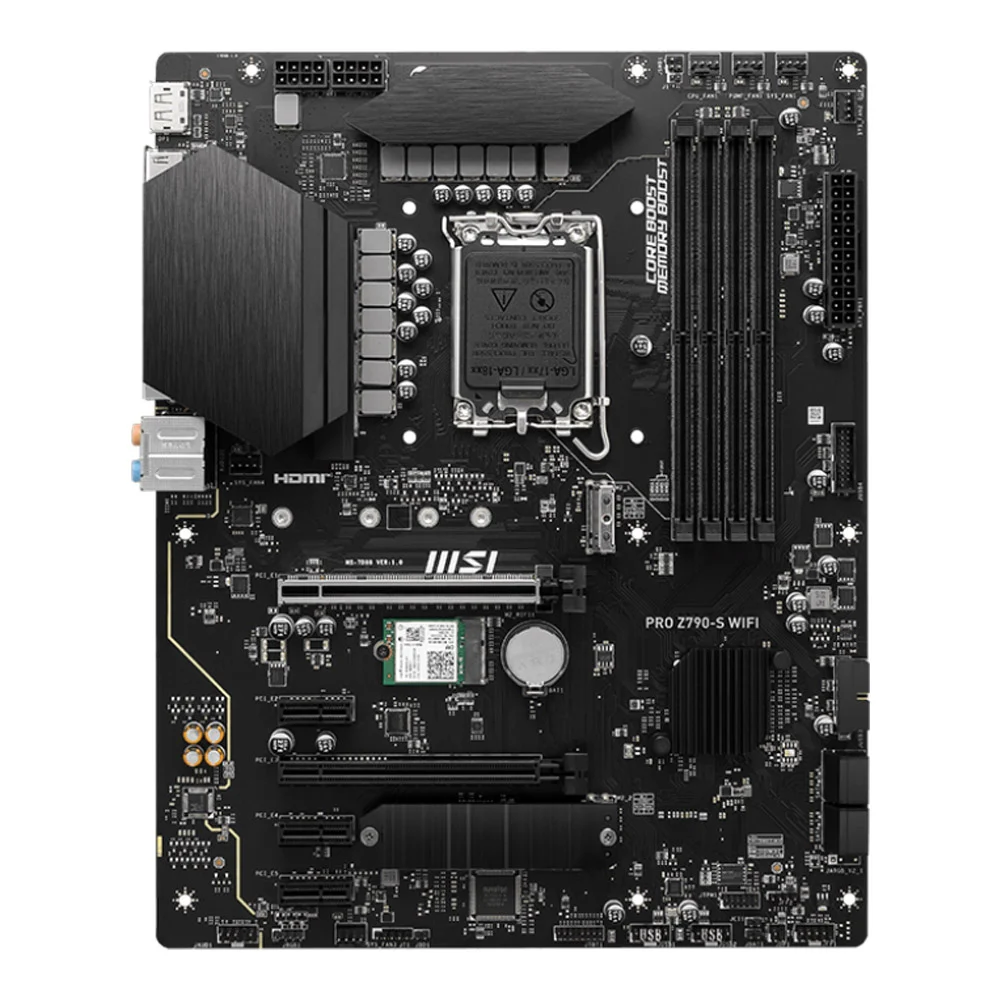

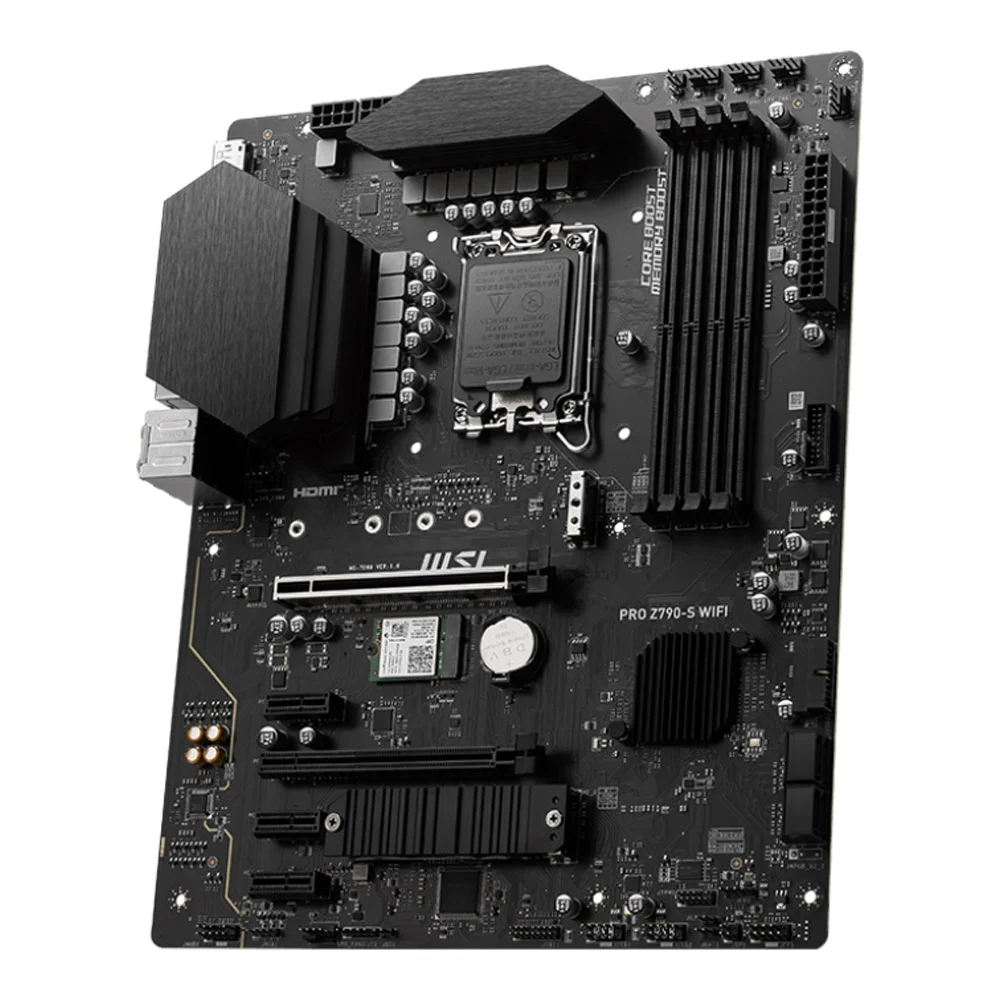

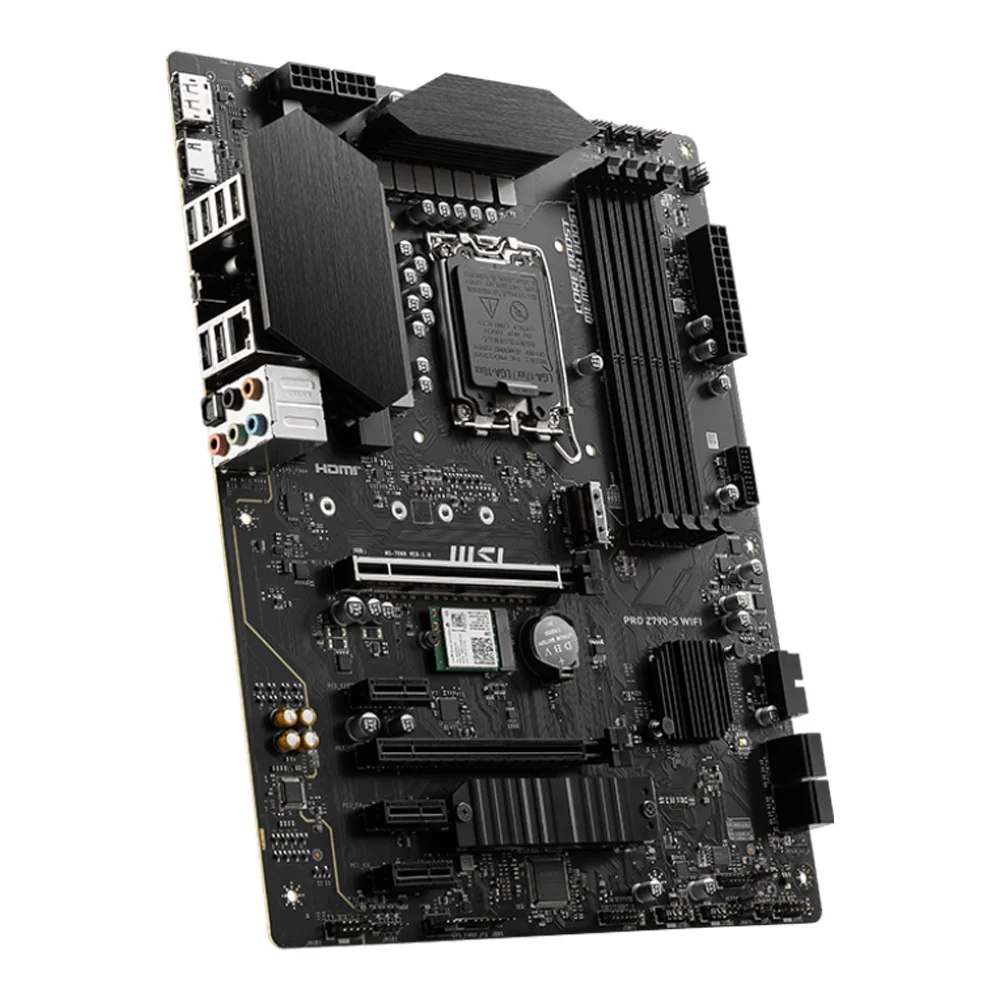

MAINBOARD (1700) MSI PRO Z790-S WIFI DDR5

฿6,500.00

  • Support CPU : 14th /13th /12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • From Factor : ATX
  • Chipset : Intel Z790 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 6600(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 2 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 6E
  • Enhanced Power Design : 12+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • High Quality PCB : 6-layer PCB made by 2oz thickened copper and server grade level material
  • AUDIO BOOST : Reward your ears with studio grade sound quality for the most immersive gaming experience

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

สินค้าหมดแล้ว

รหัสสินค้า: A0157519 หมวดหมู่:

คำอธิบาย

Brand MSI
Model PRO Z790-S WIFI (DDR5)
CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
CPU Brand Intel
Socket 1700
Chipset Intel Z790
Memory Support 4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory Bus 6600
Graphics 1 x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

1 x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support N/A
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots 2 x PCI-E x16 slot
3 x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Maximum PCIe Version PCIe 5.0
Storage 2 x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4 x SATA 6G

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2 Storage Type Support NVMe, SATA
M.2 Slot 2
USB 2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
4 x USB 3.2 Gen1 Type A (Rear)
4 x USB 3.2 Gen1 Type A (Front)
1 x USB 3.2 Gen2x2 Type C (Rear)
Internal I/O Connectors 1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x Pump Fan
4 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x TBT connector (JTBT, supports RTD3)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports

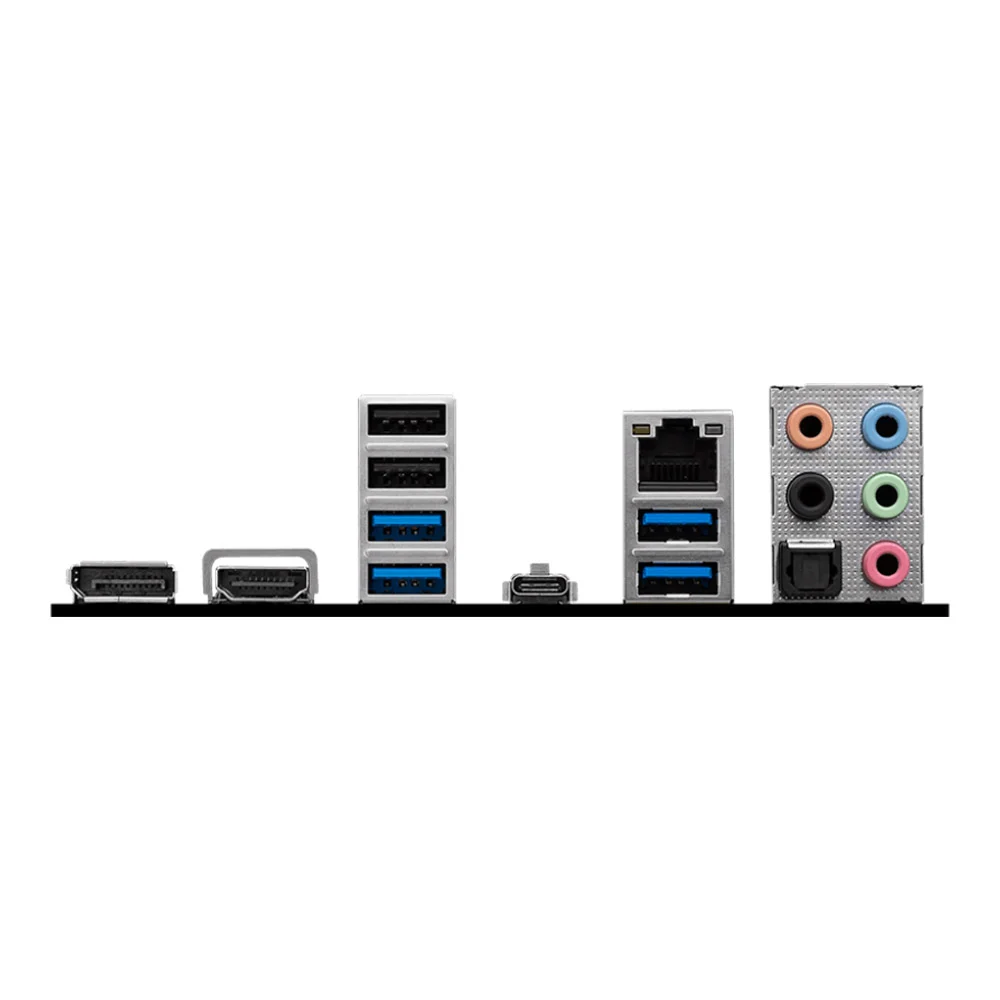

Back Panel Connectors DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 2×2 20Gbps (Type-C)
2.5G LAN
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
S/PDIF-OUT
LAN Realtek® RTL8125BG 2.5Gbps LAN

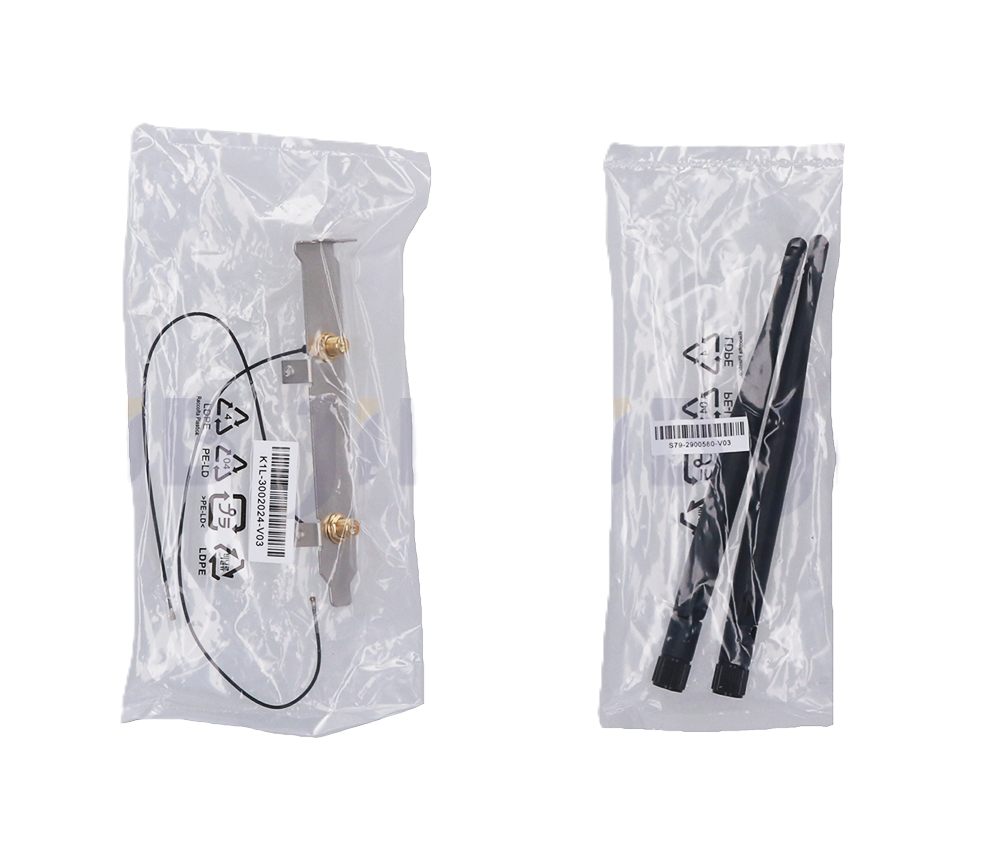

Wireless Data Network Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Form Factor ATX
H/W Monitoring N/A
BIOS N/A
Special Features N/A
Software Features N/A
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 26.50 x 34.00 x 7.00 cm
Gross Weight 1.40 KG
Volume 6,307.00 cm3
