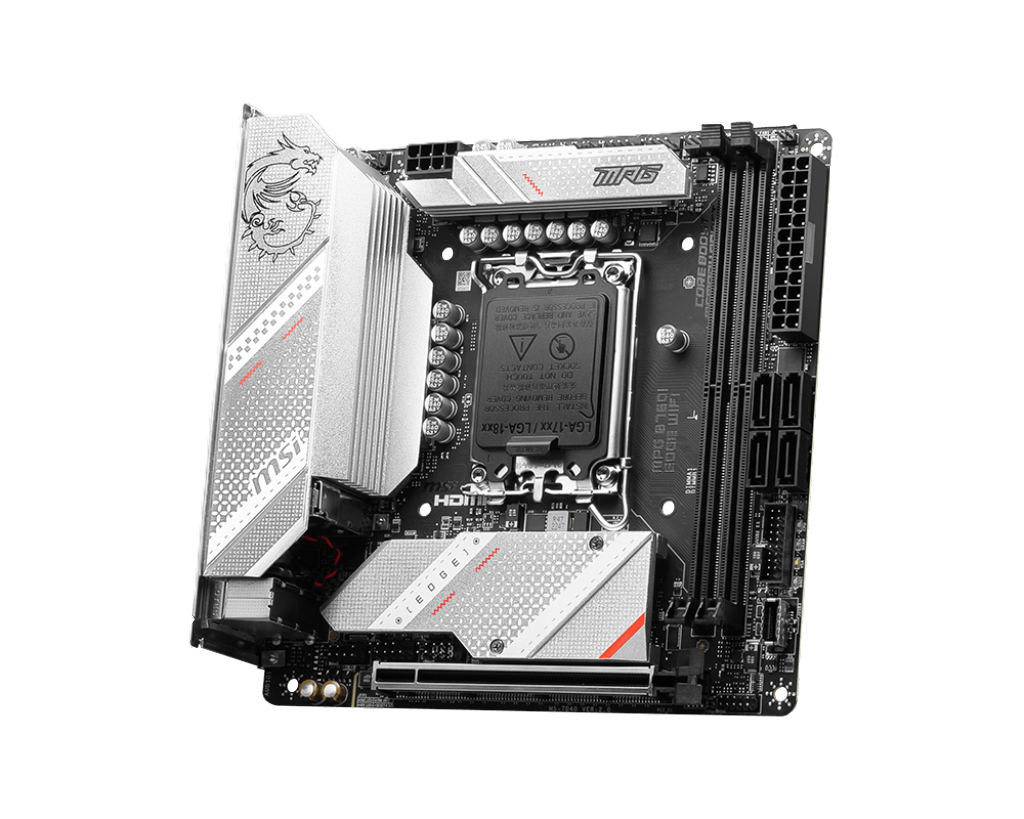

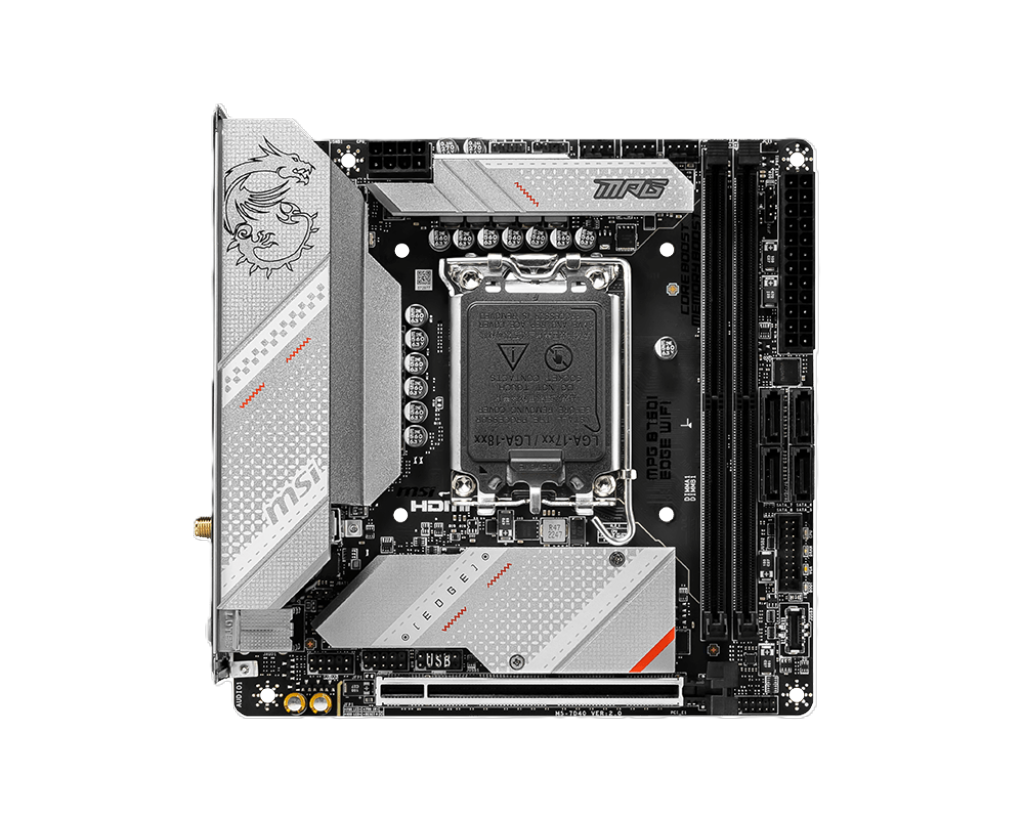

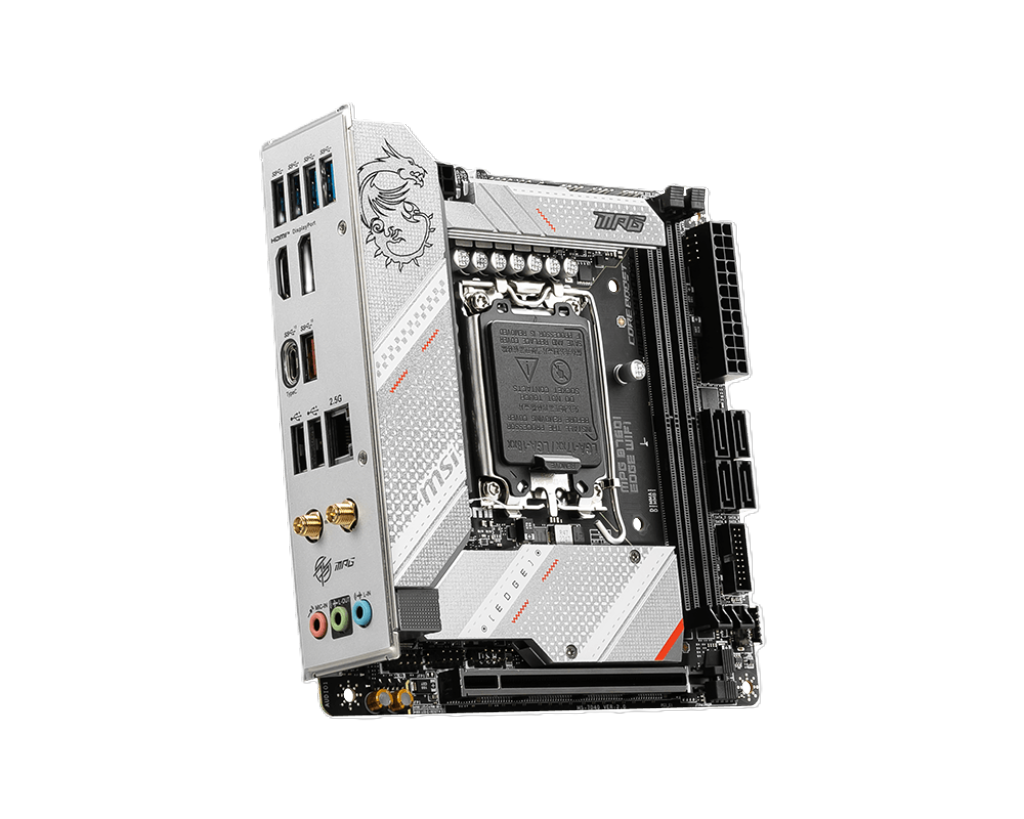

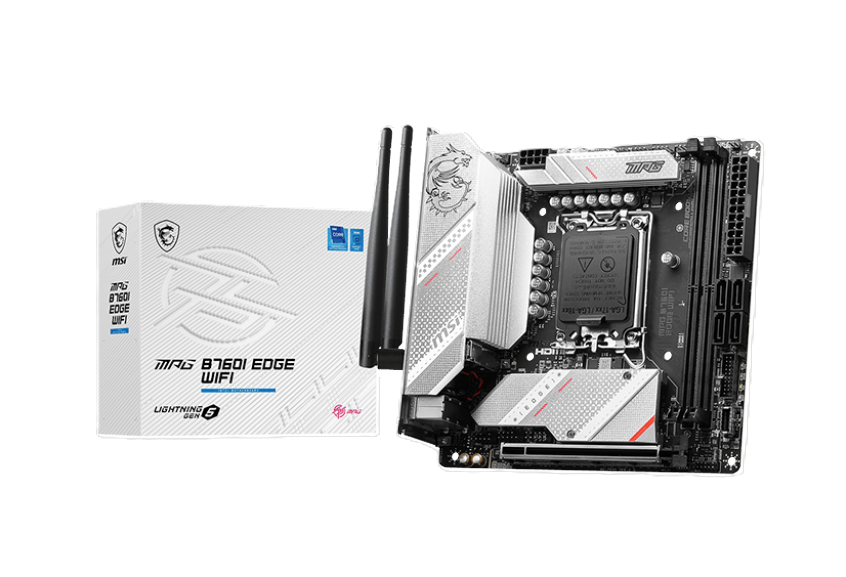

MAINBOARD (1700) MSI MPG B760I EDGE WIFI DDR5

฿8,100.00

  • Support CPU : 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  • From Factor : Mini ITX
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 7200(O.C.)
  • Memory MAX : 96GB
  • M.2 Slot : 2 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 6E
  • MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.
  • Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 8-layer PCB made by server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

สินค้าหมดแล้ว

รหัสสินค้า: A0154785 หมวดหมู่:

คำอธิบาย

Brand MSI
Model MPG B760I EDGE WIFI (DDR5)
CPU Support Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
CPU Brand Intel
Socket 1700
Chipset Intel B760
Memory Support 2x DDR5, Maximum Memory Capacity 96GB

Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory Bus 7200
Graphics 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support N/A
Audio Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio
Expansion Slots 1 x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Maximum PCIe Version PCIe 5.0
Storage 2 x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices

4 x SATA 6G

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2 Storage Type Support NVMe
M.2 Slot 2
USB 2x USB 2.0 (Rear)
2x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
Internal I/O Connectors 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

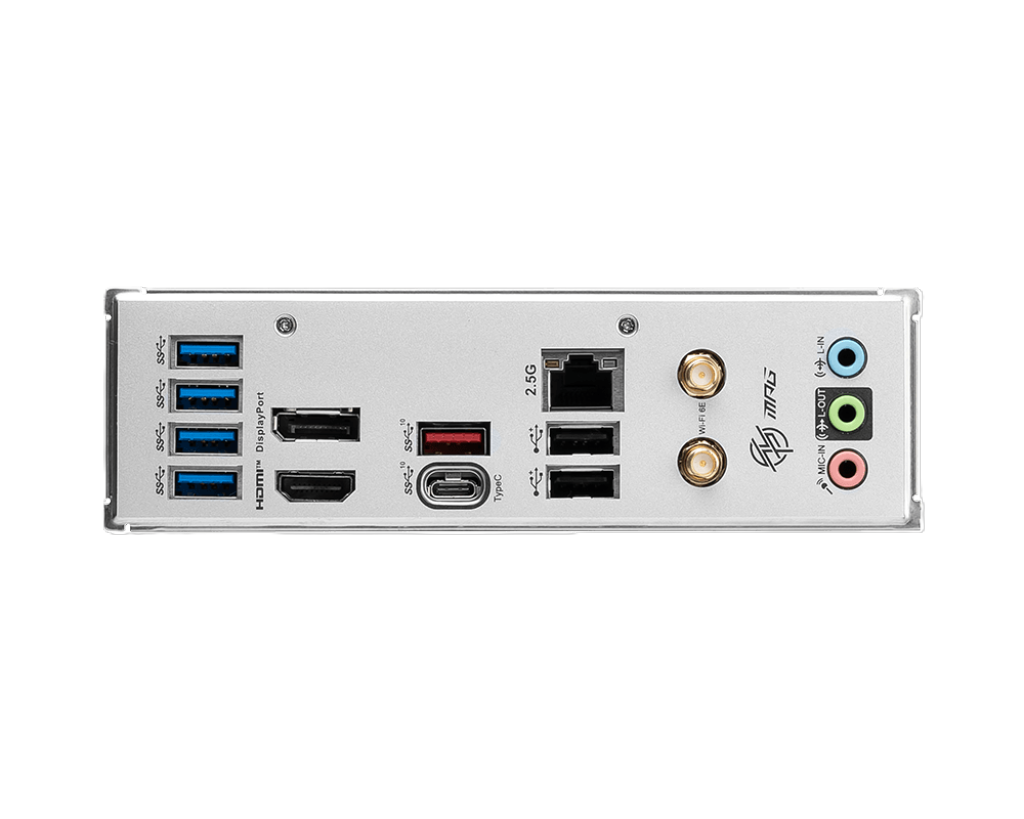

Back Panel Connectors 2x USB 2.0
1x USB 3.2 Gen 2 10Gbps (Type-C)
4x USB 3.2 Gen 1 5Gbps
1x USB 3.2 Gen 2 10Gbps
1x Display Port
1x HDMI™
1x 2.5G LAN
Audio Connectors
Wi-Fi / Bluetooth
LAN Realtek® RTL8125BG 2.5Gbps LAN
Wireless Data Network Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Form Factor Mini ITX
H/W Monitoring N/A
BIOS N/A
Special Features N/A
Software Features N/A
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 19.00 x 22.50 x 8.00 cm
Gross Weight 1.00 KG
Volume 3,420.00 cm3
