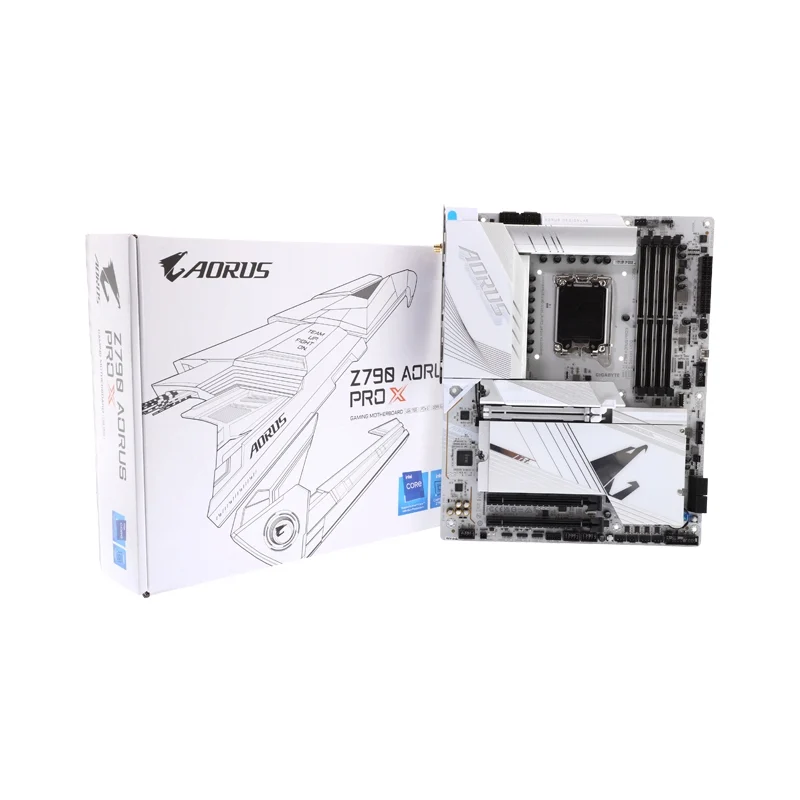

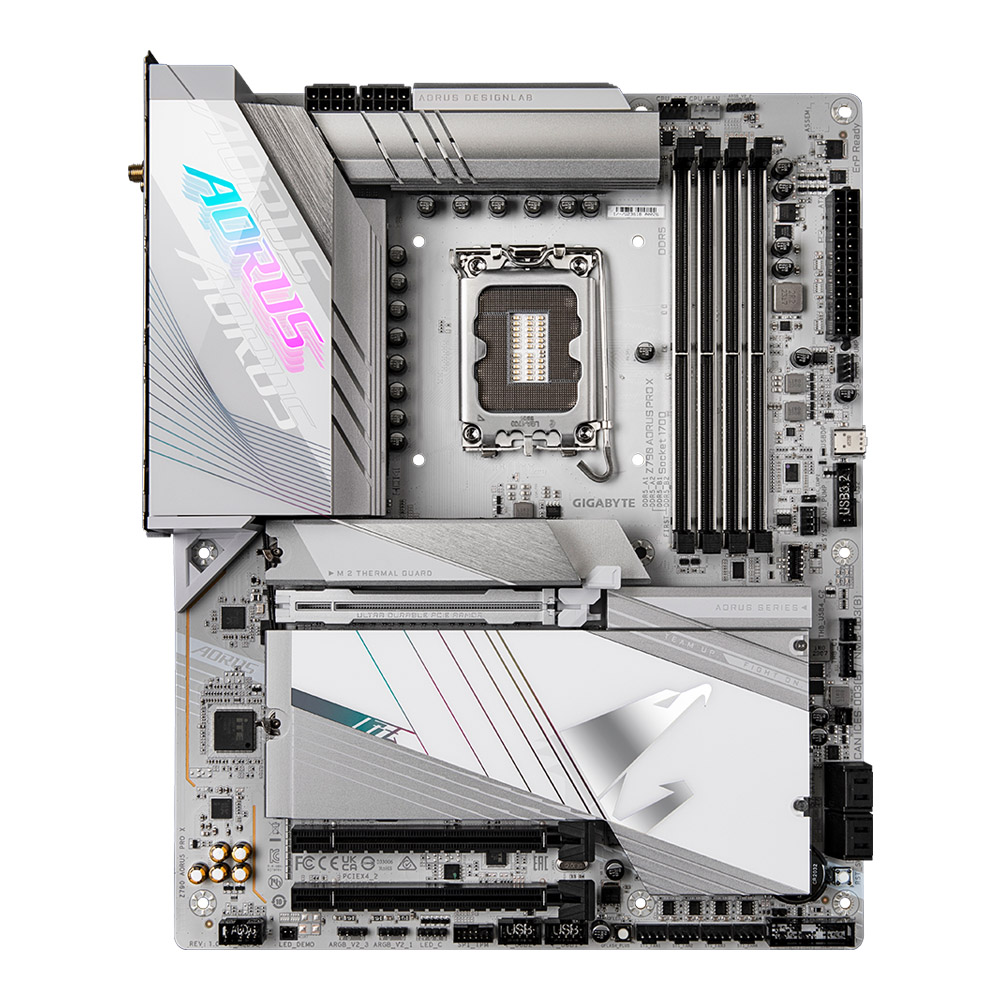

MAINBOARD (1700) GIGABYTE Z790 AORUS PRO X WIFI7 DDR5 (REV. 1.2)

฿15,950.00

  • Support CPU : 14th /13th /12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • From Factor : ATX
  • Chipset : Intel Z790 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 8266(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 5 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • Digital twin 18+1+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with XMP 3.0 memory module support
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • EZ-Latch Plus : M.2 slots with quick release design
  • Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
  • UC BIOS : User-Centred intuitive UX with Quick Access function
  • Efficient Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL
  • High-Res Audio : ALC1220 & Audiophile Grade Capacitors

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

สินค้าหมดแล้ว

รหัสสินค้า: A0156586 หมวดหมู่:

คำอธิบาย

Brand GIGABYTE
Model Z790 AORUS PRO X DDR5 (REV. 1.2)
CPU Support LGA1700 socket : Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.
CPU Brand Intel
Socket 1700
Chipset Intel Z790
Memory Support Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Maximum Memory Bus 8266
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz

* Support for drawing tablets and 20V@3A of power delivery.
* Support for DisplayPort 1.2 version and HDR.

1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video outputs and a maximum resolution of 1920×1080@30 Hz

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU or graphics card support.)
Multi Graphic Support N/A
Audio Realtek® ALC1220-VB CODEC
*The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out
Expansion Slots CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot shares bandwidth with the M2C_CPU connectors.

**The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Maximum PCIe Version PCIe 5.0
Storage CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
– 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
M.2 Storage Type Support NVMe, SATA
M.2 Slot 5
USB Chipset:
– 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 1 x USB Type-C® port onboard, with USB 2.0 support
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors

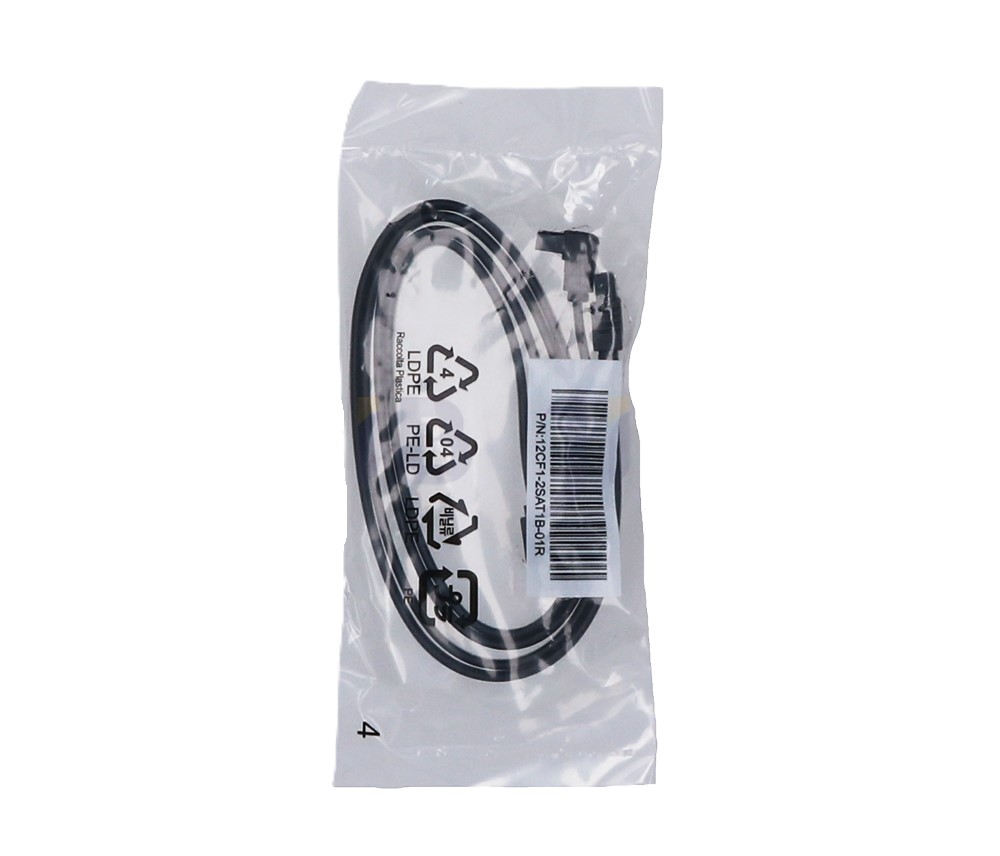

4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port (DisplayPort), with USB 2.0 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper

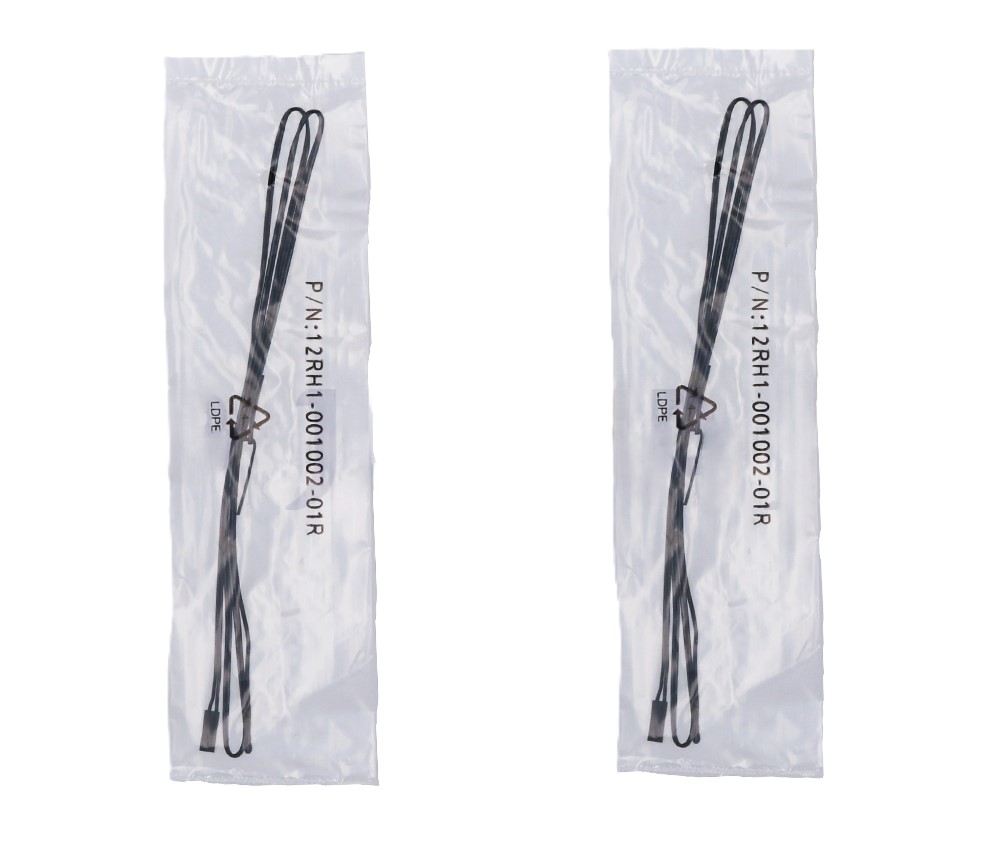

2 x temperature sensor headers
1 x Clear CMOS jumper

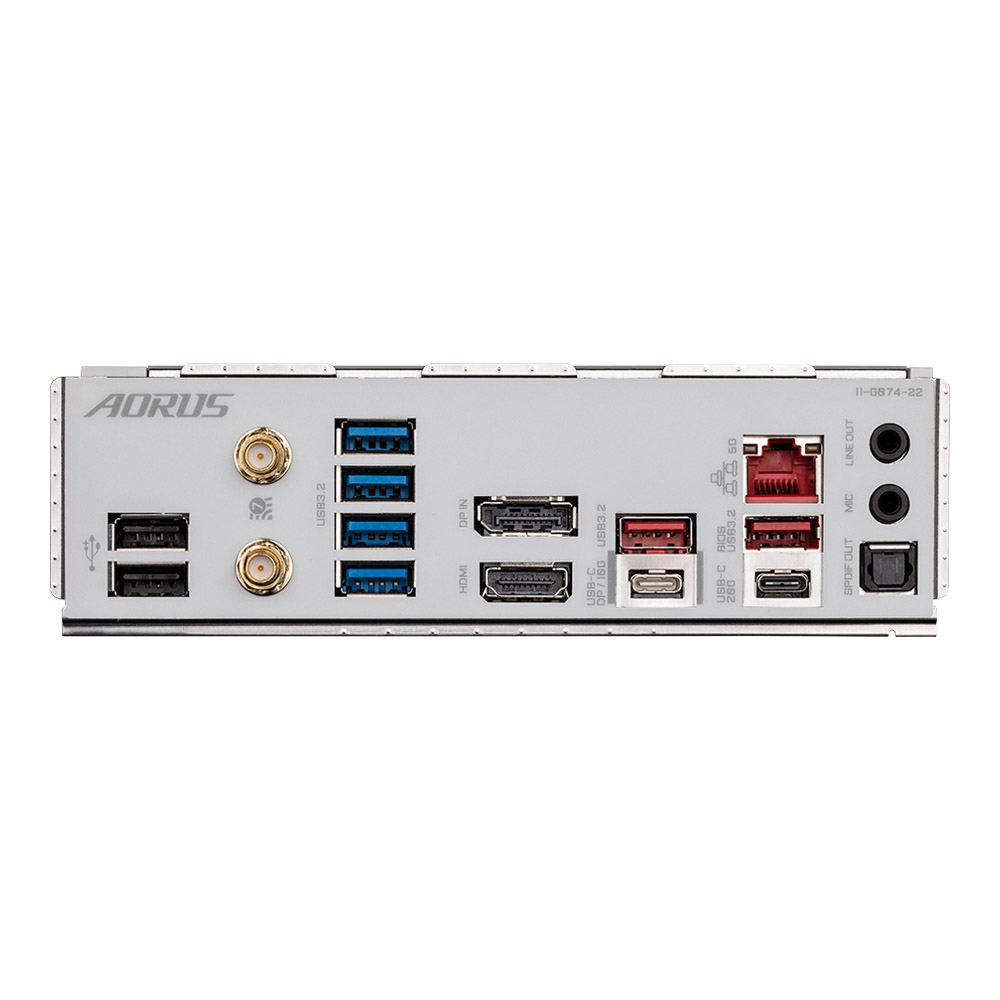

Back Panel Connectors 2 x USB 2.0/1.1 ports

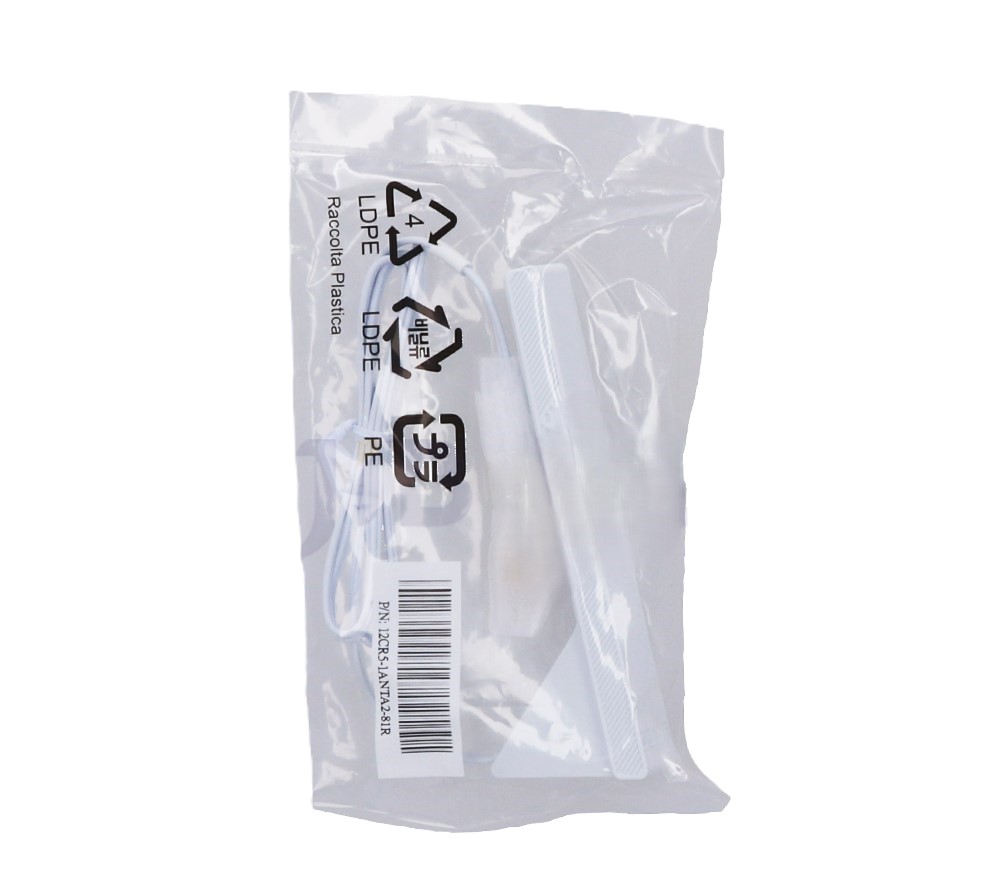

2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
LAN Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network Qualcomm® Wi-Fi 7 QCNCM865 (For PCB rev. 1.2)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.
Form Factor ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 27.00 x 34.00 x 8.00 cm
Gross Weight 2.20 KG
Volume 7,344.00 cm3
