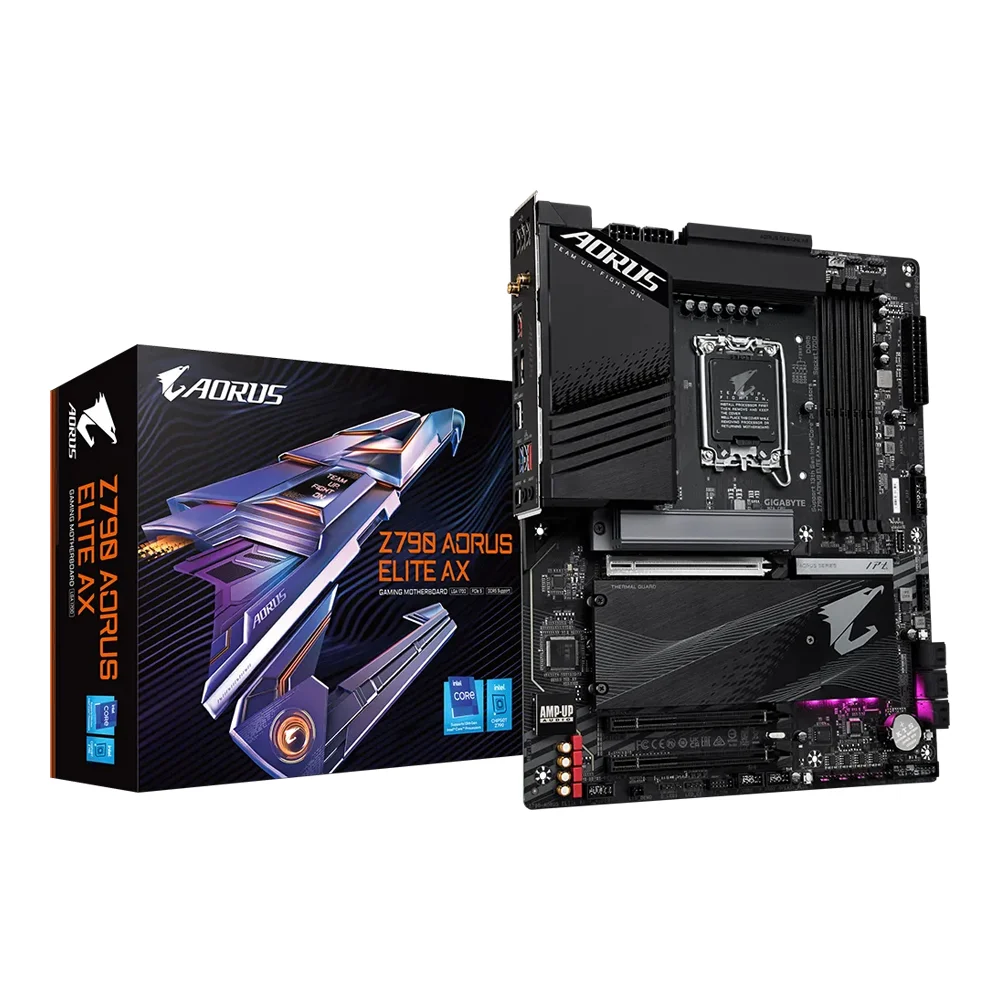

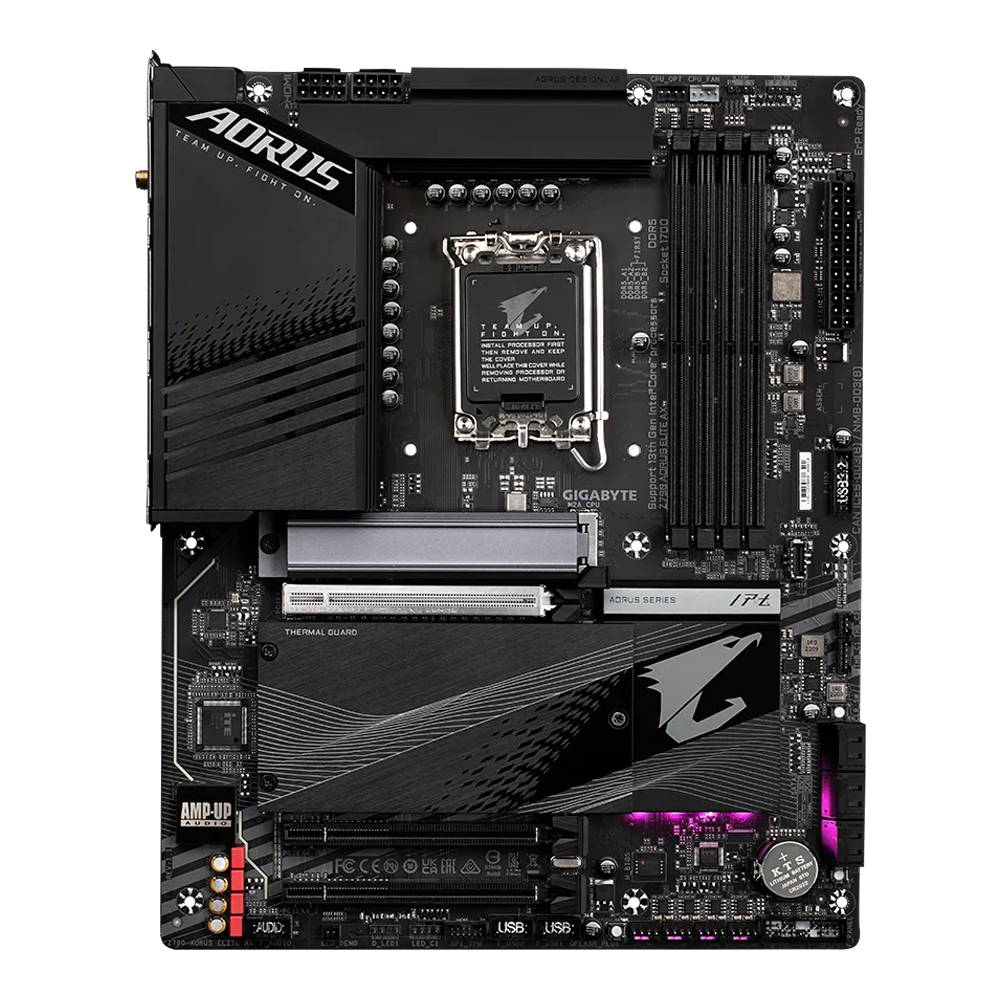

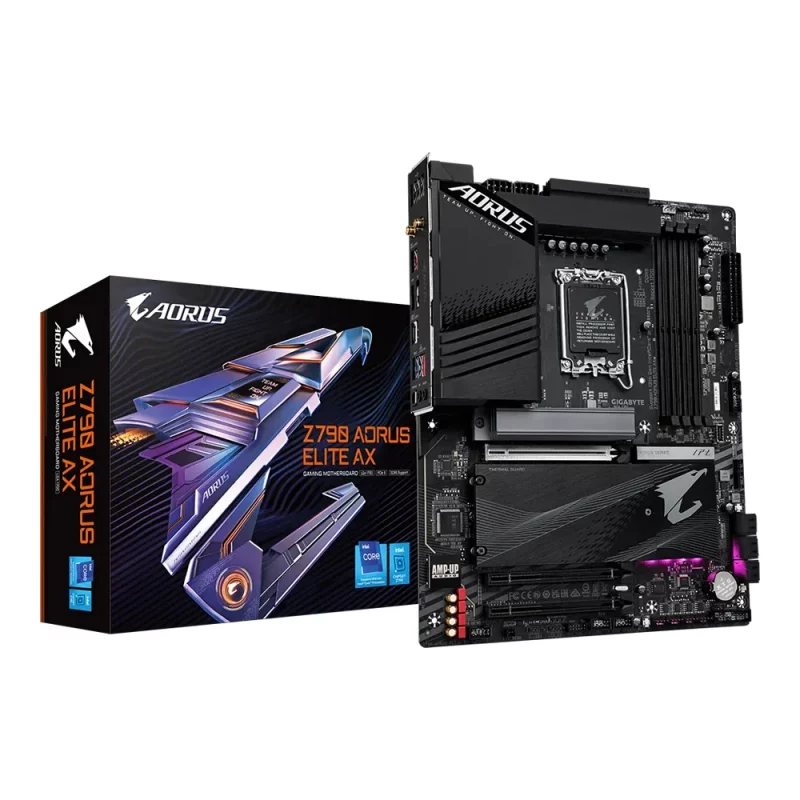

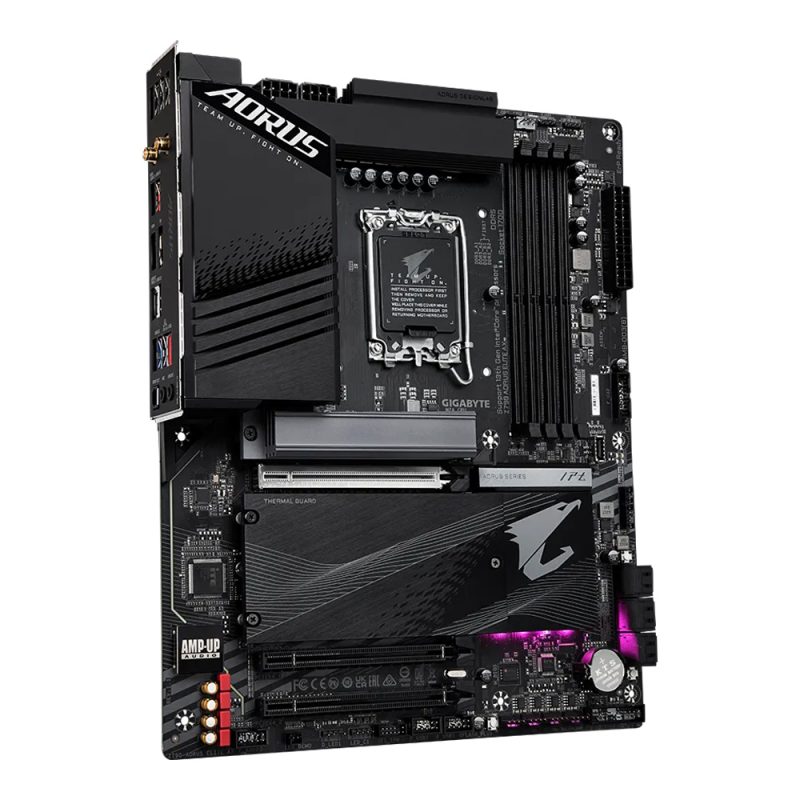

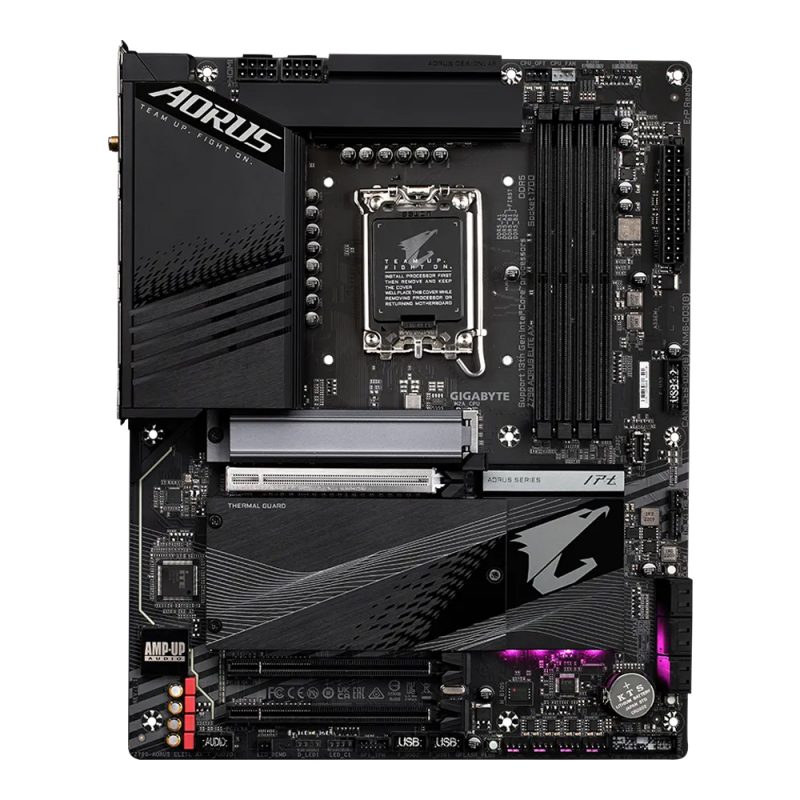

MAINBOARD (1700) GIGABYTE Z790 AORUS ELITE AX DDR5 (REV. 1.1)

฿9,190.00

  • Support CPU : Intel® Socket LGA1700 for 14th / 13th Gen & 12th Gen
  • Chipset : Intel Z790 Chipset
  • FromFactor : ATX
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory supports : up to 7600(O.C.)
  • Memory MAX 128GB
  • M.2 slot : 4 slots
  • SATA III 6G : 6 ports
  • PCIe 5.0×16 : 1 slot
  • Lan port : Realtek® 2.5GbE LAN chip
  • Wireless : Wi-Fi 6E
  • Unparalleled Performance：Twin 16*+2+１ Phases Digital VRM Solution
  • EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

สินค้าหมดแล้ว

รหัสสินค้า: MAINBOARD (1700) GIGABYTE Z790 AORUS ELITE AX DDR5 (REV. 1.1) หมวดหมู่:

คำอธิบาย

Brand GIGABYTE
Model Z790 AORUS ELITE AX DDR5 (rev1.1)
CPU Support
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
CPU Brand Intel
Socket 1700
Chipset Intel Z790
Memory Support Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Maximum Memory Bus 7600(O.C.)
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Multi Graphic Support N/A
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
Expansion Slots

CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Maximum PCIe Version PCIe 5.0
Storage CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
* Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
M.2 Storage Type Support NVMe, SATA
M.2 Slot 4
USB Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 4 x M.2 Socket 3 connectors
  10. 6 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 2 x Thunderbolt™ add-in card connectors
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x reset button
  19. 1 x Q-Flash Plus button
  20. 1 x Clear CMOS button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper

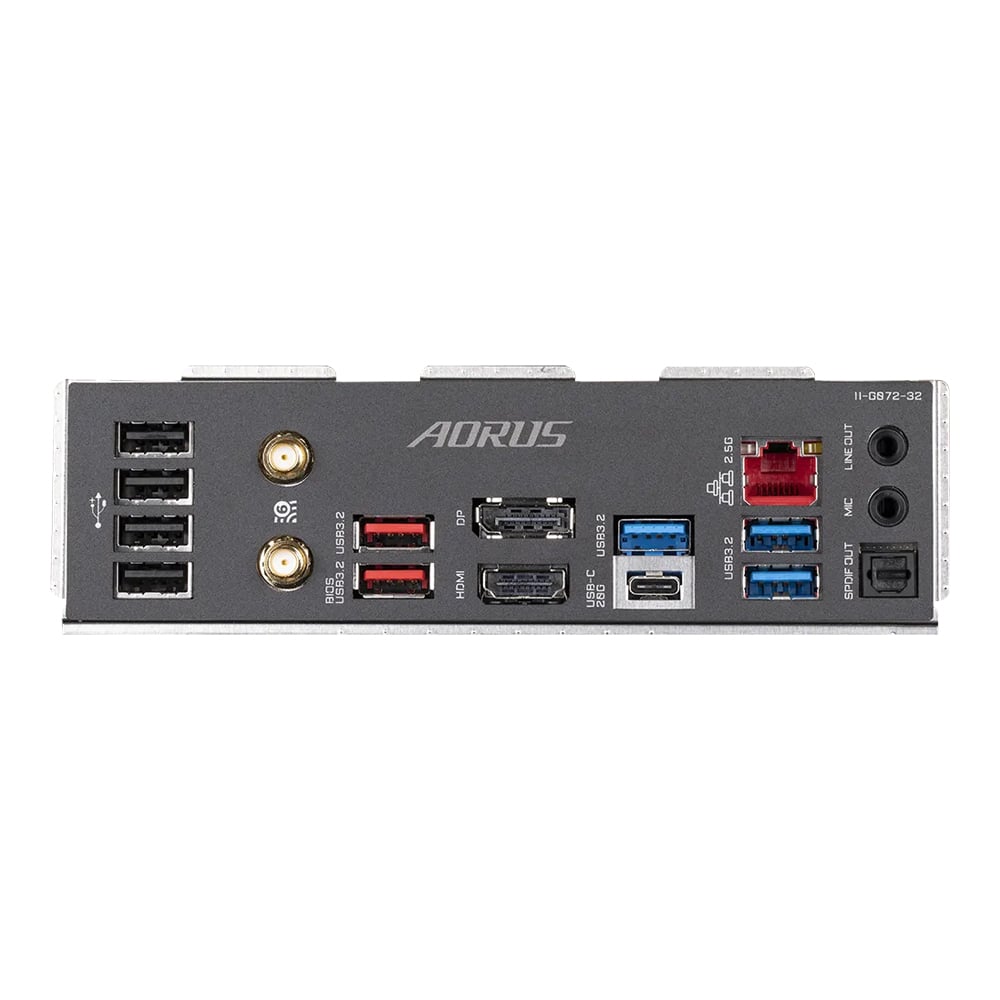

Back Panel Connectors
  1. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red)
  3. 3 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x HDMI 2.0 port
  7. 1 x DisplayPort
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 2 x audio jacks
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network Intel® Wi-Fi 6E AX211

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Form Factor ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 27.00 x 33.50 x 8.00 cm
Gross Weight 2.00 KG
Volume 7,236.00 cm3
