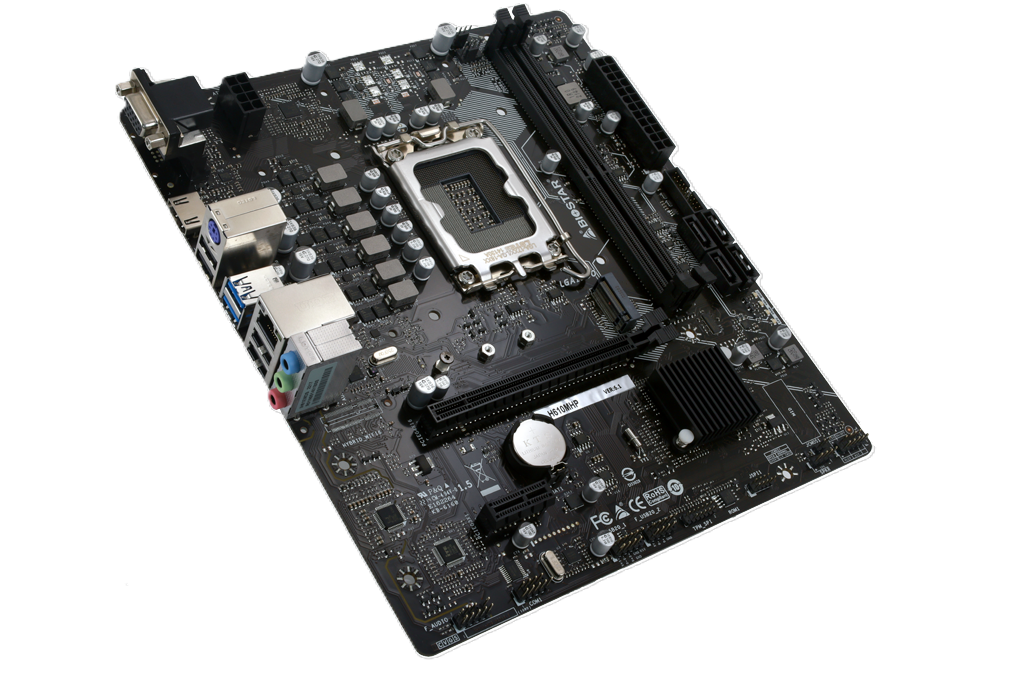

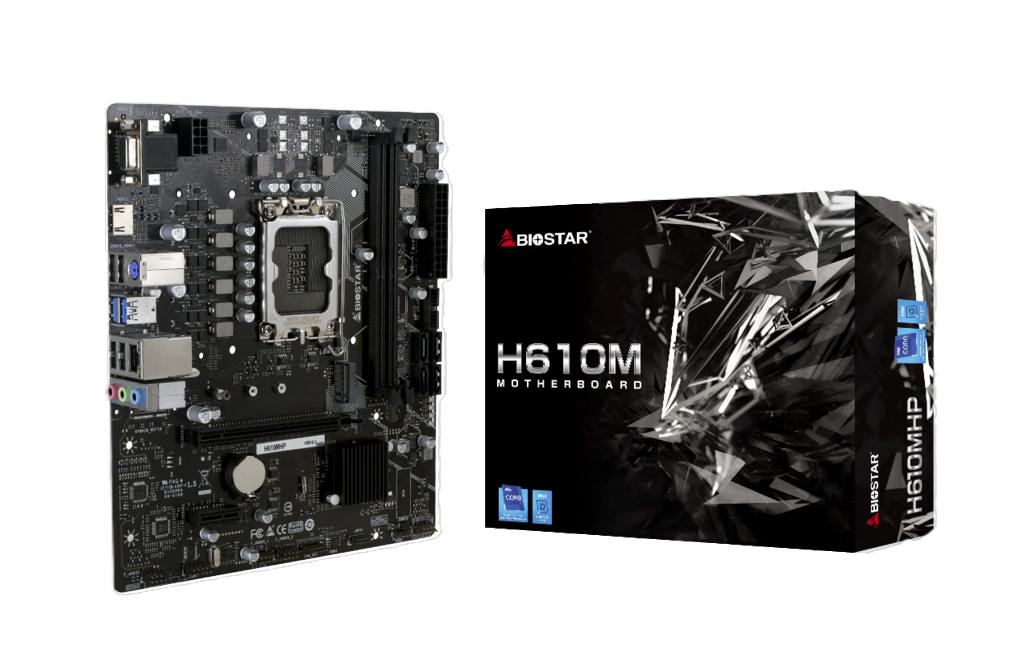

MAINBOARD (1700) BIOSTAR H610MHP DDR4

฿1,990.00

  • Support CPU : 14th /13th /12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • From Factor : Micro ATX
  • Chipset : Intel H610 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 3200
  • Memory MAX : 64GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • Supports HDMI 4K2K
  • Supports USB 3.2 Gen1

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0144778 หมวดหมู่:

คำอธิบาย

Brand BIOSTAR
Model H610MHP 2.0 Ver. 6.0
CPU Support Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

* Please refer to www.biostar.com.tw for CPU support list.
CPU Brand Intel
Socket 1700
Chipset  H610
Memory Support Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules

* Please refer to www.biostar.com.tw for Memory support list.
Maximum Memory Bus 3200
Graphics By CPU model
Supports DX12
Supports HDCP
Multi Graphic Support N/A
Audio ALC897
7.1 Channels, High Definition Audio
Expansion Slots Intel 12th/13th/14th Processors
1 x PCIe 4.0 x16 Slot

Intel H610 Chipset
1 x PCIe 3.0 x1 Slot
Maximum PCIe Version PCIe 4.0
Storage Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset

1 x M.2 (M Key) Socket (M2M_SB):
Supports M.2 Type 2242 /2260 /2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) – NVMe/ AHCI SSD

4 x SATA III Connector (6Gb/s)
M.2 Storage Type Support NVMe
M.2 Slot 1
USB 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
Internal I/O Connectors 4 x SATA III Connector (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header

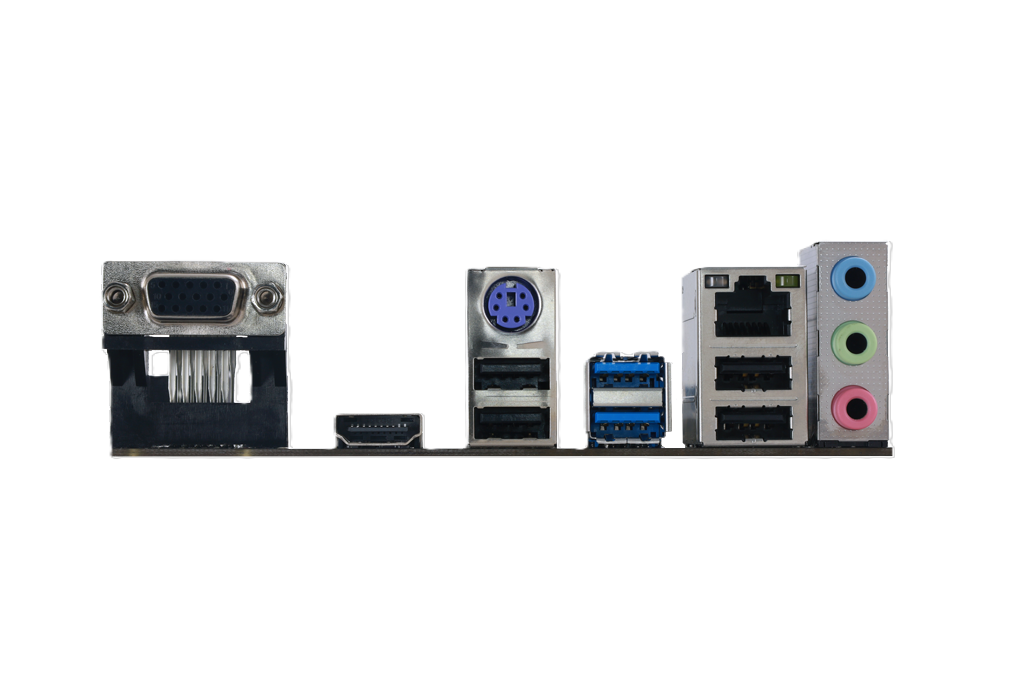

Back Panel Connectors 1 x PS/2 Keyboard/ Mouse Port
1 x HDMI
1 x VGA Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
BIOS N/A
Special Features N/A
Software Features BullGuard
Operating System Support Supports Windows 10 (64bit) / 11(64bit)

*Biostar reserves the right to add or remove support for any OS with or without notice.
Package Contents 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x M.2 Anchor
