คำอธิบาย
| Brand | ASROCK |
| Model | B760 PRO RS |
| CPU Support | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) |
| CPU Brand | Intel |
| Socket | 1700 |
| Chipset | Intel B760 |
| Memory Support | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. |
| Maximum Memory Bus | 7200 |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Multi Graphic Support | Supports AMD CrossFire™ |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: *Supports NVMe SSD as boot disks |
| Maximum PCIe Version | PCIe 5.0 |
| Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: *Supports Intel® Volume Management Device (VMD) |
| M.2 Storage Type Support | NVMe |
| M.2 Slot | 3 |
| USB | 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) 1 x USB 3.2 Gen2 Type-A (Rear) 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection |
| Internal I/O Connectors | 1 x eDP Signal Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) *Support in total up to 12V/3A, 36W LED Strip |

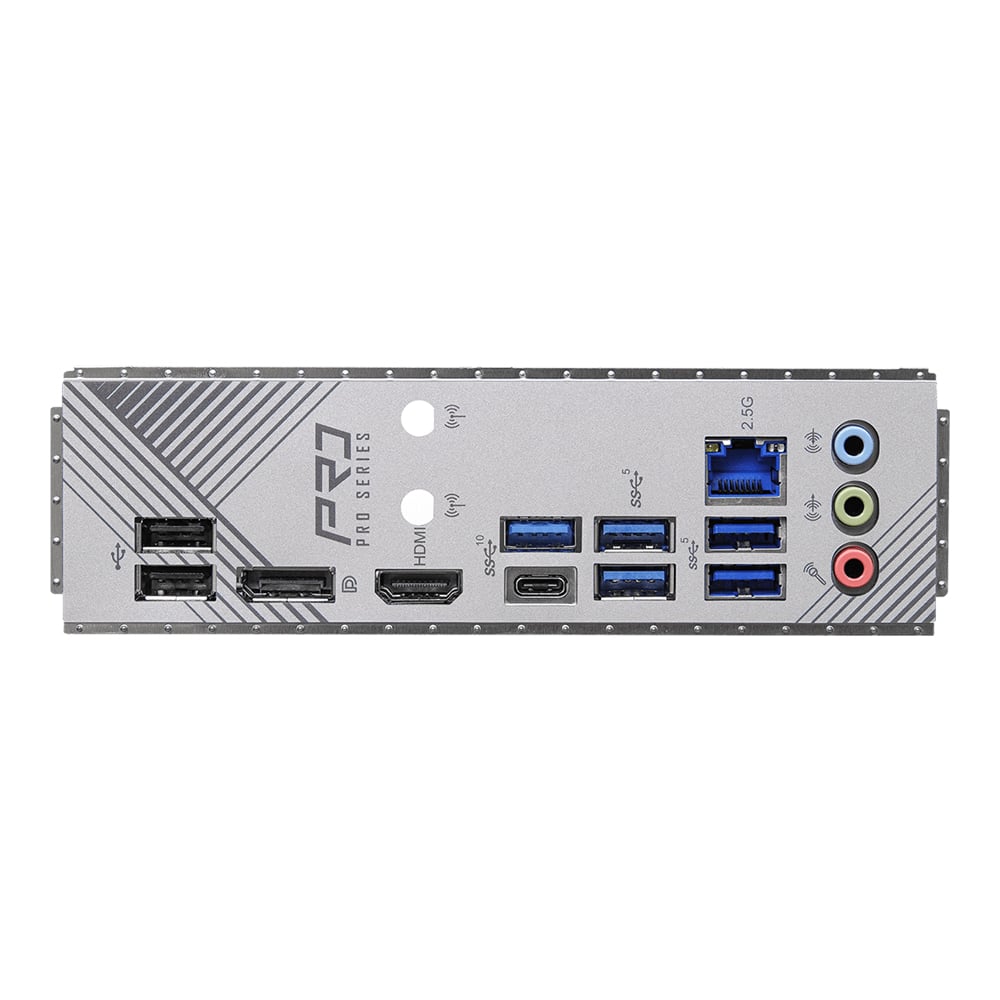

| Back Panel Connectors | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Wireless Data Network | None |
| Form Factor | ATX |
| H/W Monitoring | N/A |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Special Features | Superb Productivity PCIe Gen5 (Graphics) Dual Channel DDR5 Rock-Solid Durability Ultrafast Connectivity EZ Update EZ Troubleshooter |
| Software Features | Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Operating System Support | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Package Contents | 1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
| Package Dimension | (W x D x H) : 29.50 x 36.00 x 7.00 cm |
| Gross Weight | 1.50 KG |
| Volume | 7,434.00 cm3 |
