คำอธิบาย
| Brand | LONGWELL |
| Model | LWC H55-A2C |
| CPU Support | Intel® Core™ i3/i5/i7/Pentium®/Celeron® Processors |
| CPU Brand | Intel |
| Socket | 1156 |
| Chipset | Intel H55 |
| Memory Support | 2 x DIMM Support DDR3-1600/1333/1066 MHz Non-ECC, Un-Buffered Memory
Max 8GB (4GB+4GB) RAM 16 Chip only |
| Maximum Memory Bus | 1600 |
| Graphics | N/A |
| Multi Graphic Support | None |
| Audio | Realtek High Definition Audio Code |
| Expansion Slots | 1 x PCI Express 2.0 x16 (x16 mode) 1 x PCI Express 2.0 x1 |
| Maximum PCIe Version | PCIe 2.0 |
| Storage | 4 x SATA II 3.0Gb/s Connector |
| M.2 Storage Type Support | None |
| M.2 Slot | None |
| USB | N/A |
| Internal I/O Connectors | 1 x 24-pin EATX Power Connector 1 x 4-pin ATX 12V Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 2 x F USB 2.0 Connector 1 x CMOS 1 x Front Panel Audio Connector (AAFP) 1 x Speaker Connector 1 x System Panel Connector |

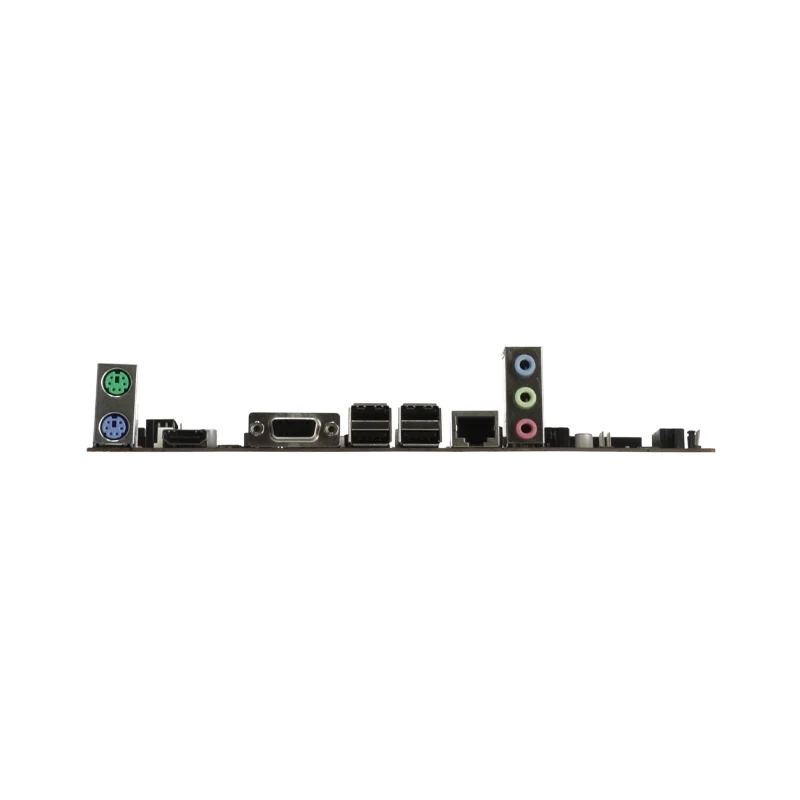

| Back Panel Connectors | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x HDMI Port 1 x VGA (D-Sub) Port 4 x USB 2.0 Port 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED) 3 x Audio Jacks: Line in / Speaker / Microphone |
| LAN | 10/100 Mb/s auto negotiation Half/Full duplex capability |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Microsoft Window XP / Vista / 7 / 8 / 8.1 / 10 |
| Package Contents | N/A |
| Package Dimension | (W x D x H) : 23.00 x 28.00 x 5.50 cm |
| Gross Weight | 0.60 KG |
| Volume | 3,542.00 cm3 |
