คำอธิบาย
| Brand | LONGWELL |
| Model | INTEL P8H61-PLUS |
| CPU Support | Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors |
| CPU Brand | Intel |
| Socket | 1155 |
| Chipset | Intel H61 |
| Memory Support | Dual Channel DDR3 Memory Technology Non-ECC, Un-Buffered Max.capacity up to 16GB Memory |
| Maximum Memory Bus | 1600 |
| Graphics | N/A |
| Multi Graphic Support | N/A |
| Audio | Realtek® High Definition Audio CODEC |
| Expansion Slots | 1 x PCI Express 2.0 x16 (x16 mode) 1 x PCI Express 2.0 x1 1 x PCI |
| Maximum PCIe Version | PCIe 2.0 |
| Storage | 3 x SATA II 3.0Gb/s Connector 1 x SATA III 6.0Gb/s Connector |
| M.2 Storage Type Support | None |
| M.2 Slot | None |
| USB | 4 x USB 2.0 Ports 2 x USB 3.0 Ports 1 x F USB 2.0 Connector 1 x F USB 3.0 Gen1 connectors |
| Internal I/O Connectors | 1 x 24-pin EATX Power Connector 1 x 4-pin ATX 12V Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x F USB 2.0 Connector 1 x F USB 3.0 Gen1 connectors 1 x COM port Connector 1 x CMOS 1 x Front Panel Audio Connector (AAFP) 1 x Speaker Connector 1 x System Panel Connector |

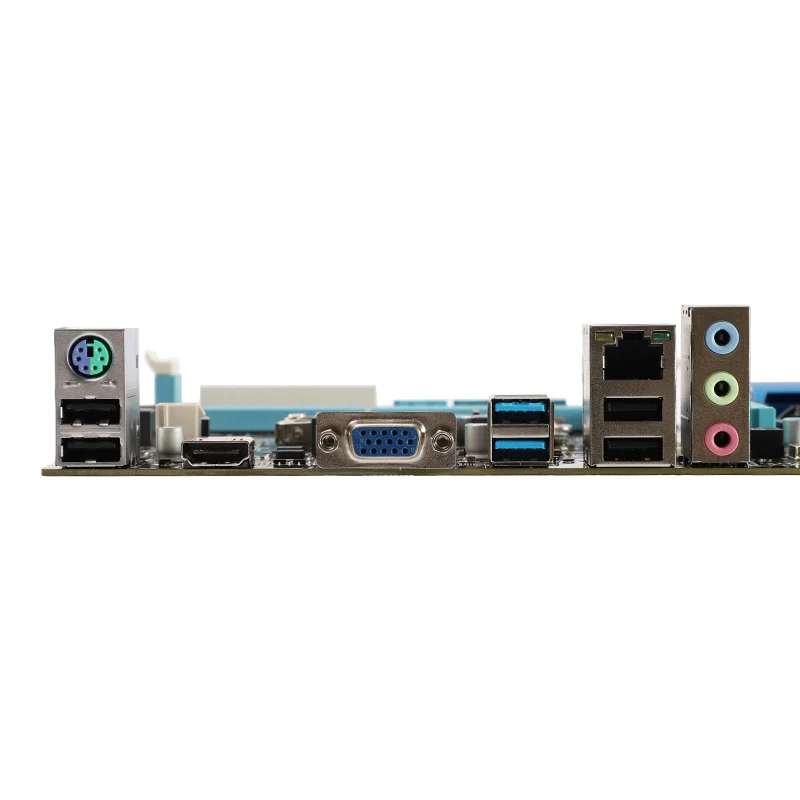

| Back Panel Connectors | 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x VGA (D-Sub) Port 4 x USB 2.0 Ports 2 x USB 3.0 Ports 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 3 x Audio Jacks: Line in / Speaker / Microphone |
| LAN | 10/100/1000 Mb/s Realtek® auto negotiation Half/Full duplex capability |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Microsoft® Window® XP / Vista / 7 / 8 / 10 |
| Package Contents | N/A |
| Dimension | (W x D x H) : 17.00 x 22.50 x 3.70 cm |
| Net Weight | 0.41 KG |
| Package Dimension | (W x D x H) : 24.00 x 28.00 x 6.00 cm |
| Gross Weight | 0.60 KG |
| Volume | 4,032.00 cm3 |
