คำอธิบาย
| Brand | LONGWELL |
| Model | B75-X7 (REV 3.0) |
| CPU Support | Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors |
| CPU Brand | Intel |
| Socket | LGA1155 |
| Chipset | Intel B75 |
| Memory Support | Dual Channel DDR3 Memory Technology 2 x DDR3 DIMM Slots Support DDR3 1600/1333/1066 MHz Non-ECC, Un-Buffered Max.capacity up to 16GB Memory |
| Maximum Memory Bus | 1600 |
| Graphics | N/A |
| Multi Graphic Support | None |
| Audio | Realtek® ALC 662 Channel High Definition Audio CODEC |
| Expansion Slots | 1 x PCI Express 2.0 x16 (x16 mode) |
| Maximum PCIe Version | PCIe 2.0 |
| Storage | 3 x SATA II 3.0Gb/s Connector 1 x SATA III 6.0Gb/s Connector 1 x NVME M.2 |
| M.2 Storage Type Support | NVMe |
| M.2 Slot | 1 |
| USB | 1 x F USB 2.0 Connector 4 x USB 2.0 Ports 2 x USB 3.0 Ports |
| Internal I/O Connectors | 1 x 24-pin EATX Power Connector 1 x 4-pin ATX 12V Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x F USB 2.0 Connector 1 x Front Panel Audio Connector (AAFP) 1 x Speaker Connector |

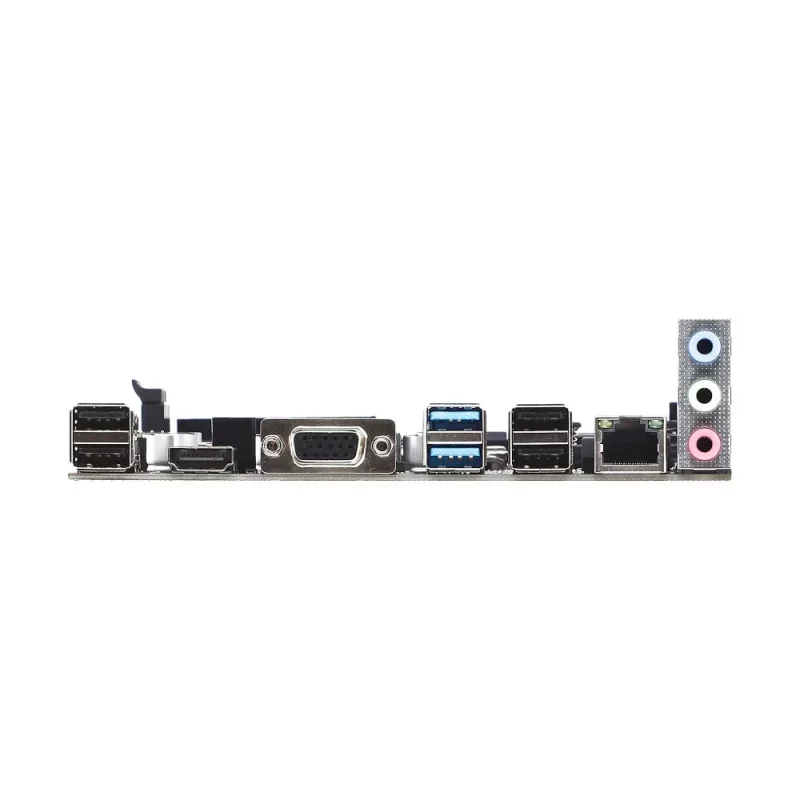

| Back Panel Connectors | 1 x HDMI Port 1 x VGA (D-Sub) Port 4 x USB 2.0 Ports 2 x USB 3.0 Ports 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 3 x Audio Jacks: Line in / Speaker / Microphone |
| LAN | 10/100 Mb/s auto negotiation Half/Full duplex capability Realtek® RTL8105E |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | Smart Fan Mode(Temperature control) |
| Software Features | N/A |
| Operating System Support | Microsoft® Window® XP / Vista / 7 / 8 / 10 |

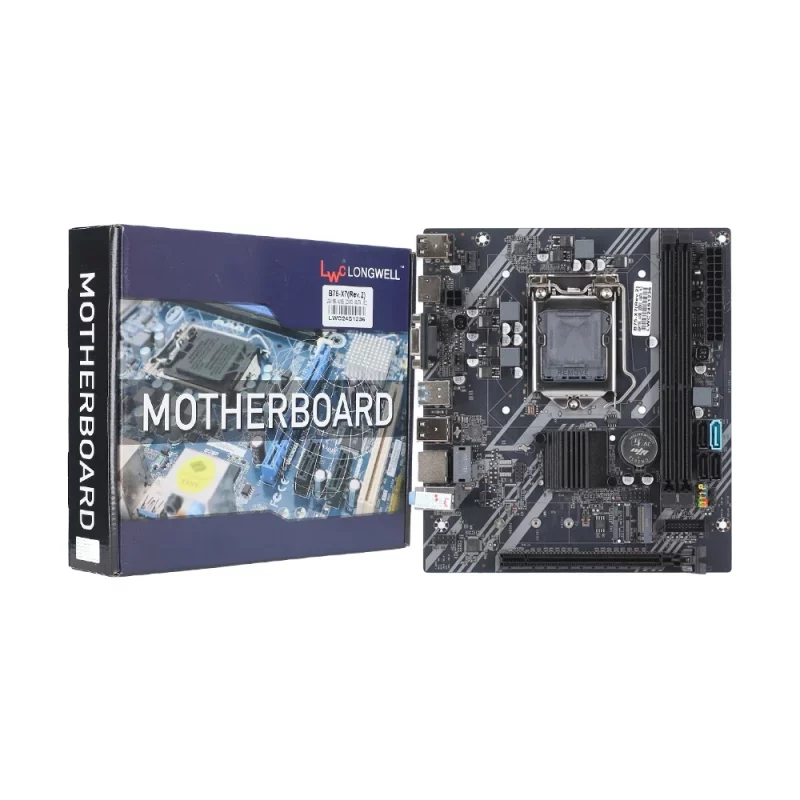

| Package Contents | 1 x SATA cable 1 x I/O Rear Panel 1 x User Manual 1 x CD Driver |
| Package Dimension | (W x D x H) : 23.00 x 28.00 x 5.50 cm |
| Gross Weight | 0.60 KG |
| Volume | 3,542.00 cm3 |
