คำอธิบาย
| Brand | AFOX |
| Model | IH61-MA5-V6 |
| CPU Support | Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts) |
| CPU Brand | Intel |
| Socket | 1155 |
| Chipset | Intel H61 |
| Memory Support | Dual Channel DDR3 1066 / 1333 / 1600MHz 2 x Memory Slots (Max. capacity of system memory 16GB) |
| Maximum Memory Bus | 1600 |
| Graphics | Integrated Graphics Processor |
| Multi Graphic Support | None |
| Audio | Realtek 662 on board, Supports 6-channel audio-out |
| Expansion Slots | 1 x PCI Express x16 slot 1 x PCI Express x1 slot |
| Maximum PCIe Version | PCIe 3.0 |
| Storage | 3 x SATA3 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
| M.2 Storage Type Support | NVMe |
| M.2 Slot | 1 |
| USB | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 2.0s) 6 x USB 2.0 Ports (Back Panel) |
| Internal I/O Connectors | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 2.0s) 1 x Front Panel Audio pinheader 1 x LPC DEBUG |

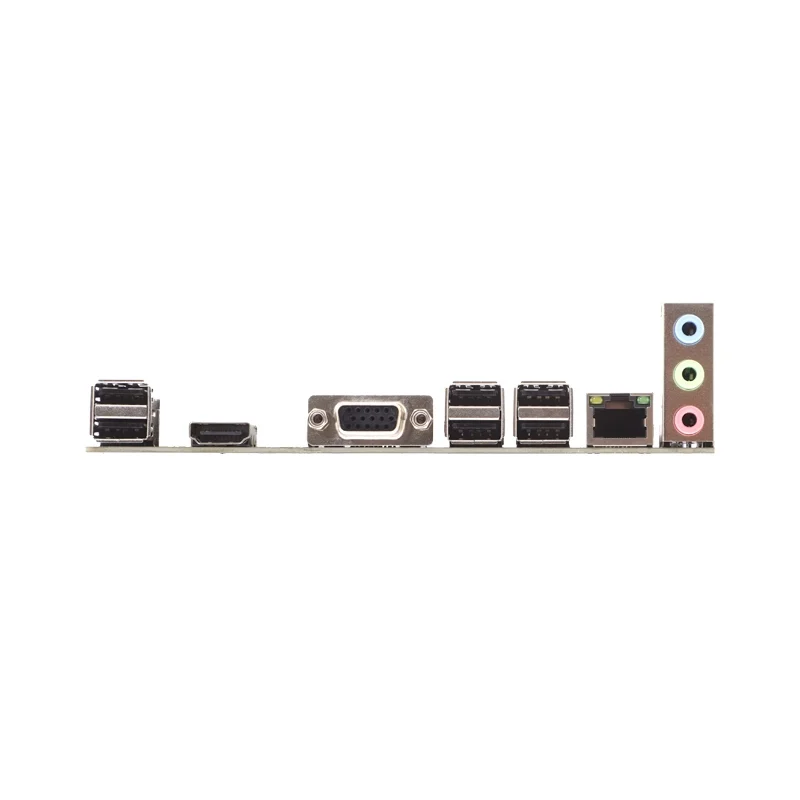

| Back Panel Connectors | 1 x HDMI Port 1 x D-Sub (VGA) Port 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
| LAN | Realtek RTL8111 1000Mbps Ethernet on board |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | UEFI BIOS |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Microsoft Windows 8 compatible |
| Package Contents | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
| Package Dimension | (W x D x H) : 22.50 x 27.50 x 5.50 cm |
| Gross Weight | 0.66 KG |
| Volume | 3,403.13 cm3 |
