คำอธิบาย
| Brand | D-LINK |
| Model | DWR-M905 |
| Standards | 802.11b/g/n |
| Antennas | 2x 3dBi external LTE antennas 2x 5dBi external 2.4G antennas |
| Transmit/Receive | N/A |
| Frequency | SKU1 FDD LTE:B1/3/7/8 TDD 38,40,41 WCDMA:B1/8 |
| Range | N/A |
| Wireless Functions | Advanced Networking Function for Specific Application: Supports Bandwidth Control (QoS) based on different local IP addresses |
| Processor Specs | N/A |
| CPU CORE COUNT | N/A |
| CPU nominal frequency | N/A |
| Size of RAM | N/A |
| LEDS | N/A |

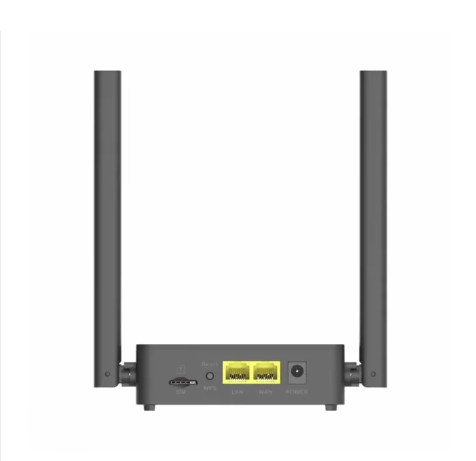

| Interface | 1x 10/100 Fast Ethernet WAN port 1x 10/100 Fast Ethernet LAN ports 1x Reset/WPS button 1x Power jack 2x 3dBi external LTE antennas 2x 5dBi external 2.4G antennas 1x LTE Interface 1x Nano SIM card Slot |
| USB Interface | NONE |
| Button | Reset/WPS button |
| Power Switch | N/A |
| Data Rate | 2.4GHz up to 300Mbps Wi-Fi Data Rates HT20: up to 144 Mbps HT40: up to 300 Mbps |
| Operation Mode | Router, AP, Wireless client, WISP , Repeater mode |
| Management | Easy Installation and Management Web-based UI and Quick Setup Wizard for easy configuratio |
| Firewall | Network Address Translation (NAT) Stateful Packet Inspection (SPI) |
| VPN Support | NONE |
| IPv6 support | YES |
| Features | • WAN fail over • Port forwarding • UPnP • QoS, Bandwidth control • TR-069 remote management • DMZ • IGMP proxy • DHCP server, DHCP client • URL, IP, MAC filter • Virtual server • DDNS • IPv6 • Denial of Service (DoS) protection • ALG: SIP/RSTP/IPsec/PPTP/L2TP • Embedded AP with 4 SSIDs |
| OS compatibility | N/A |
| System Requirements | N/A |
| Power Supply | Input: 100 ~ 240 V Output: 12 V / 1A |
| Power Supply (PoE) | NONE |
| Power Consumption | N/A |
| Environment | Temperature – Operating: 0°C to 40°C – Storage: -40°C to 70 °C Humidity – Operating: 10% to 90% non-condensing – Storage: 5% to 95% non-condensing |
| Certification | CE , FCC |
| Package Contents | N/A |
| Dimension | (W x D x H) : 10.50 x 10.50 x 31.50 cm |
| Net Weight | 0.18 KG |
